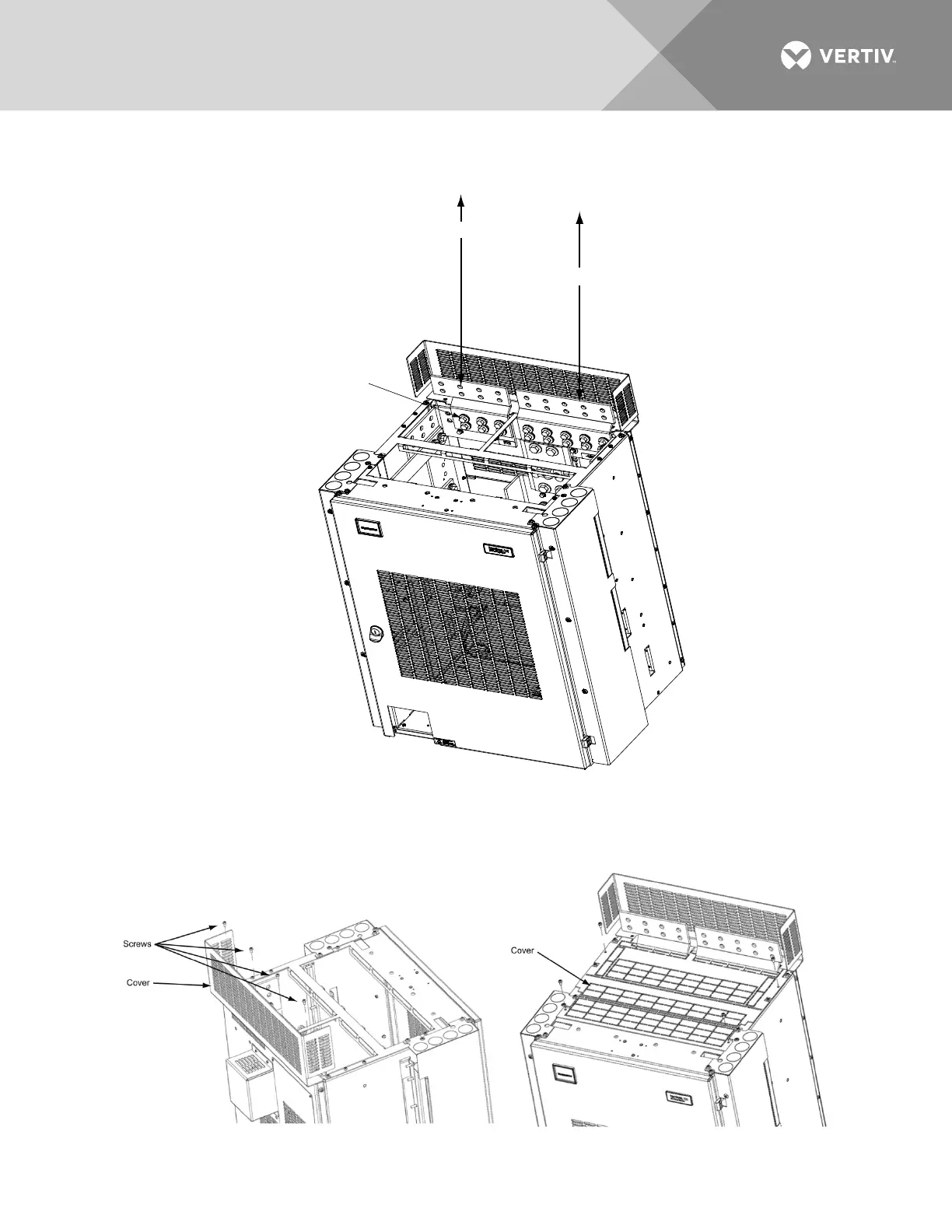

Figure 19: Installing Battery Busbar Extension Kit, Part No. 562364
Figure 20: Mounting the Lexan Cover
Battery
(Return Side)
Busbar
Battery
(Load Side)
Busbar
GND RTN
-48V SUPPLY
List 24 Distribution Cabinet
(List 23 similar)
Front View
1. Apply anti-oxidizing compound
to busbar mating surfaces.
2. Install hardware,
6 places return busbar,
10 places supply busbar.
Assembly Order:
3/8-16 X 1-1/4” Bolt
3/8” Belleville Washer
3/8” Flat Washer
Extension Plate
System Busbar
3. Torque to 180 in-lbs.
