Vertiv NetSure 7100 Series Installation Manual

Vertiv | NetSure 7100 Series -48V DC Power System Installation Manual (IM582127000) | Rev. BB
47

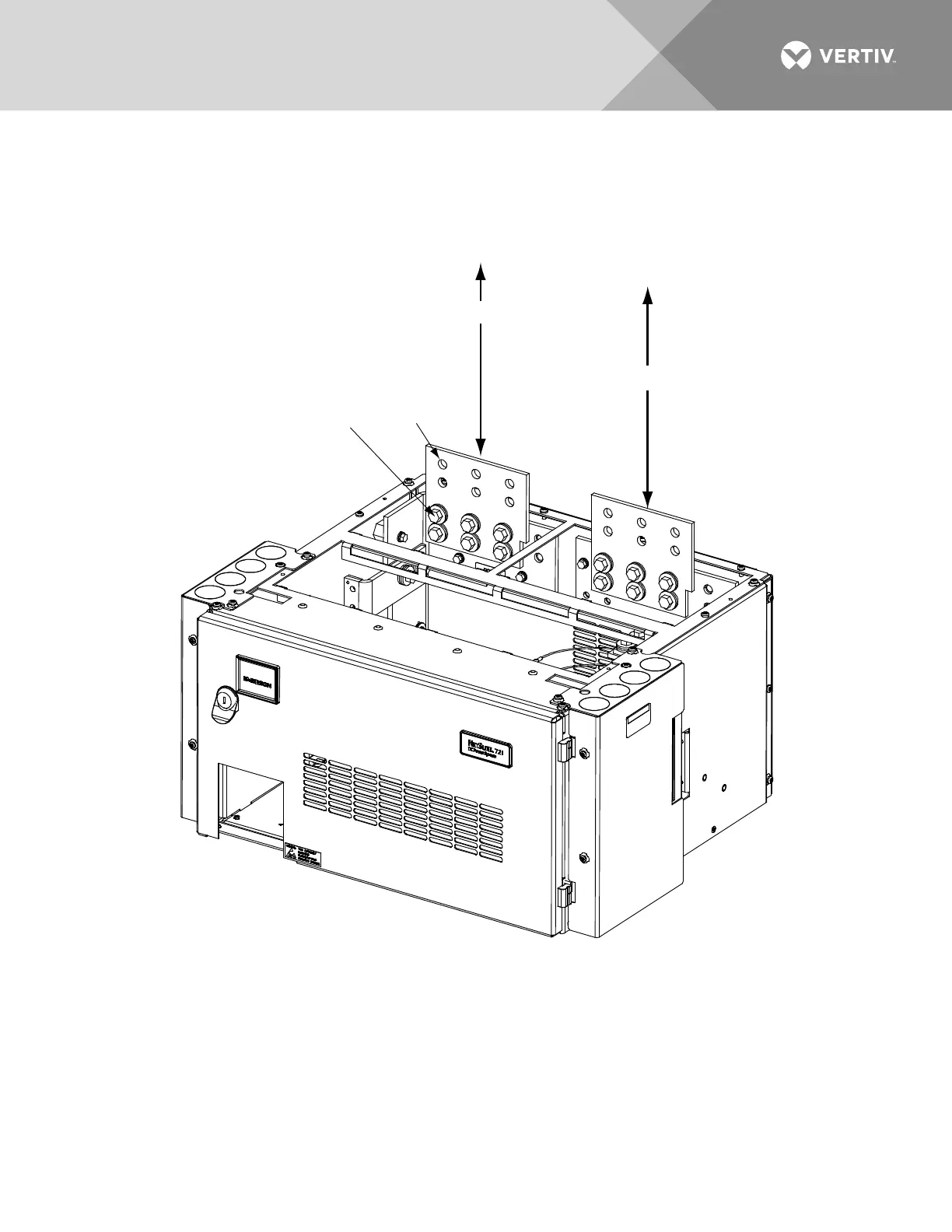

Figure 21: Installing Battery Busbar Extension Kit, Part No. 554541
Front View
(One Row Cabinet
Shown, Others Similar)
Battery
(Return Side)
Busbar
Battery
(Load Side)
Busbar
GND RTN
-48V SUPPLY
1. Apply anti-oxidizing compound
to busbar mating surfaces.
2. Install hardware,
6 places per busbar.
Assembly Order:
3/8-16 X 1-1/4” Bolt
3/8” Belleville Washer
3/8” Flat Washer
Extension Plate
System Busbar
3. Torque to 180 in-lbs.
Central
Office
Ground
