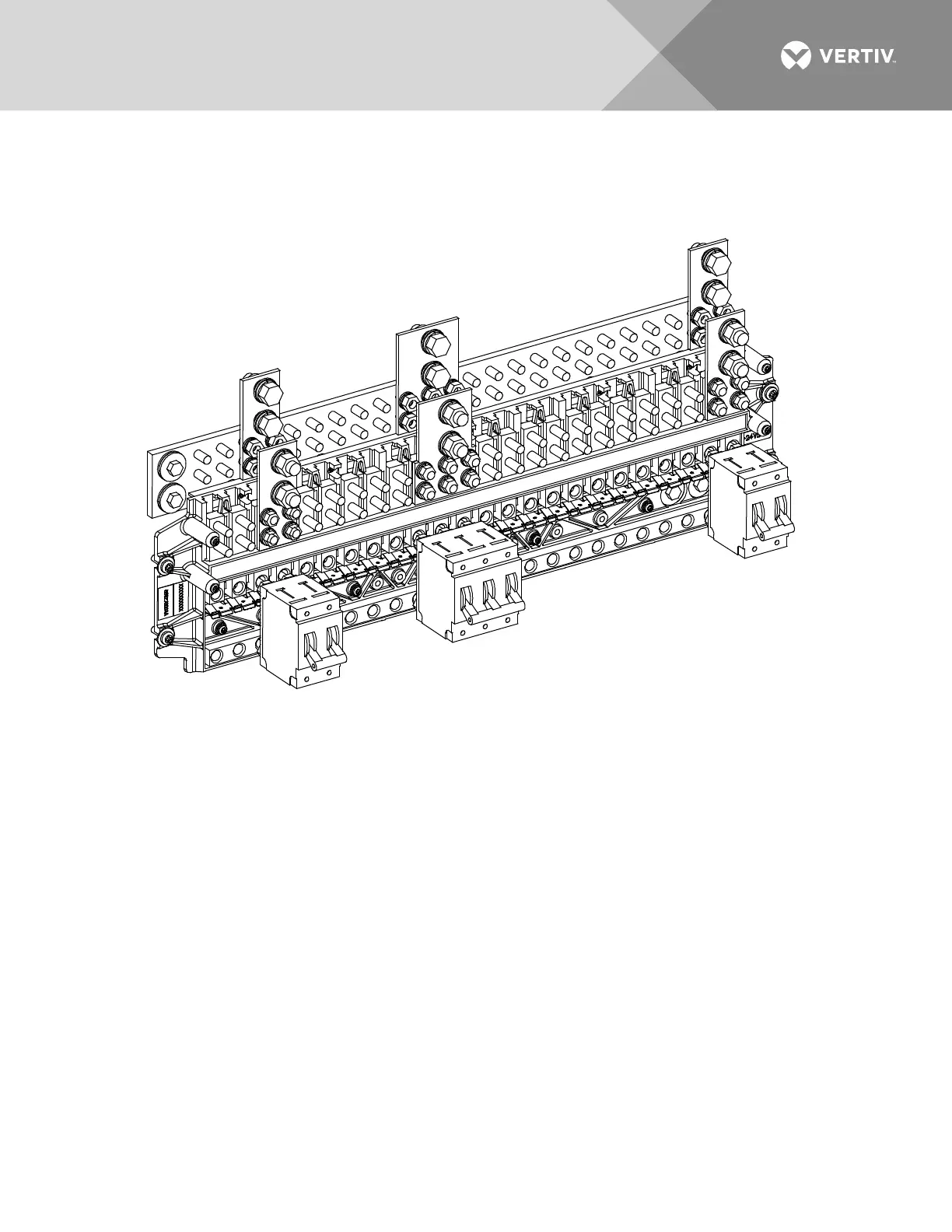

Figure 22: Installing Lug Adapter Busbar Kits
Notes:
Orient busbars as shown.
Shield not shown. Remove breakaway areas from shield
as required. Breakaways are only provided for positions
1-8, 9-12, and 23-24. This restricts 2 and 3-pole breaker
adapter kits to be located in these positions only.
Circuit breaker locations for reference only.
Busbar Adapter
Kit P/N 534449
Busbar Adapter
Kit P/N 514714
Busbar Adapter
Kit P/N 534449
