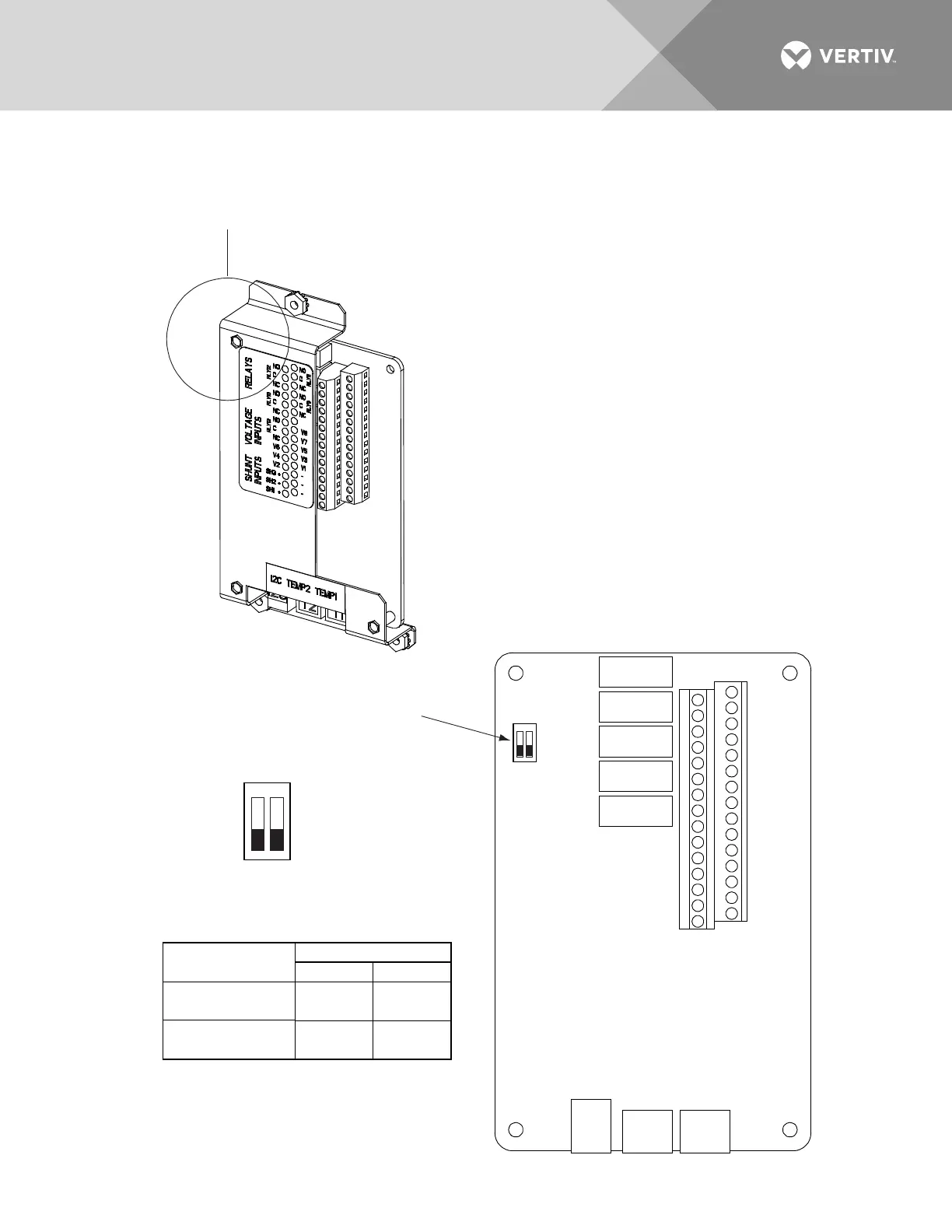

Figure 34: Optional EIB Interface Board Switch Location and Settings (installed in Main Bay only)
SW
1
In this system, switch settings
must be in positions shown.
Optional EIB Interface Board
(Top View)
Switch SW1 is located in
this corner of the EIB Board.
SW1
o
n
off
1
2
ON
OFF
1
2
SW1
Setting
DIP Switch SW1
1 2
OFF OFF
Optional EIB-2
in Main Bay
ON
OFF
EIB-1
in Main Bay
(Refer to table for
Optional EIB switch setting)
