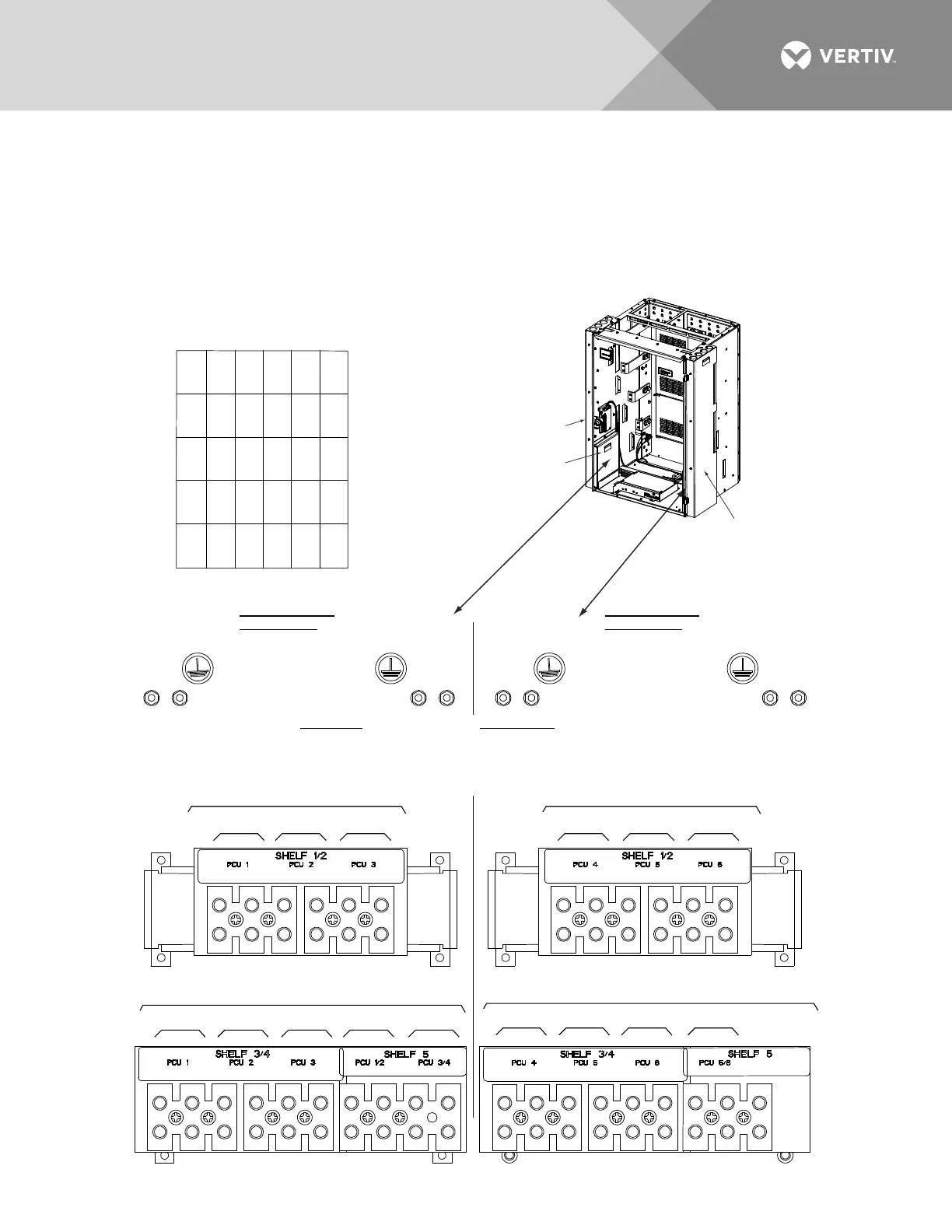

Figure 39: AC Input Connections to AC Input Termination Assembly List 41 when used with 588705000
(Nominal 208 VAC, 240 VAC, 277 VAC) or 588705300 (Nominal 208 VAC, 240 VAC) or 588705400
(Nominal 208 VAC, 240 VAC, 277 VAC) or 588705500 (Nominal 208 VAC, 240 VAC, 277 VAC)
Module Mounting Assemblies with Rectifiers (1 Feed per 2 Rectifiers, Single Phase) - with Five (5)
Shelves Installed (Installed in a Relay Rack) (cont’d on next page)
(4-Row Cabinet Shown,
Others Similar)
Front Door Removed in
Illustration for Clarity
AC INPUT CONNECTIONS,
1 FEED PER 2 RECTIFIERS, SINGLE PHASE
(582127000 LIST 41),
with Five (5) Shelves Installed
Inside View
Left Side
Inside View
Right Side
NOTE:
WIRING TO A FIELD INSTALLED
SHELF IS DONE AT THE REAR
OF THE SHELF.
GND GND GND GND
L2/NL1 L2/NL1 L2/NL1 L2/NL1 L2/NL1 L2/NL1
L2/NL1 L2/NL1 L2/NL1 L2/NL1 L2/NL1 L2/NL1 L2/NL1 L2/NL1 L2/NL1
PCU 1
PCU 2 PCU 3
RECTIFIER (PCU) AC INPUT FEEDS
1 FEED PER 2 RECTIFIERS (PCU)
208 VAC, 240 VAC, 277 VAC, 50 Hz / 60Hz, SINGLE PHASE
SHELVES 1 AND 2
PCU 4
PCU 5 PCU 6
RECTIFIER (PCU) AC INPUT FEEDS
1 FEED PER 2 RECTIFIERS (PCU)
208 VAC, 240 VAC, 277 VAC, 50 Hz / 60Hz, SINGLE PHASE
SHELVES 1 AND 2
AC Wireway
Cover
AC Wireway
Cover
AC Input
Connector Cover
FRAME GROUND
CONNECTION
Four 10-32 X 3/4"
Studs and Hardware.
Recommended torque:
23 in-lbs.
FRAME GROUND
CONNECTION
Four 10-32 X 3/4"
Studs and Hardware.
Recommended torque:
23 in-lbs.
Line to Line:
Connect Line 1 to Terminal L1.
Connect Line 2 to Terminal L2/N.
Line to Neutral
Connect Line to Terminal L1.
Connect Neutral to Terminal L2/N.
Wire Size Capacity: 6-14 AWG.
Recommended Torque: 18 in-lbs.
RECTIFIER (PCU) AC INPUT FEEDS
1 FEED PER 2 RECTIFIERS (PCU)
208 VAC, 240 VAC, 277 VAC, 50 Hz / 60Hz, SINGLE PHASE
SHELVES 3 AND 4 SHELF 5
RECTIFIER (PCU) AC INPUT FEEDS
1 FEED PER 2 RECTIFIERS (PCU)
208 VAC, 240 VAC, 277 VAC, 50 Hz / 60Hz, SINGLE PHASE
SHELF 5SHELVES 3 AND 4
PCU 1 PCU 2 PCU 3
PCU 4 PCU 5
PCU 6
PCU 1/2 PCU 3/4
PCU 5/6
Rectifier Module (PCU) Mounting Slots
Shelf #1
Rect.
(PCU)
1
Rect.
(PCU)
2
Rect.
(PCU)
3
Rect.
(PCU)
4
Rect.
(PCU)
5
Rect.
(PCU)
6
Rect.
(PCU)
1
Rect.
(PCU)
2
Rect.
(PCU)
3
Rect.
(PCU)
4
Rect.
(PCU)
5
Rect.
(PCU)
6
Rect.
(PCU)
1
Rect.
(PCU)
2
Rect.
(PCU)
3
Rect.
(PCU)
4
Rect.
(PCU)
5
Rect.
(PCU)
6
Rect.
(PCU)
1
Rect.
(PCU)
2
Rect.
(PCU)
3
Rect.
(PCU)
4
Rect.
(PCU)
5
Rect.
(PCU)
6
Rect.
(PCU)
1
Rect.
(PCU)
2
Rect.
(PCU)
3
Rect.
(PCU)
4
Rect.
(PCU)
5
Rect.
(PCU)
6
Shelf #2
Shelf #3
Shelf #4
Shelf #5
L2/NL1 L2/NL1 L2/NL1 L2/NL1 L2/NL1 L2/NL1
L2/NL1 L2/NL1 L2/NL1 L2/NL1
L2/NL1 L2/NL1 L2/NL1
L2/NL1 L2/NL1
