7-10 Printer Dimensions Rev AA
Videojet DataFlex 6420 Operator Manual

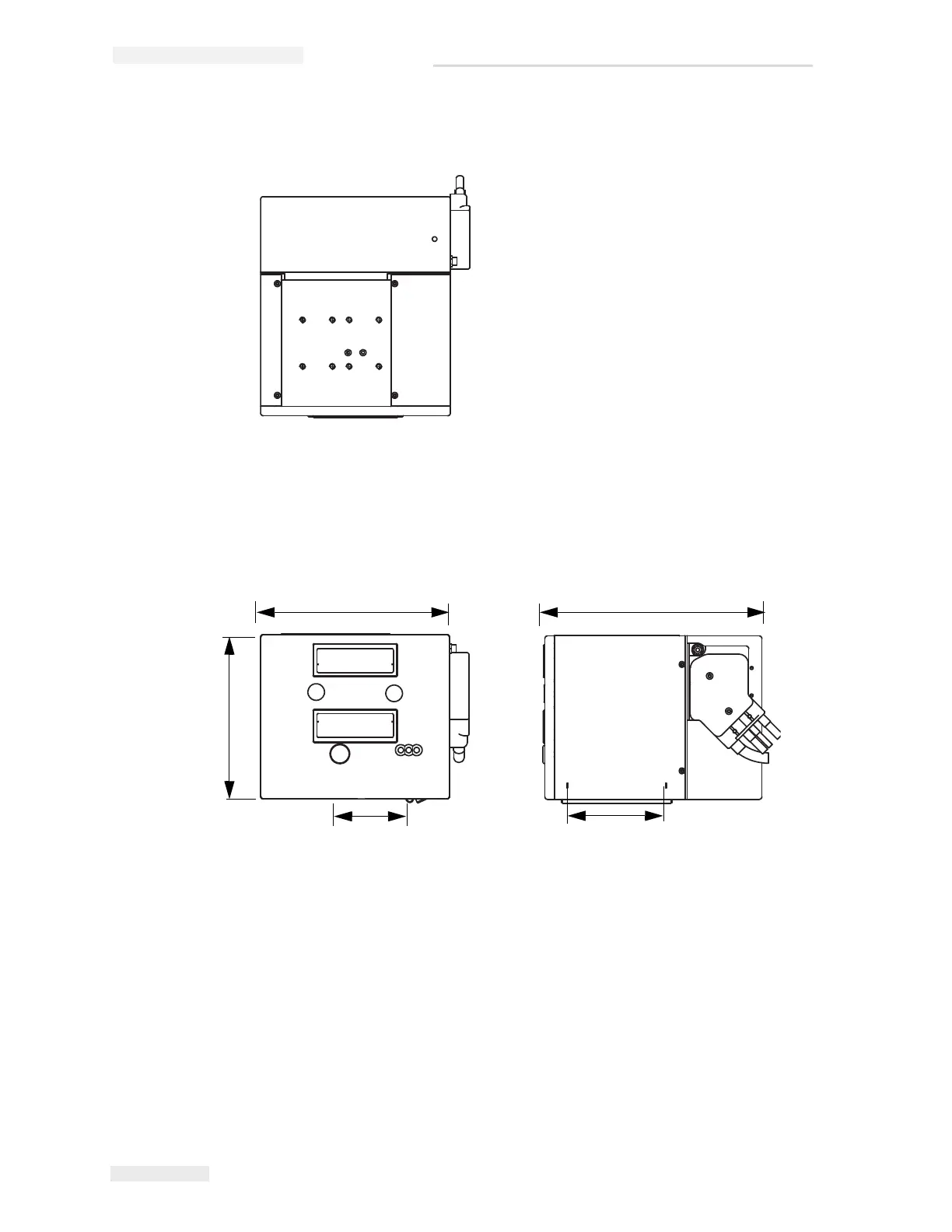

Figure 7-4 shows the dimensions of the 107 mm (LH) printer.
204 mm
236 mm
178 mm
71 mm Printhead Stoke
107 mm Printable Area
Figure 7-4: Videojet DataFlex 6420 107 mm LH Printer Dimensions
(8.03 inches)
(7.0 inches)
(9.29 inches)
