Rev AA Printer Dimensions 7-9
Videojet DataFlex 6420 Operator Manual

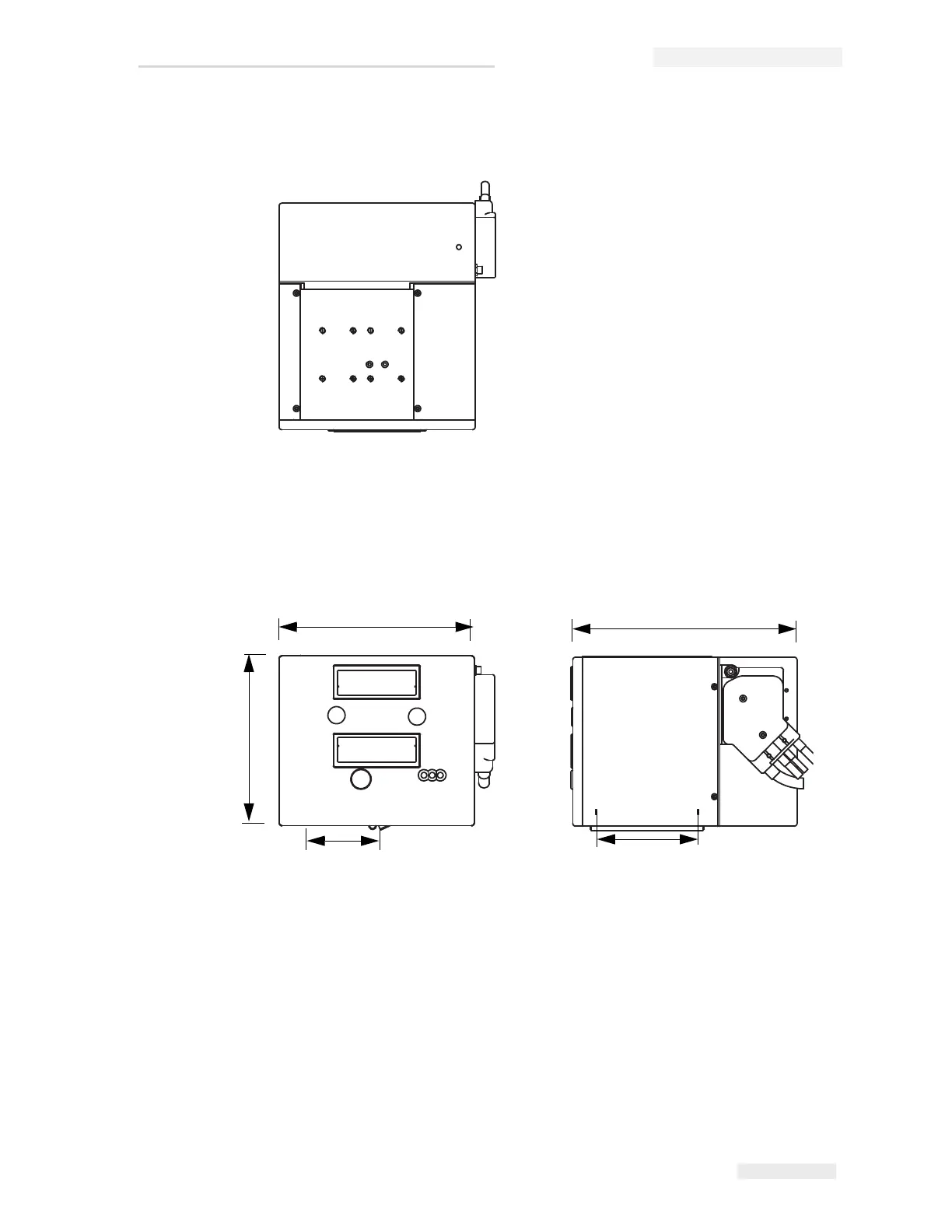

Figure 7-3 shows the dimensions of the 107 mm (RH) printer.
Figure 7-3: Videojet DataFlex 6420 107 mm RH Printer Dimensions
204 mm
236 mm
178 mm
75 mm Printhead Stoke
107 mm Printable Area
(8.03 inches)
(7.0 inches)
(9.29 inches)
