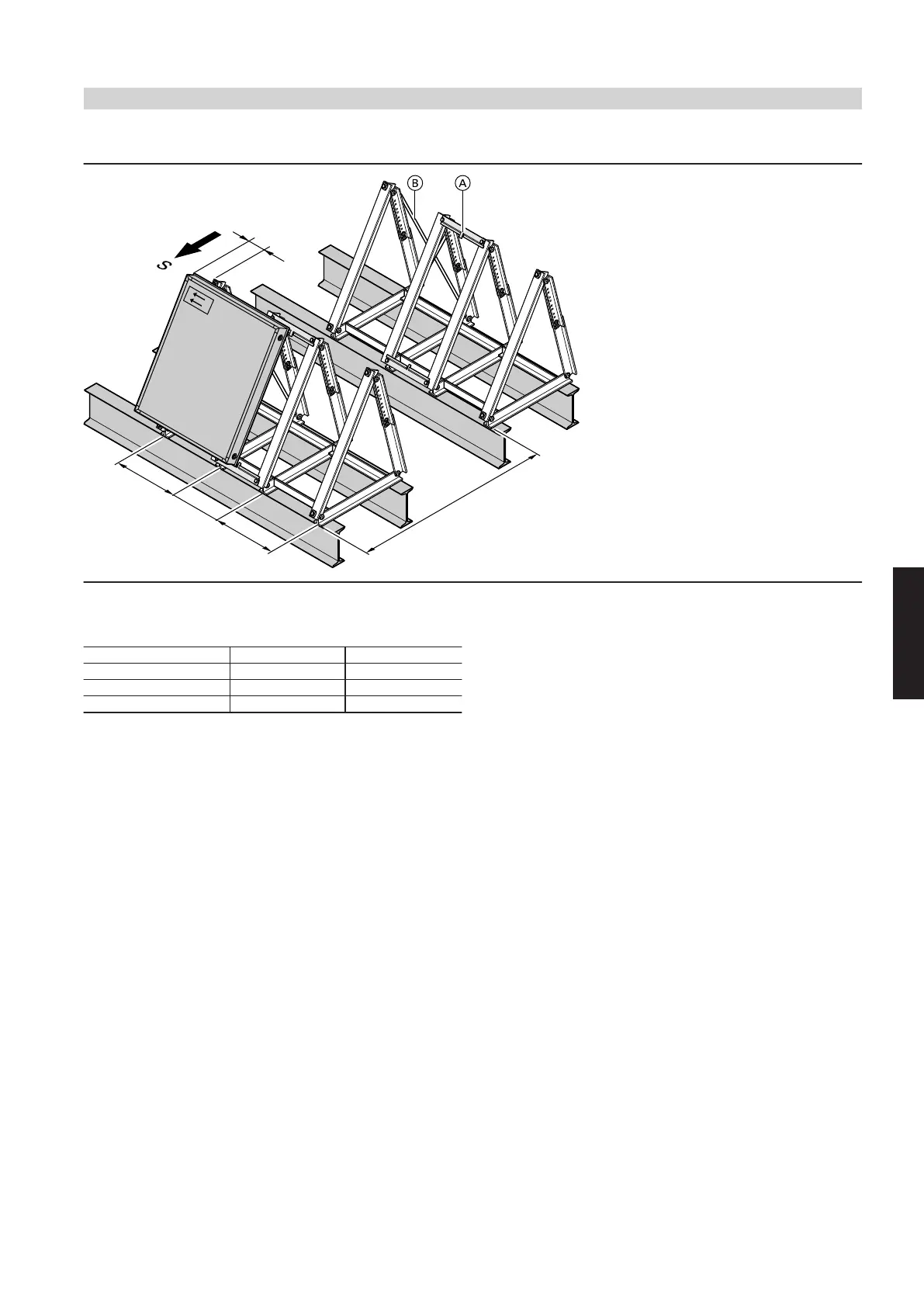

Type SV and SH — installation on an on-site substructure, e.g. steel beams
x
y
x
z
230
A
Joining plate
B
Cross brace
Type SV SH
x in mm 595 1920
y in mm 481 481
z in mm See page 108. See page 108.
Design information regarding flat roof installation
(cont.)
