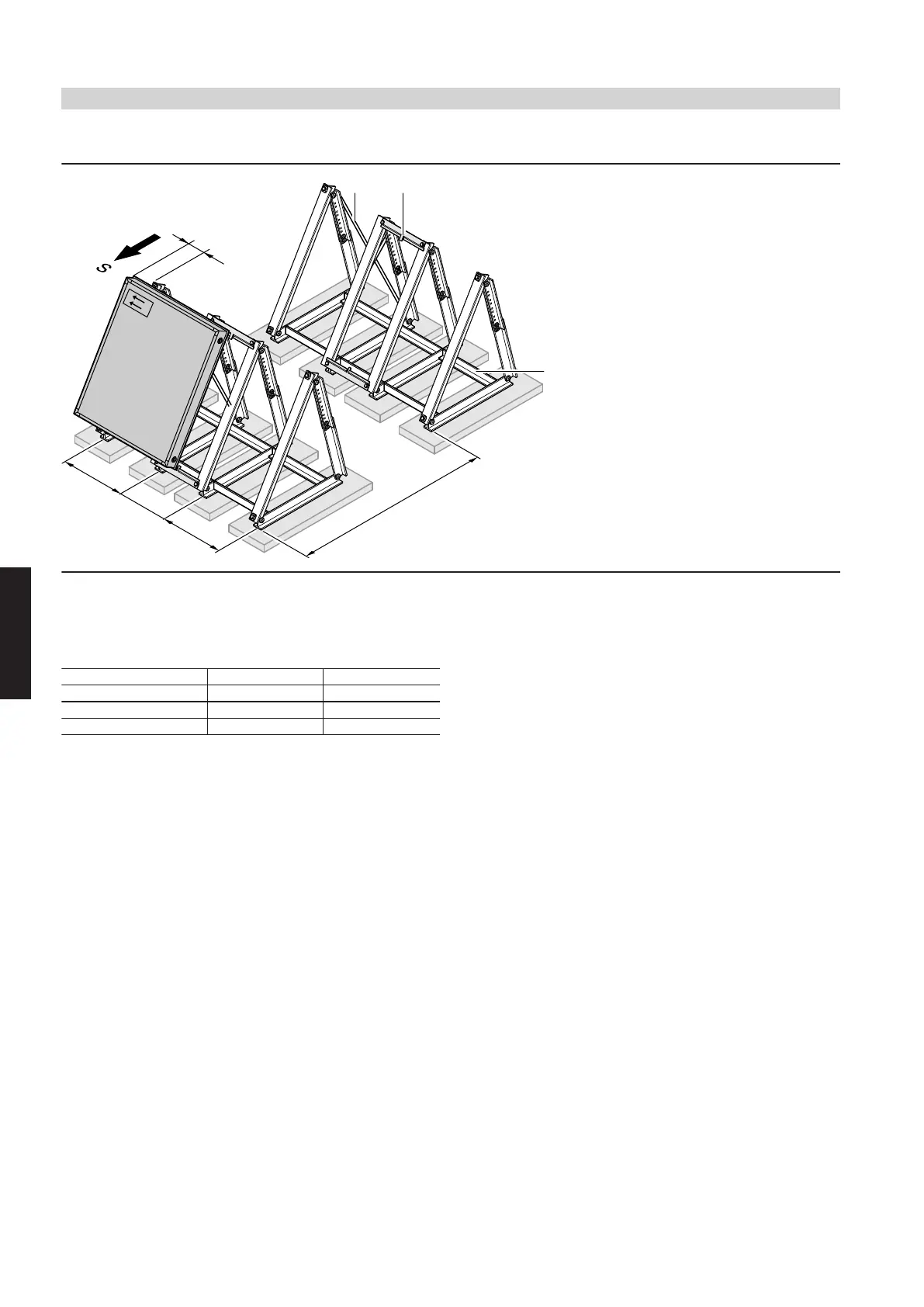

Type SV and SH — installation on concrete slabs
x
y
x
z
230
A
C
B
A
Joining plate
B
Cross brace
C
Support rail (only on roofs with gravel ballast layer)
Type SV SH
x in mm 595 1920
y in mm 481 481
z in mm See page 108. See page 108.
Design information regarding flat roof installation
(cont.)
