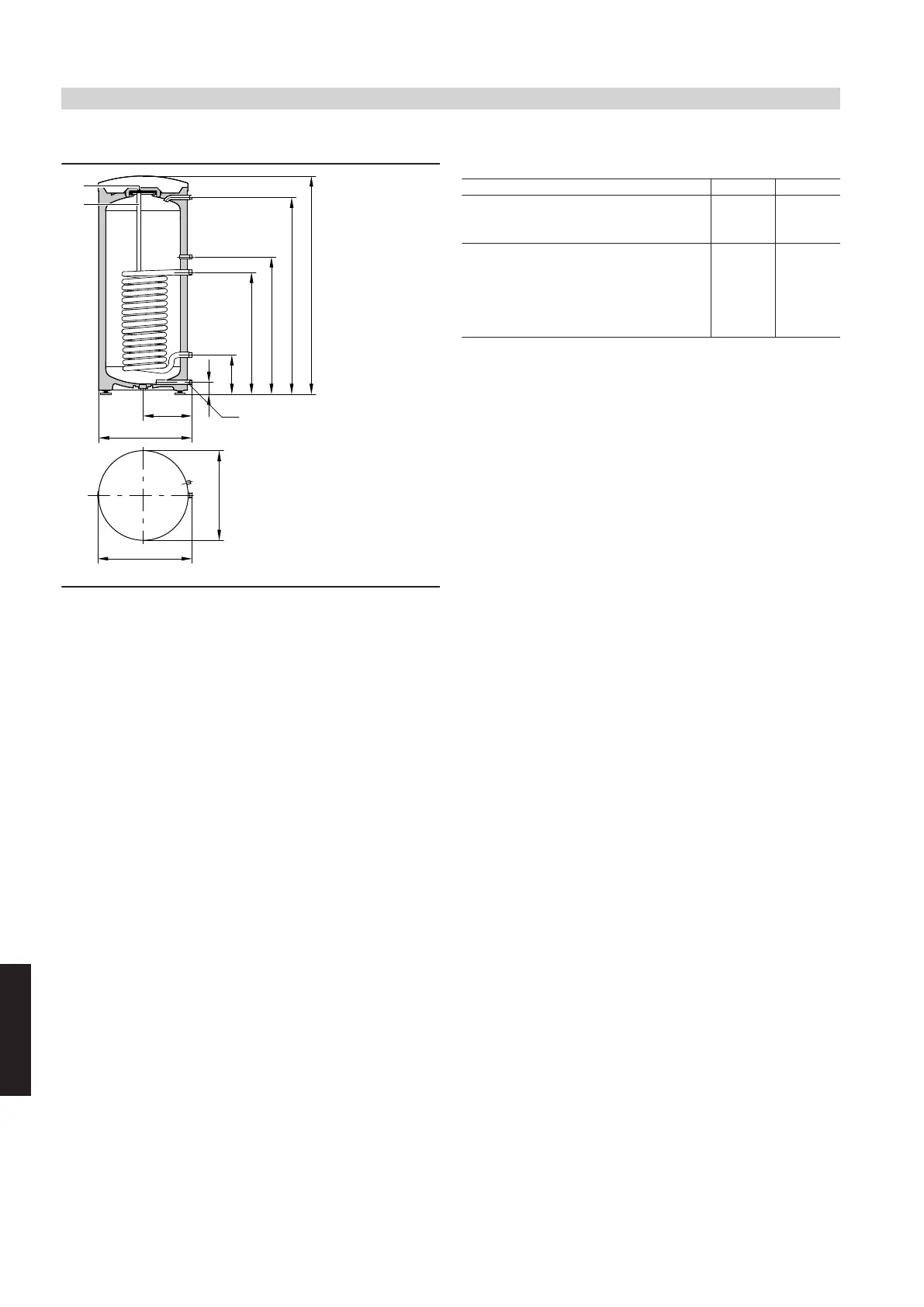

Vitocell 100-V, type CVA / CVAA-A, 160 and 200 l capacity
SPR
b
a
c
d
e
f
g
h
k
b
VA
WW
Z
HV/SPR
HR
BÖ
KW/E
BÖ Inspection and cleaning aperture
E Drain
HR Heating water return
HV Heating water flow
KW Cold water
SPR Cylinder temperature sensor of the cylinder temperature con-
troller or temperature controller (internal sensor well diameter
16 mm)
VA Protective magnesium anode
WW DHW
Z DHW circulation
Dimensions
Cylinder capacity l 160 200
Length (7)
a mm 581 581
Width b mm 605 605
Height c mm 1189 1409
d mm 1050 1270
e mm 884 884
f mm 634 634
g mm 249 249
h mm 72 72
k mm 317 317
DHW cylinders
(cont.)
