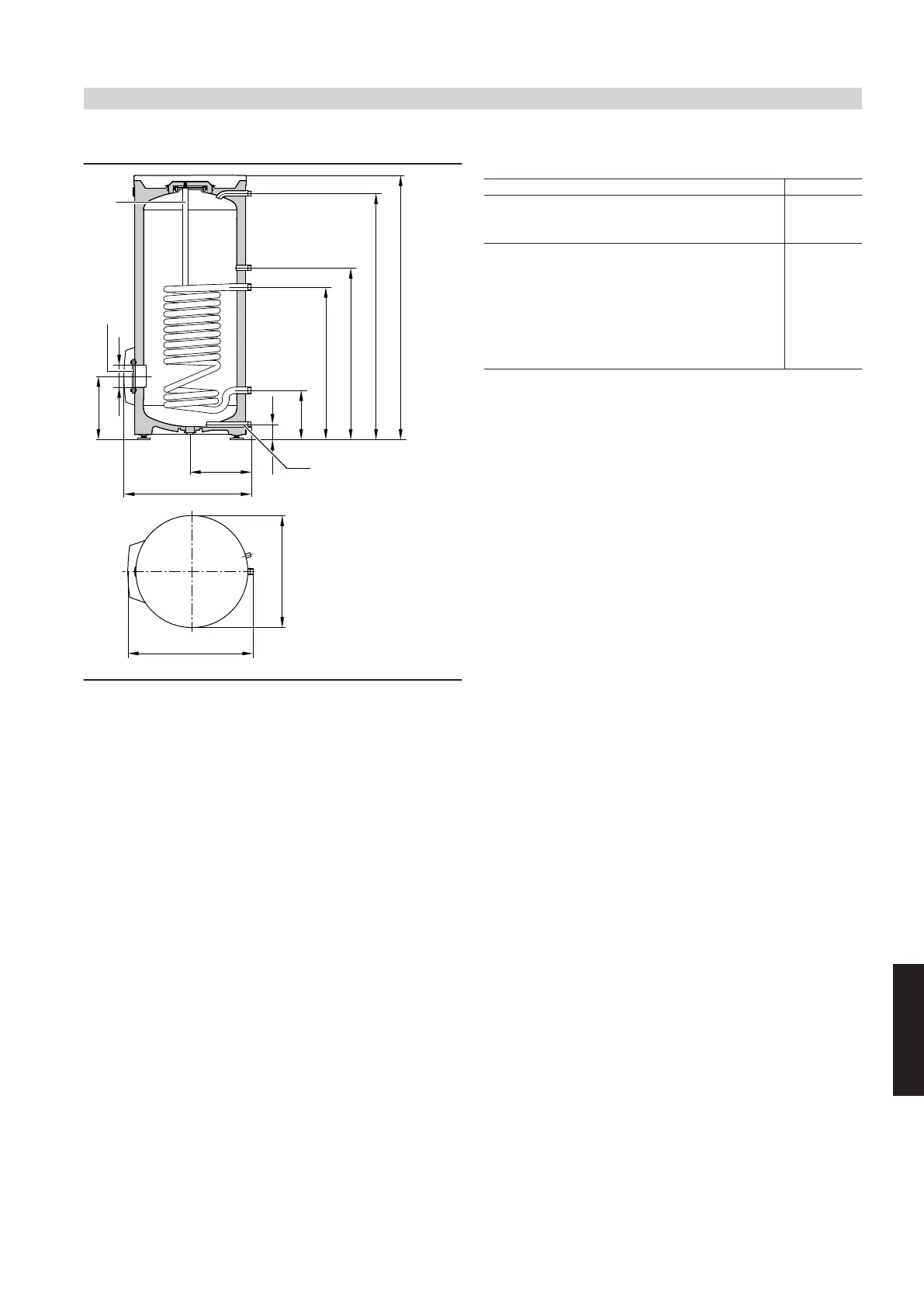

Vitocell 100-V, type CVAA, 300 l capacity
l
SPR
b
a
c
d
e
f
g
h
k
m
BÖ
VA
WW
Z
HV/SPR
HR
KW/E
b
BÖ Inspection and cleaning aperture
E Drain
HR Heating water return
HV Heating water flow
KW Cold water
SPR Cylinder temperature sensor of the cylinder temperature con-
troller or temperature controller (internal sensor well diameter
16 mm)
VA Protective magnesium anode
WW DHW
Z DHW circulation
Dimensions
Cylinder capacity l 300
Length (7)
a mm 667
Width b mm 744
Height c mm 1734
d mm 1600
e mm 1115
f mm 875
g mm 260
h mm 76
k mm 361
l mm
7 100
m mm 333
