Vivotek ND8401 User Manual

VIVOTEK
10 - User's Manual

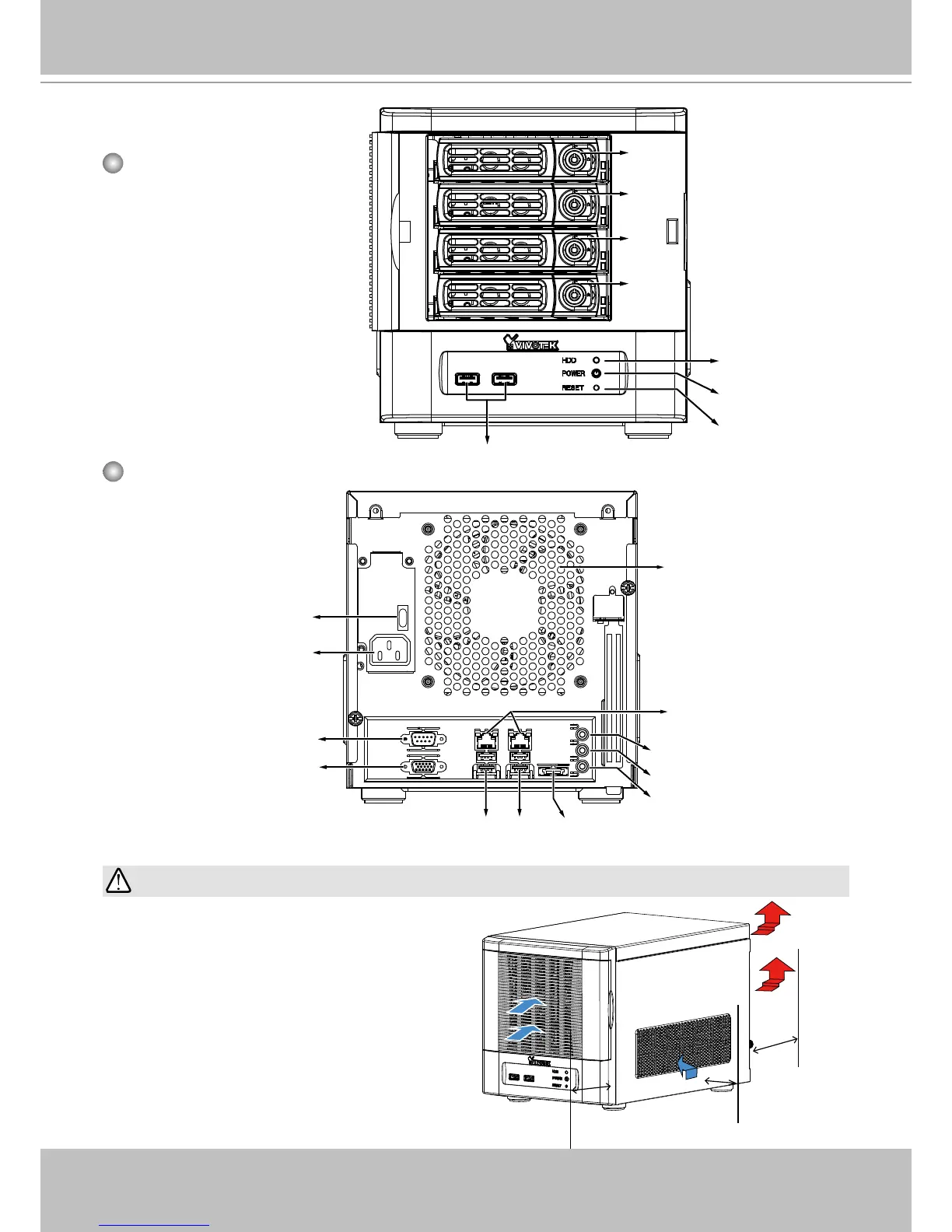

Physical Description
Front View
Rear View
IMPORTANT:
It is important to leave a clearance of 15cm
to the rear side of the chassis. The clearance
is required to ensure an adequate airow
through the chassis to ventilate heat. A 5cm
clearance is also required on both sides of
the chassis.
To ensure normal operation, maintain ambi-
ent airow. Do not block the airow around
chassis such as placing the system in a
closed cabinet.
Disk 1
Disk 2
HDD LED
Power
button & LED
Reset button
Disk 3
Disk 4
USB ports
15cm
5cm
5cm
0
1
RS-232
(reserved)
LAN - WAN
VGA
USB combo
eSATA
MIC-In
Line Out
Line In
Power Switch
Fan exhaust
outlet
Power Socket

Vivotek ND8401 Specifications

General

Brand	Vivotek
Model	ND8401
Category	Network Hardware
Language	English
