ROI (Region of Interest)
The ROI frame can be resized and moved in any direction across the global view window. The working
theory is similar to the e-PTZ function.
Digital Zoom In
Through digital zoom in, the live view window will be lled with the zoomed in ROI image. The maximum
magnication of the ROI frame is 16x zooming. The zoomed in area will change as the ROI frame is
dragged and resized. You can also easily zoom in and zoom out the ROI frame by rolling the mouse back
and force.
Snapshot Zoomed In Image
You can snapshot a zoomed-in image.

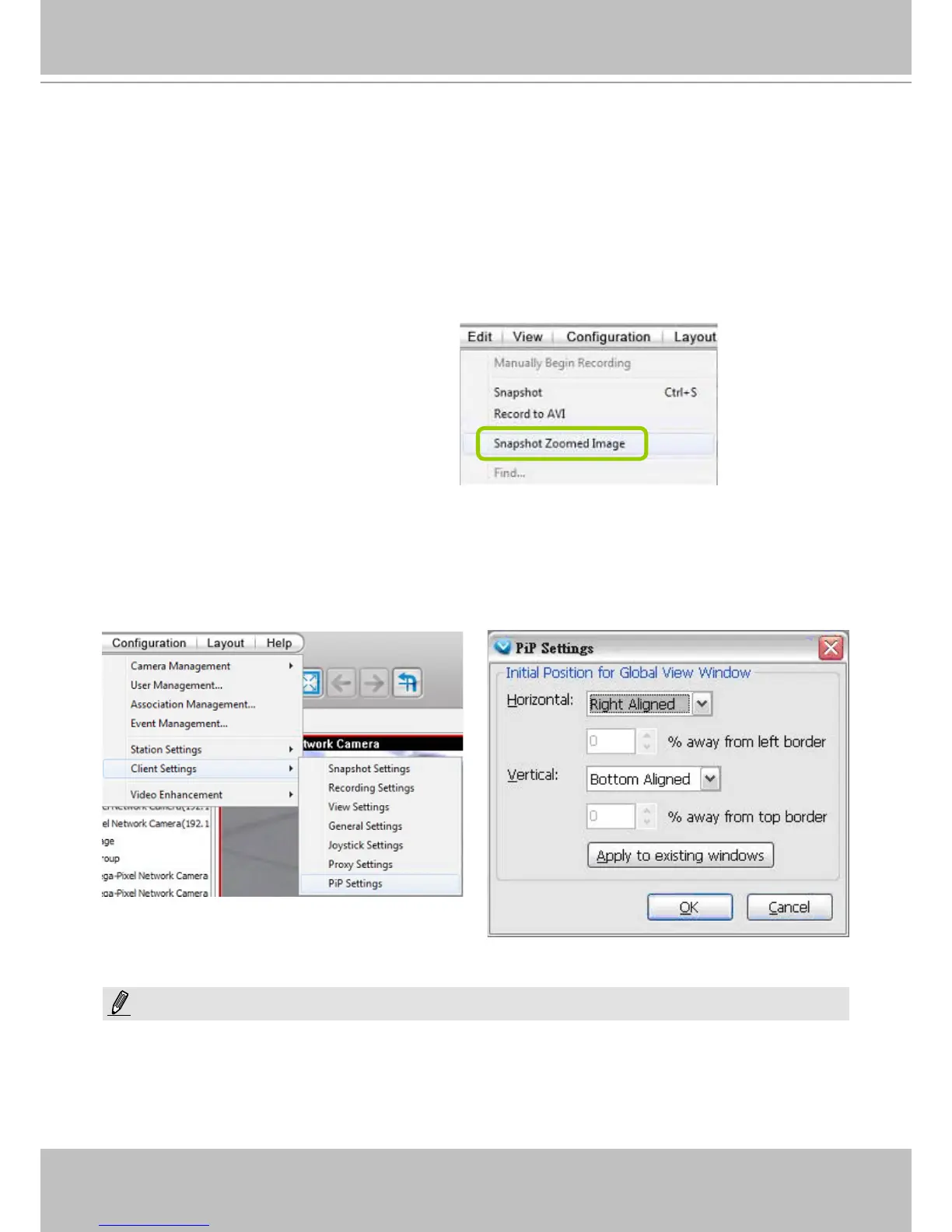

PiP Settings
The PiP Settings is for you to adjust the initial position of the global view window.
Click Conguration > Client Settings > PiP Settings to open the window.
On top of it, you may choose
the horizontal position with left / middle / right side of the live view window, or you can customize the
percentage of space distance from the border of the live view window as an option. It is also fully applied
for vertical position with top / middle / bottom side of the live view window. When it’s done, you may click
on Apply to existing windows to enable the settings.

The
ROI and global view position will be removed when the live view cell is removed from the main screen.

The PiP function also applies in the Playback utility.
NOTE:
