24SPECIFICATIONS

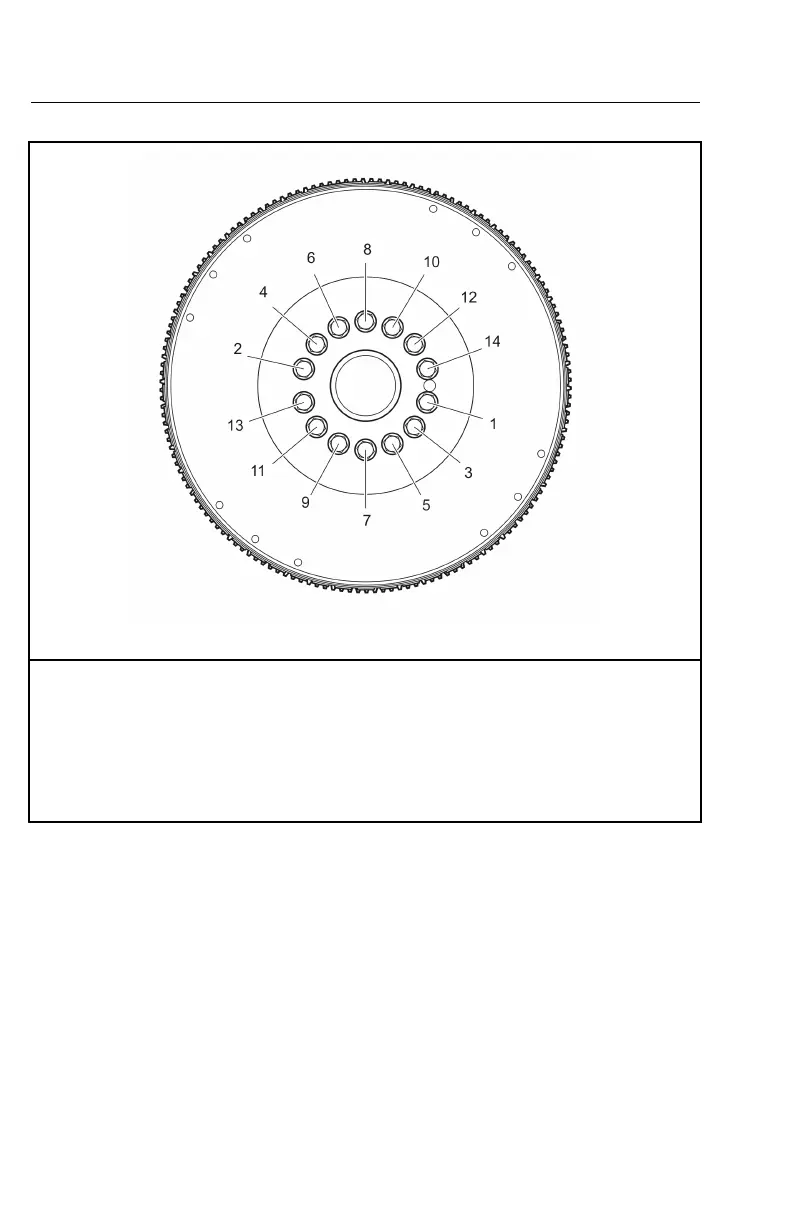

Flywheel

T2022729

Step1........................................................................................60±5Nm(44±4ft-lb)

Step2(angletightening)......................................................................120±10degrees

Note:Makesuretheangeisdryandclean.Tightentheboltsinthenumericalorder

asshown.Marktheheadofeachscrewafterinstallation.Discardscrewswithfour

markswhenremovedandreplacewithnewscrews.

Donotlubricatenewscrewsthatarecoated.
