15
Panels
d. CANCEL button
Press this button when you want to cancel an operation such
as saving a program.
You can disable the operation of the top panel buttons,
knobs and selectors by holding down this button for
approximately two seconds (the Key Lock function). To
cancel the Key Lock function, hold down this button once
again for approximately two seconds.
By pressing this button and the AUTO REC button
simultaneously, you can step through the programs in units
of ten.
8. PEAK LED
This LED will light-up when the signal being
input from the INPUT jack or MIC IN jack is
too loud. If this LED lights-up, adjust your
guitar’s volume or the MIC TRIM knob.

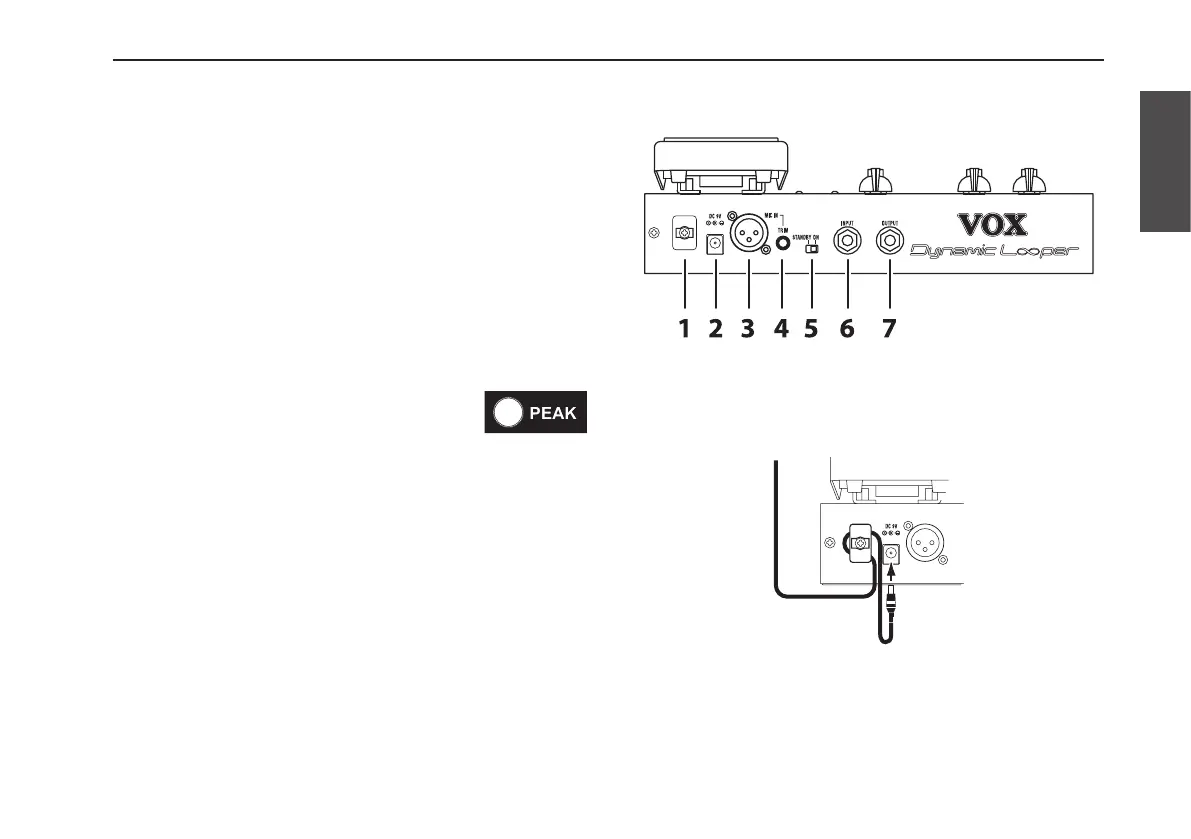

Rear panel
1. Cable hook
Wrap the AC adapter cable around this hook to prevent the
AC adapter from being accidentally disconnected.
2. DC 9V jack
Connect the included AC adapter to this jack.
