The lever is located at the left under the seat.
1. Set the lever to position B.
2. Raise the machine evenly and horizontally by means of the boom and
the stabilizer blade.
3. The telescopic travel gear is controlled via lever
8.
Information
Only perform machine operation with an extended telescopic
travel gear (option). Lower the stabilizer blade and turn out the
extensions (option).

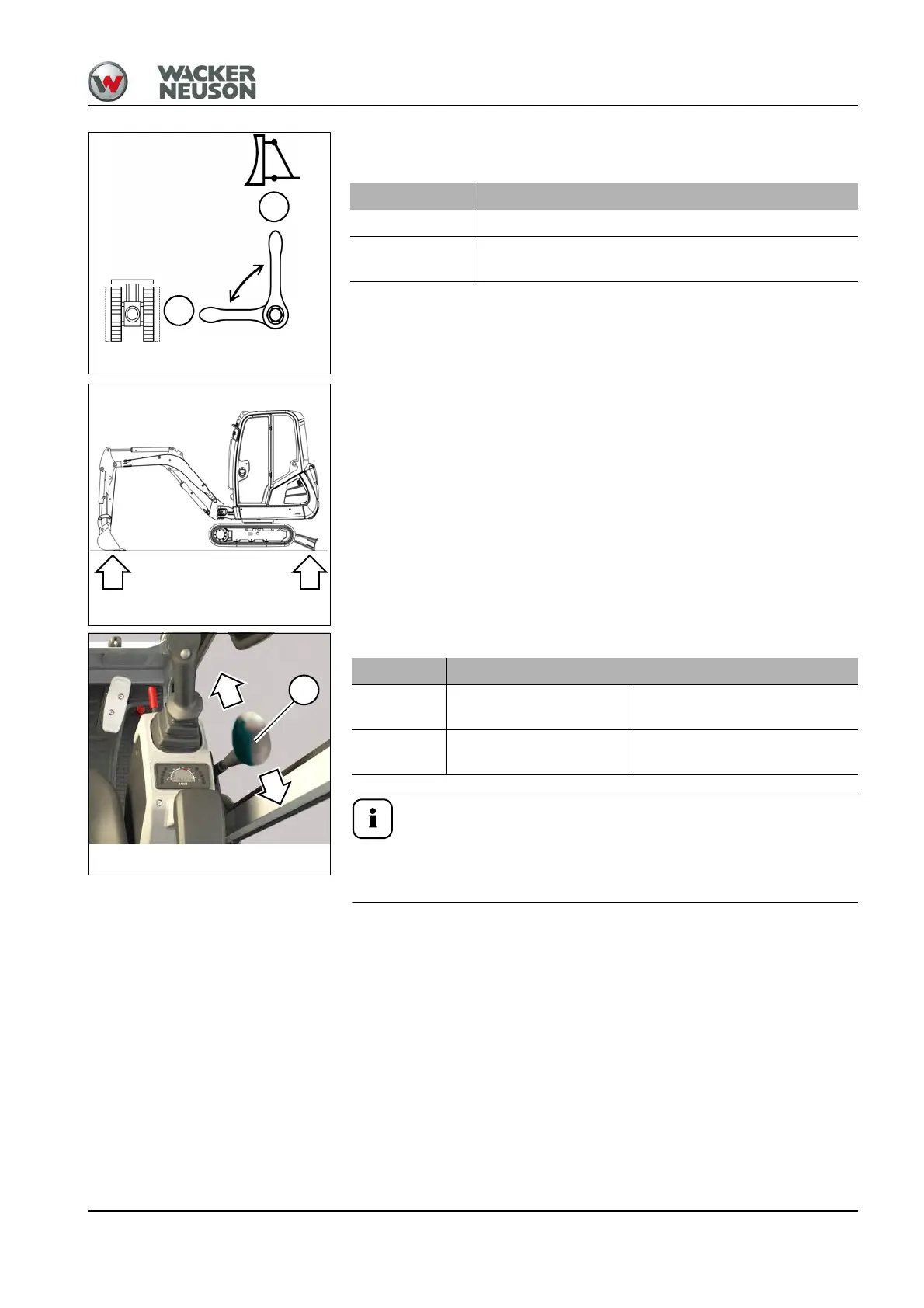

Fig. 146: Stabilizer blade/telescopic travel gear
A
B
Position Function
A The stabilizer blade is actuated with the control lever.
B
The telescopic travel gear is actuated with the control
lever.
Fig. 147: Raising the machine
Fig. 148: Extending/retracting the telescopic
travel gear
1
2
8
Position Function
1 Push lever 8 forward
The travel gear is extended
(wide track).
2 Pull lever 8 backward
The travel gear is retracted
(narrow track).
