Only perform machine operation with an extended telescopic
travel gear (option). Lower the stabilizer blade and turn out the
extensions (option).
Changing the width of the stabilizer blade (option)
Possible machine damage when traveling through door frames,
etc.
► Pay attention to the width of the stabilizer blade and of the
telescopic travel gear when traveling through passages.
► Adjust the stabilizer blade and the telescopic travel gear to
the same widths when operating the machine.
Reducing the width of the stabilizer blade
1. Raise the stabilizer blade to about 1 – 2 cm (about 0.39 – 0.79 in).
2. Pull out pins A on either side.
3. Turn in the stabilizer blade extensions B on either side.
4. Insert pins A on either side.

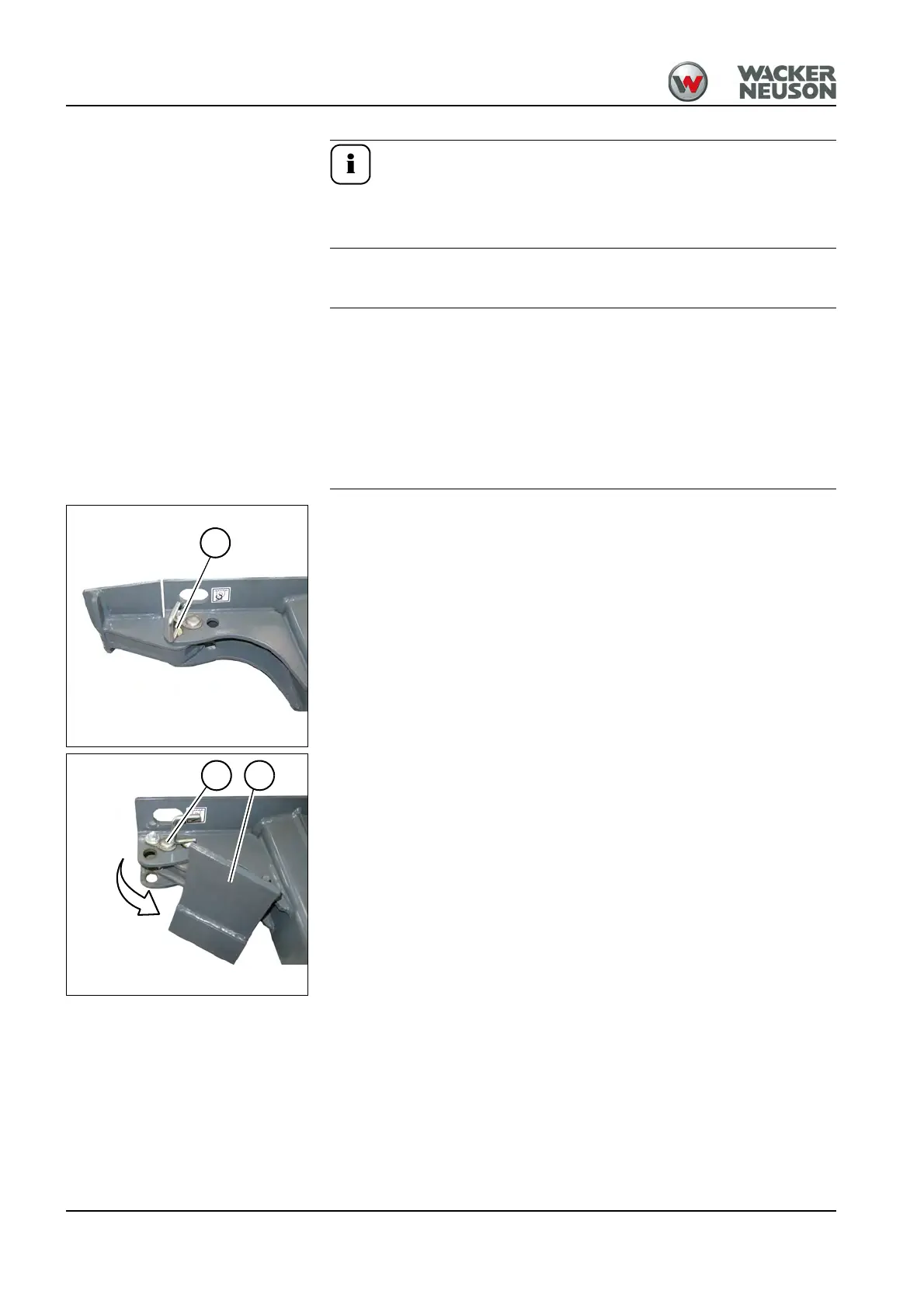

Fig. 143: Changing the width of the stabilizer
blade
A
Fig. 144: Changing the width of the stabilizer
blade
A B
