10.Raise the floor mat on either side.
11.Remove screws D on either side in the leg-room area.
12.Canopy: Remove screws E on either side.
13.Cab (option): Remove screws E on either side.
14.Raise the cab as follows:
- Raise the control lever base.
- Remove the starting key and carry it with you.
- Close the doors, windows and all covers.
- Remove all loose objects from inside the machine.
- Leave the cab.
- Close and lock all covers.
15.Set down the cab safely and ensure that it cannot tip over.
16.Install the cab in the reverse order.
17.Tighten screws D and E to 110 Nm (81 ft.lbs). The washers and
securing elements can be used again.
Cover F can be removed for better access.

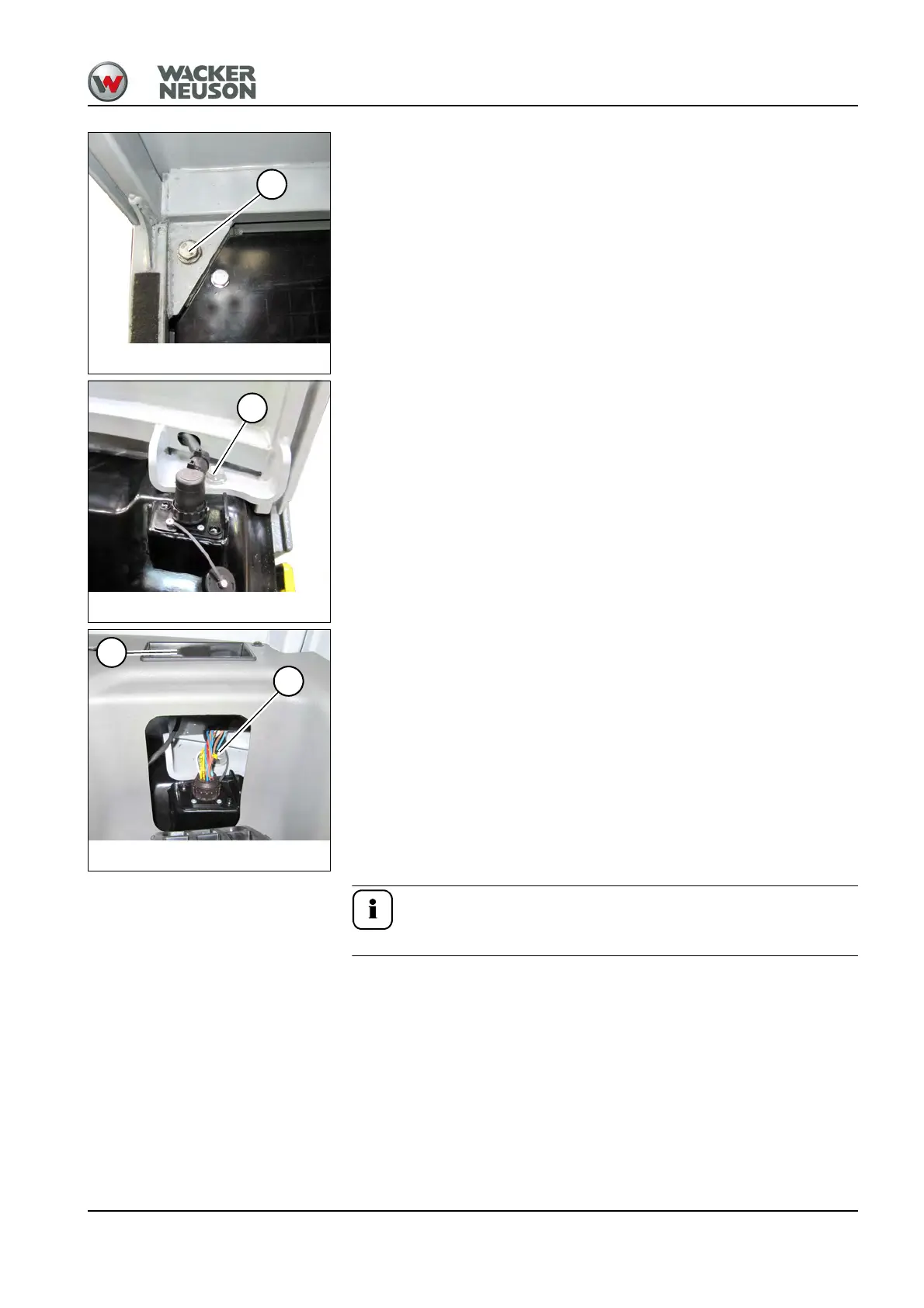

Fig. 237: Left and right-hand screws
D
Fig. 238: Screws (canopy)
E
