Control lever base
Crushing hazard in the area of the moving parts of the
control lever base!
Injury hazard due to crushing of parts of body!
► Keep extremities and clothing clear of the window channel.
1. Stop and park the machine. Stop the engine. See “Preparing
lubrication”.
2. Raise the control lever base.
3. Spray fluid grease onto guide lever A.
4. Spray fluid grease on both sides of the double spring B.
5. Raise and lower the control lever base several times.
Keep the lubrication points clean and remove ejected grease.

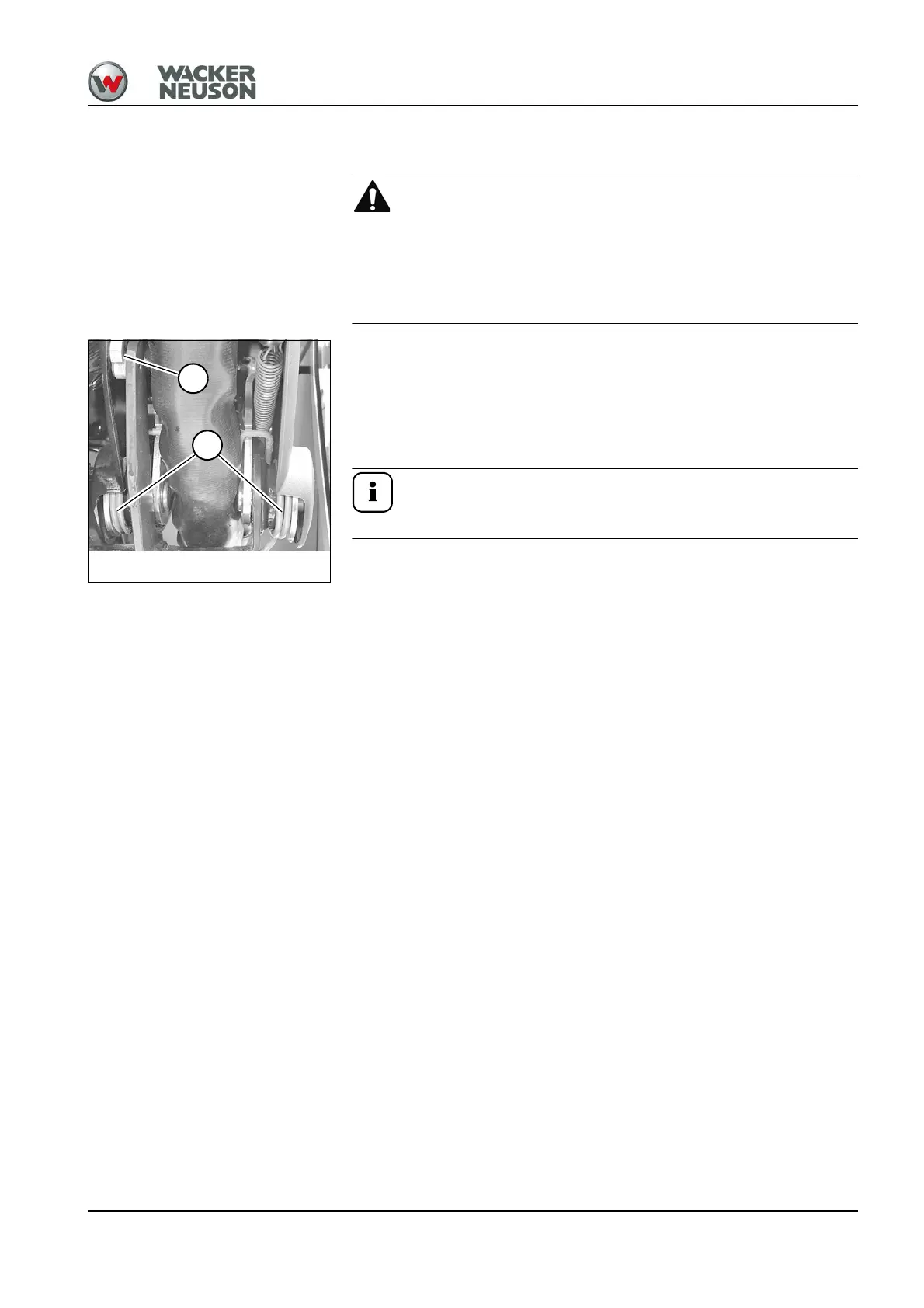

Fig. 243:Guide lever and double spring
A
B
