Proportionally controlled additional control circuit – AUX I (option)

1. Changeover to the dual-circuit function. The ball-type cock is located

on the right in traveling direction on the upper carriage.

2. Turn the rotary switch on the left-hand control lever base to the

required position.

Operating the additional control circuit

Oil flow to left-hand line:

Push slide switch 24 on the left-hand control lever to the left.

Oil flow to right-hand line:

Push slide switch 24 on the left-hand control lever to the right.

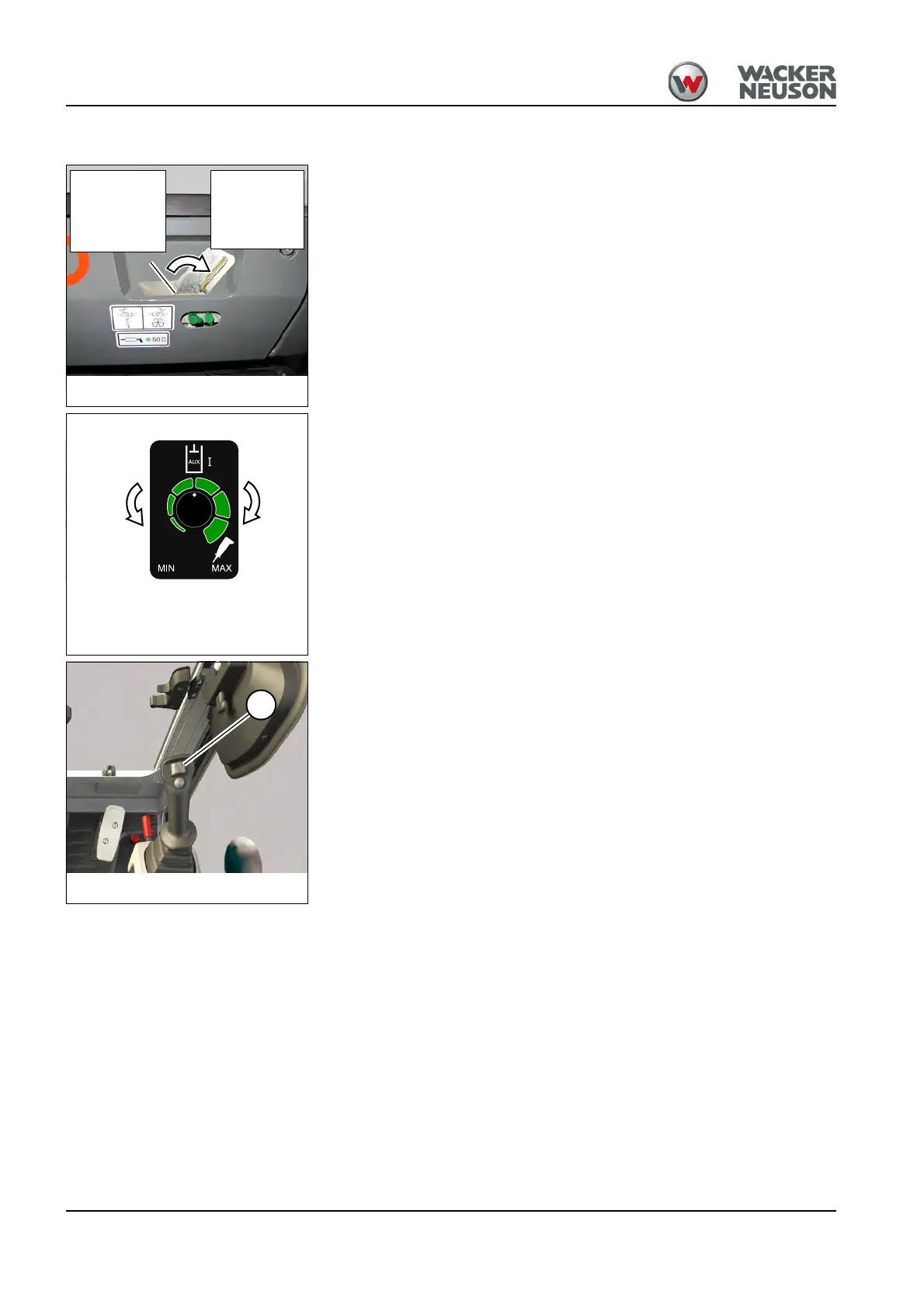

Fig. 161: Ball-type cock

Hammer

operation (sin-

gle-circuit

function)

Grab opera-

tion (dual-cir-

cuit function)

Fig. 162: Setting the oil flow

Fig. 163: Operating the additional control circuit
