Mobile Generator ECM/Sensor Troubleshooting
wc_tx000723gb.fm 45
Continued from the previous page.

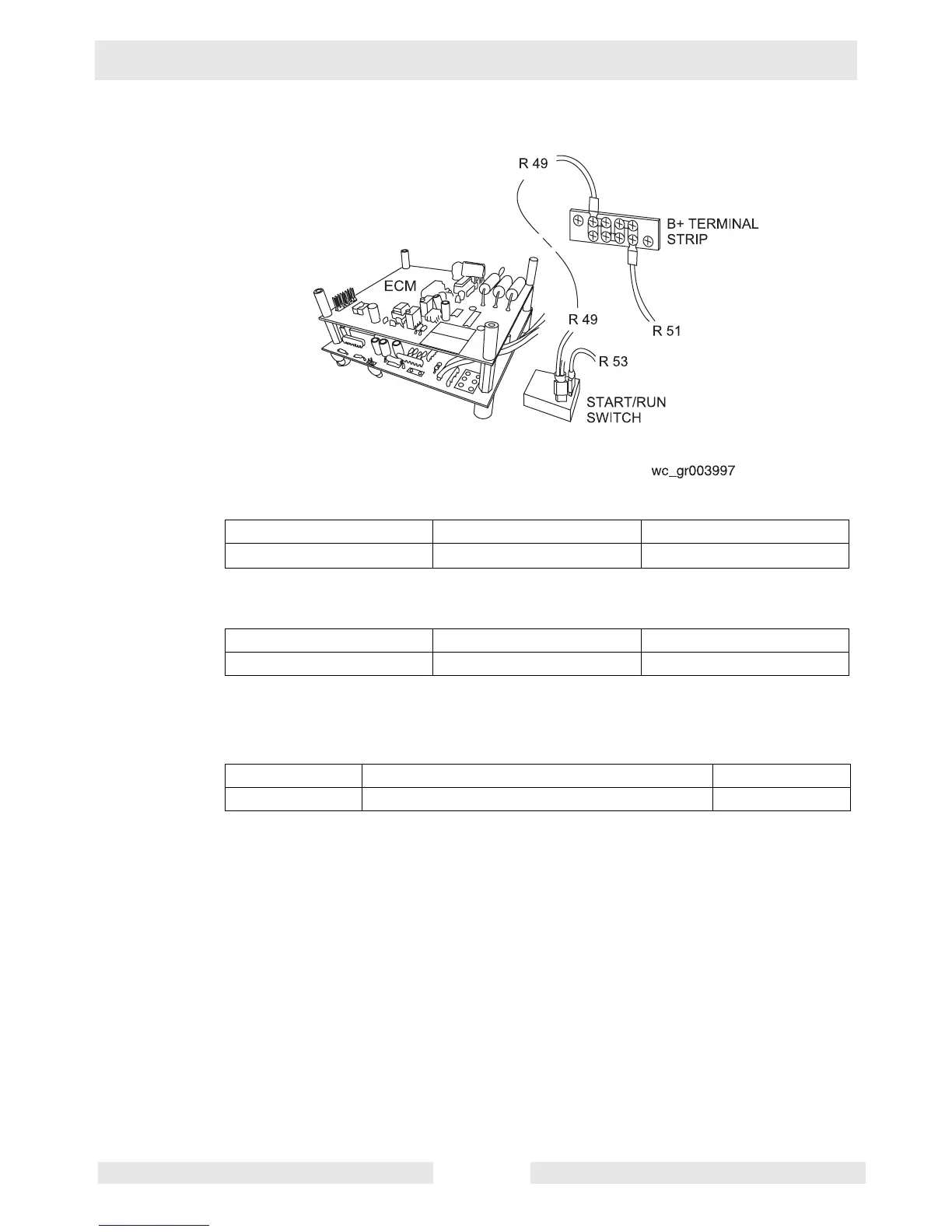

5. Check the voltage between red wire #51 at B+ terminal strip and ground.
Is at least 9.8V measured?
6. Check voltage between red wire #49 at START/RUN switch and ground.
Is at least 9.8V measured?
7. Place the START/RUN switch in the ON position.
8. Check the voltage between red wire #53 at START/RUN switch and ground.
Is at least 9.8V measured?
This procedure continues on the next page.
Yes ____ No ____ Your reading
Continue Repair red wire #51.
Yes ____ No ____ Your reading
Continue Repair red wire #49
Yes ____ No ____ Your reading
Continue Replace the START/RUN switch.
To Next Page
