Lubricating the loader unit

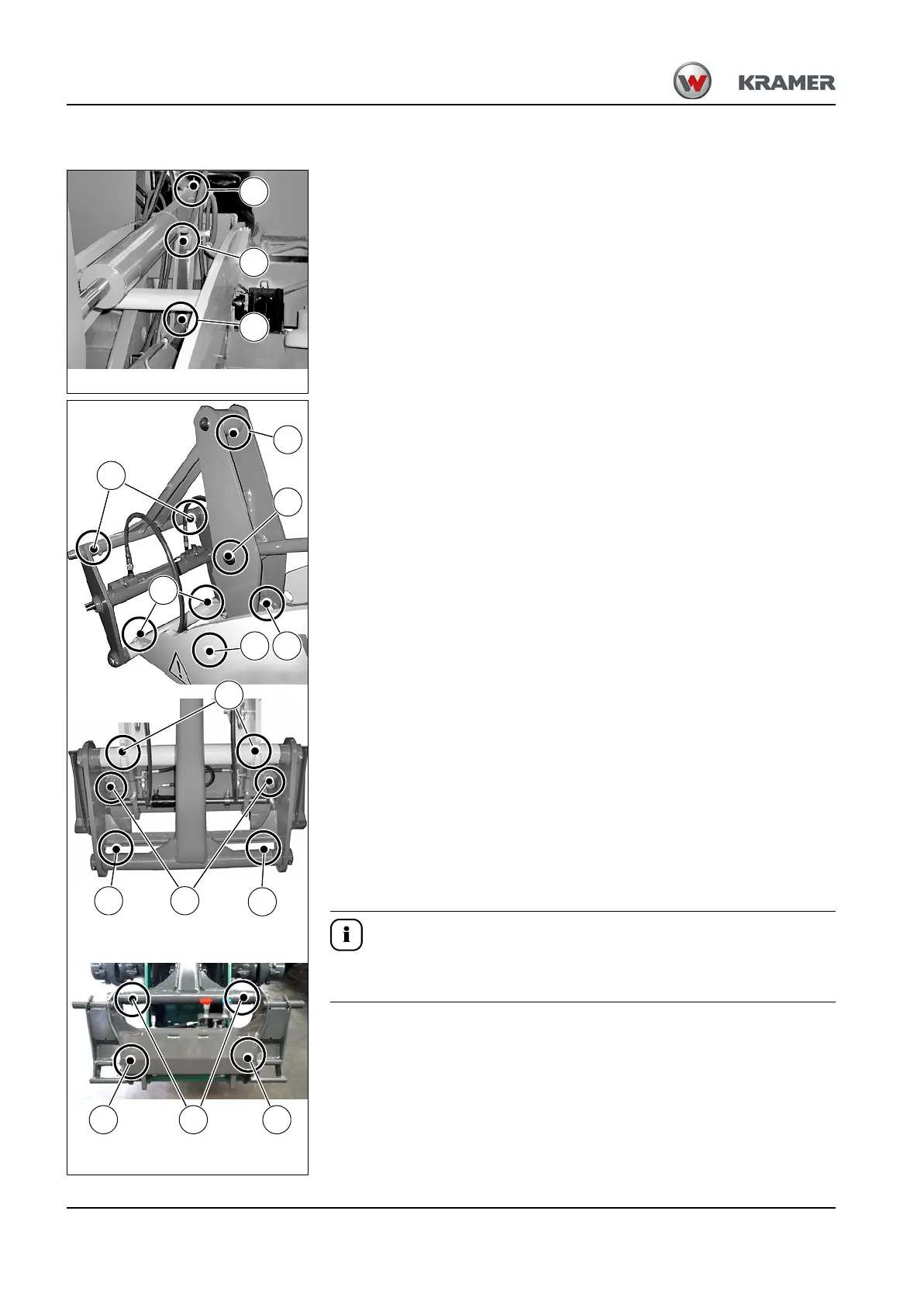

Loader unit lubrication points (overview)
A Lubricate the grease zerk of the tilt cylinder bearing on the frame every
10 operating hours. Lubricate more frequently when in heavy-duty
operation.
B Lubricate the grease zerk of the loader unit bearing every 10 operating
hours. Lubricate more frequently when in heavy-duty operation.
C Lubricate the grease nipple on the lift ram bearing on the frame every
20 operating hours.
D Lubricate the grease zerk of the tilt rod bearing every 10 operating
hours. Lubricate more frequently when in heavy-duty operation
E Lubricate the grease zerk of the tilt ram bearing
every 20 operating hours
F Lubricate the grease zerk of the lift ram bearing every 20 operating
hours. Lubricate more frequently when in heavy-duty operation
G Lubricate grease zerks of the tilt lever bearing every 10 operating
hours. Lubricate more frequently when in heavy-duty operation
H Lubricate the grease zerks of the quickhitch bearing every 10 operating
hours. Lubricate more frequently when in heavy-duty operation
I Lubricate grease zerks of the tilt lever bearing every 10 operating
hours. Lubricate more frequently when in heavy-duty operation
J Lubricate grease zerks of the tilt lever bearing of the SKID STEER
quickhitch (opt) every 10 operating hours; lubricate more frequently
when in heavy-duty operation
K Lubricate grease nipples of the lock pins every 10 operating hours;
lubricate more frequently when in heavy-duty operation
Lubrication
1. Set the quickhitch to a horizontal position.
2. Only raise the loader unit until all zerk fittings can
be accessed without any risk.
3. Apply the parking brake.
4. Turn the machine off and remove the ignition key.
5. Apply grease to the lubrication points with a grease gun.
Information
Maintenance intervals – see "Maintenance plan" on page 7-6.
Lubricant – see chapter 7 “Fluids and lubricants” on page 7-14.
Fig. 216
A
B
C
Fig. 217
D
E
G F
I
J
I
I
KRAMER
quickhitch
SKID STEER
quickhitch
H
H
EURO quickhitch
IK K
