BA 357-00 * 3.0 * 35700_09_Technische_Daten.fm 9-21
Technical data 9

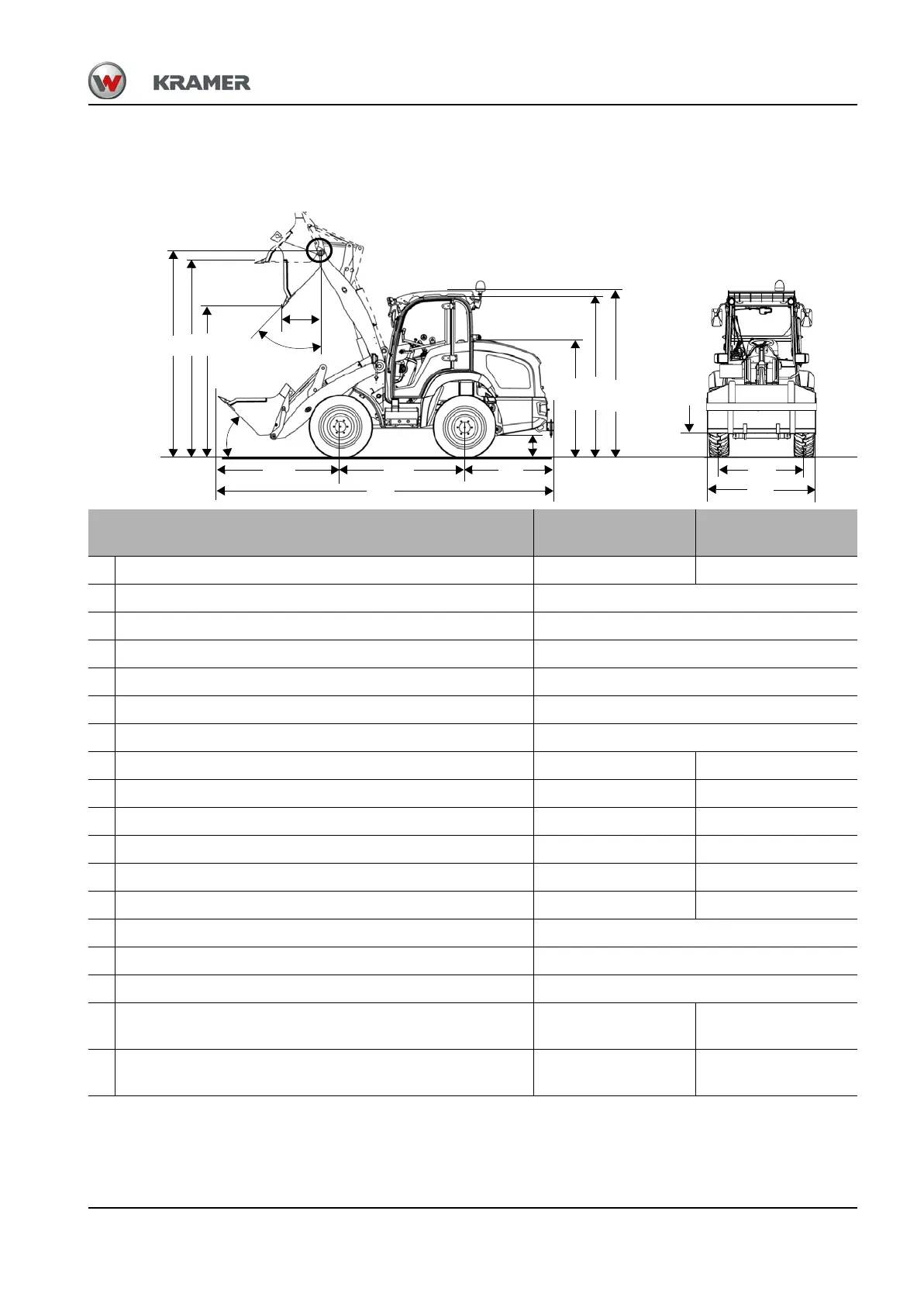

9.15 Dimensions
Dimensions with KRAMER bucket
K
Q O
B
NP
A
G
F
Fig. 276
C
L
M
DE
HIJ
Dimensions with bucket
S = standard
loader unit
L = extended
loader unit
A Overall length
1, 2
4950 mm (194.9 in) 5140 mm (202.3 in)
B Overall width
1
1650 mm (64.9 in)
C Overall height with cabin
3, 4, 5
2390 mm (94 in)
D Overall height with protective FOPS screen
3, 5
2470 mm (97.24 in)
E Overall height, upper edge of engine cover
3, 5
1700 mm (67 in)
F Ground clearance in transport position of loader unit 250 mm (9.85 in)
G Ground clearance
3, 5
280 mm (11 in)
H Pin height
3, 5
3050 mm (121 in) 3300 mm (130 in)
I Load-over height
3, 5
2880 mm (113.4 in) 3280 mm (129.1 in)
J Tilt-out height
3, 5
2350 mm (92.5 in) 2620 mm (103.2 in)
K Tilt reach
1
320 mm (12.6 in) 410 mm (16.1 in)
L Tilt-out angle
1
42° 42°
M Tilt-in angle
1
48° 51°
N Front/rear track
3
1262 mm (49.7 in)
O Wheelbase (centre of front/rear axle) 1850 mm (72.8 in)
P Distance centre of rear axle to rear end 1320 mm (52 in)
Q
Distance between centre of front axle and front edge of
bucket
1780 mm (70 in) 1970 mm (77.5 in)
–
Turning radius: Between curbs
3
Between walls
1
2700 mm (106.3 in)
3550 mm (139.7 in)
2700 mm (106.3 in)
3780 mm (148.8 in)
1. with standard bucket 1000260472 (S) or 1000275101 (L)
2. With towing device
3. with tires 12.0-18
4. With rotating beacon + 200 mm (+7.9 in)
5. With tires 325/70 R18 (−10 mm) (−0.39 in), with tires 365/70 R18 (+10 mm) (+0.39 in)/
With tires 335/80 R18 (+30 mm) (+1.81 in), with tires 340/80 R 18 (+25 mm) (+0.98 in)
