9 Technical data
Dimensions with KRAMER pallet forks
Other information – see "Dimensions with KRAMER bucket" on page 9-21

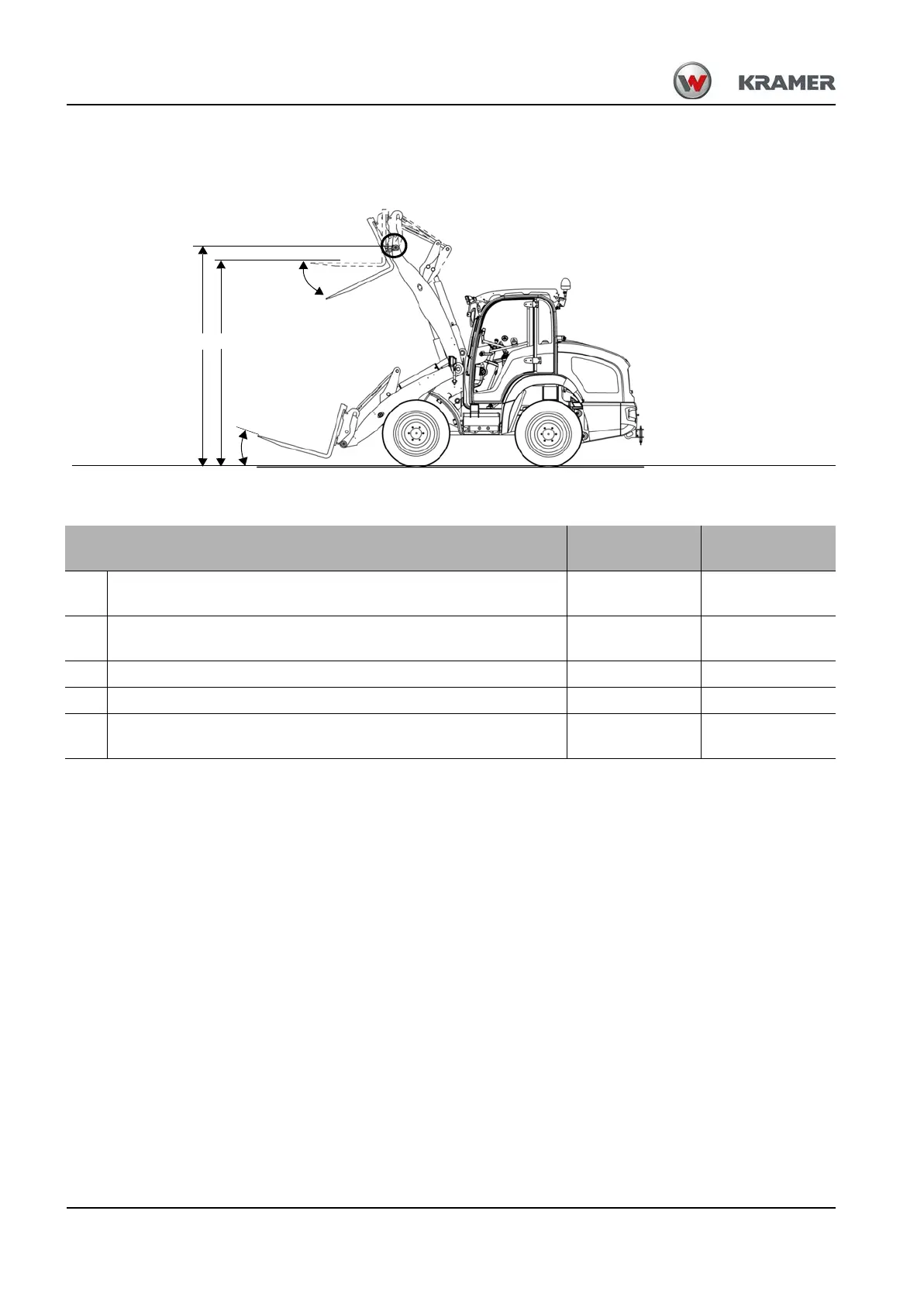

Fig. 277
D
C
AB
Dimensions with pallet forks
S = standard
loader unit
L = extended
loader unit
A Pin height
1, 2
3050 mm
(120.8 in)
3300 mm
(129.9 in)
B Pallet height
1, 2
2830 mm
(111.4 in)
3050 mm
(120.1 in)
C Tilt-in angle in transport position 19 ° 21 °
D Tilt-out angle 25 ° 25 °
–
Turning radius with pallet forks
(horizontal fork arms in transport position)
3820 mm
(150.4 in)
4050 mm
(159.5 in)
1. Measured with pallet forks 1000237357 and tires 12.0-18
2. With tires 325/70 R18 (−10 mm) (−0.39 in), with tires 365/70 R18 (+10 mm) (+0.39 in)/
With tires 335/80 R18 (+30 mm) (+1.81 in), with tires 340/80 R 18 (+25 mm) (+0.98 in)
