BA 357-00 * 3.0 * 35700_03_Einleitung.fm 3-1
Introduction 3
3Introduction

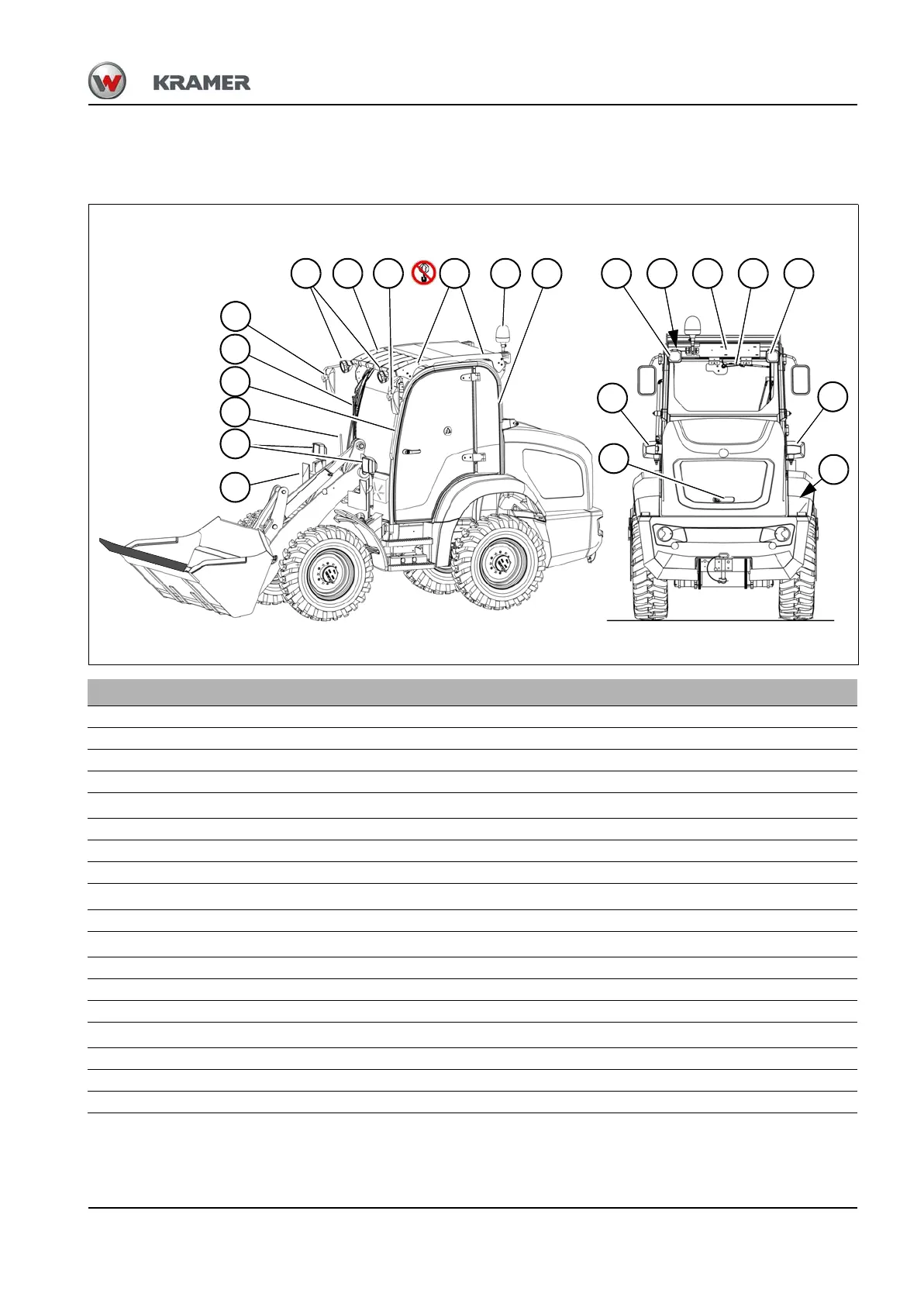

3.1 Machine outside view
10
3
1
17
8 9
4
2
2
2
1412 13 16157 6
5
6
11
18
Fig. 1
Designation
1 Bracket for warning stripe (option)
2 Headlight reflectors left/right with turn indicators
3 Radio preparation – antennae (option)
4 Handle for access
5 Window wiper (front window)
1
6 Left/right rearview mirrors
7 Front working lights (option)
8 FOPS guard grid (category I => series, category II => option)
9 4 eye hooks (cabin disassembly)
2
10 Rotating beacon (option)
11 Cabin open (canopy)/cabin cpl.
3
12 Rear left working light (standard)
13 Backup warning system (option)
14 Numberplate bracket with lighting in rear (option)
15 Windshield wiper (rear window)
1
16 Rear right working light (option)
17 Battery cover plate locking device
18 Filler inlet hydraulic oil reservoir
1. Included in cabin cpl.
2. Eye hooks are for removing the cabin only, and may not be used for lifting the machine.
3. Cabin cpl. => Option
