3 Introduction

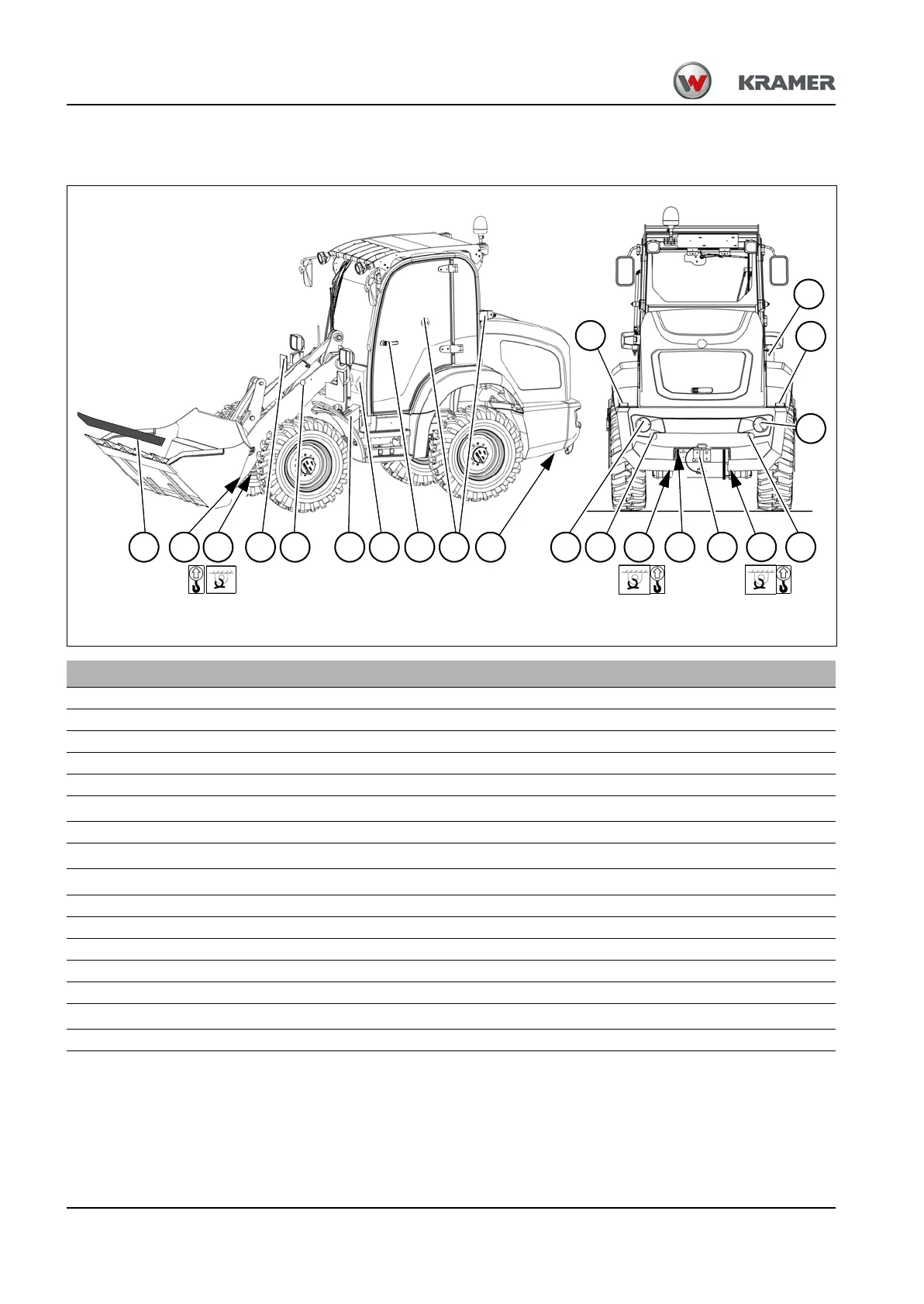

Machine outside view (continuation)
22
23
243233
20
20
31 23 22
21
212930
Fig. 1
28 23 25
19
27 2634
Designation
19 Safety prop for loader unit (option)
20 Additional reflectors (required for attachments larger than 1710 mm (67.3 in) width) (option)
21 Brake, rear and turn indicator lights
22 Reflectors
23 Rear hooks for loading/tying down the machine (left/right)
24 Towing device
1
25 Rear power socket for rear attachments (option)
26 Door arrester
2
27 Door handle with lock (door)
2
28 Hydraulic oil radiator (option)
29 Wheel chock
30 7-pole front socket (option)
31 Number plate bracket in front (optional)
32 Front hooks for loading/tying down the machine (left/right)
33 Front right towing device
1
34 Protective guard (blade and front-edge protection) (option)
1. Not certified as a trailer coupling or for loading or tying down the machine.
2. Included in cabin cpl.
