Technical data 9
Dimensions with SKID-STEER bucket (opt) (currently not available)
K
Q O
B
NP
A
G
F

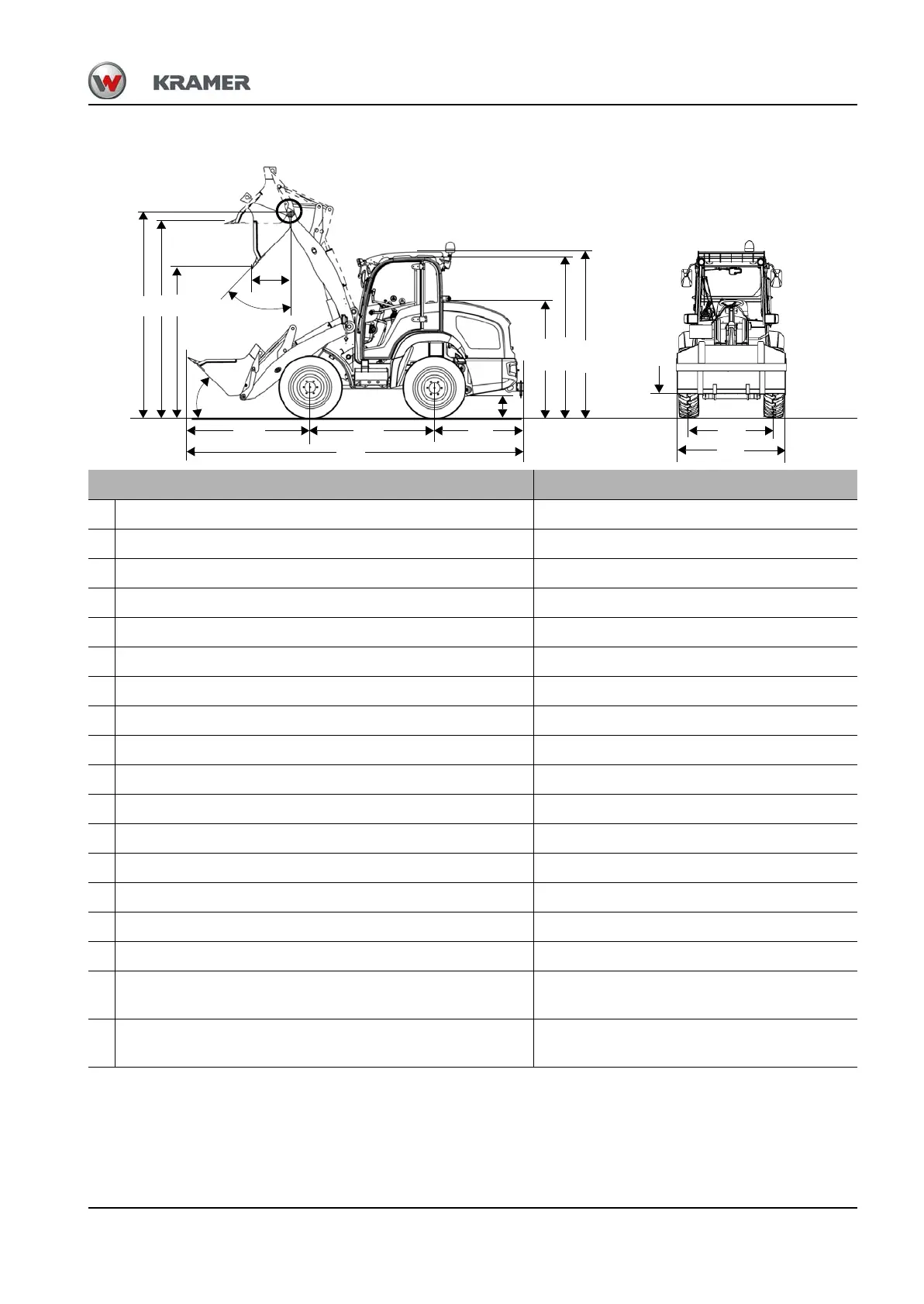

Fig. 278
C
L
M
DE
HIJ
Dimensions with bucket S = standard loader unit
A Overall length
1, 2
4950 mm (194.9 in)
B Overall width
1
1650 mm (64.9 in)
C Overall height with cabin
3, 4, 5
2380 mm (93.7 in)
D Overall height with protective FOPS screen
3, 5
2450 mm (96.46 in)
E Overall height, upper edge of engine cover
3, 5
1700 mm (67 in)
F Ground clearance in transport position of loader unit 250 mm (9.8 in)
G Ground clearance
3, 5
280 mm (11 in)
H Pin height
3, 5
3050 mm (121 in)
I Load-over height
3, 5
2750 mm (108.2 in)
J Tilt-out height
3, 5
2310 mm (90.9 in)
K Tilt reach
1
315 mm (12.4 in)
L Tilt-out angle
1
45 °
M Tilt-in angle
1
43 °
N Front/rear track
3
1262 mm (49.7 in)
O Wheelbase (centre of front/rear axle) 1850 mm (72.8 in)
P Distance centre of rear axle to rear end 1320 mm (52 in)
Q
Distance between centre of front axle and front edge of
bucket
1850 mm (72.8 in)
–
Turning radius: Between curbs
3
Between walls
1
2700 mm (106.3 in)
3550 mm (139.7 in)
1. With standard bucket order no. 1000335701
2. With towing gear
3. With tires 12.0-18
4. With rotating beacon + 200 mm (+7.9 in)
5. With tires 325/70 R18 (−10 mm) (−0.39 in), with tires 365/70 R18 (+10 mm) (+0.39 in)/
With tires 335/80 R18 (+30 mm) (+1.81 in), with tires 340/80 R 18 (+25 mm) (+0.98 in)
