BA 357-00 * 3.0 * 35700_08_Betriebsstörung.fm 8-39
Malfunctions 8
Displays

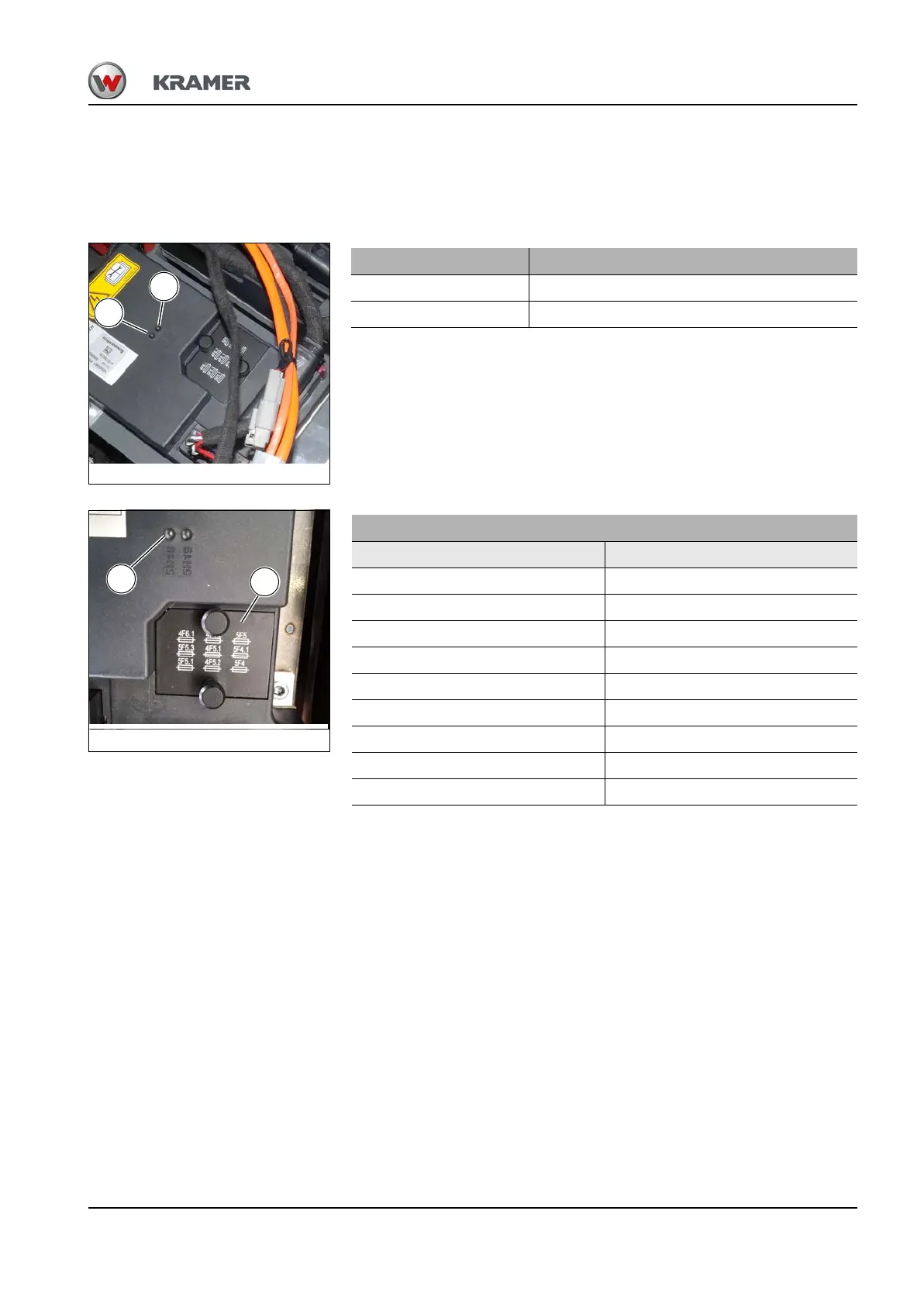

There are 2 LED indicator lights in total located under the operator seat on
the front side of the StVZO module. The indicator lights act as a minimal
diagnosis.
Burned out or missing fuses are indicated by means of flash codes via the
diagnosis indicator for fuses 5H18.
The flash code is composed as follows: the LED is repeatedly switched
briefly on (approx. 0.2 sec) and off (ca. 0.4 sec). Lastly, a longer pause
follows (approx. 2 sec), indicating the end of the start of the flash code.
The number of times the LED is repeatedly switched off
(e.g. 4 times consecutively off = flash code 4).
Designation LED Function
5H18 Diagnosis indicator fuse box A
5H19 Indicator display control B
Fuse box (C)
Flash code LED 5H18 (A) Defective fuse
24F6.1
35F5.3
45F5.1
54F6.2
64F5.1
74F5.2
85F5
95F4.1
10 5F4
