BA 357-00 * 3.0 * 35700_09_Technische_Daten.fm 9-25
Technical data 9
Dimensions with EURO pallet forks (opt)
Other information see "Dimensions with KRAMER bucket" on
page 9-21.

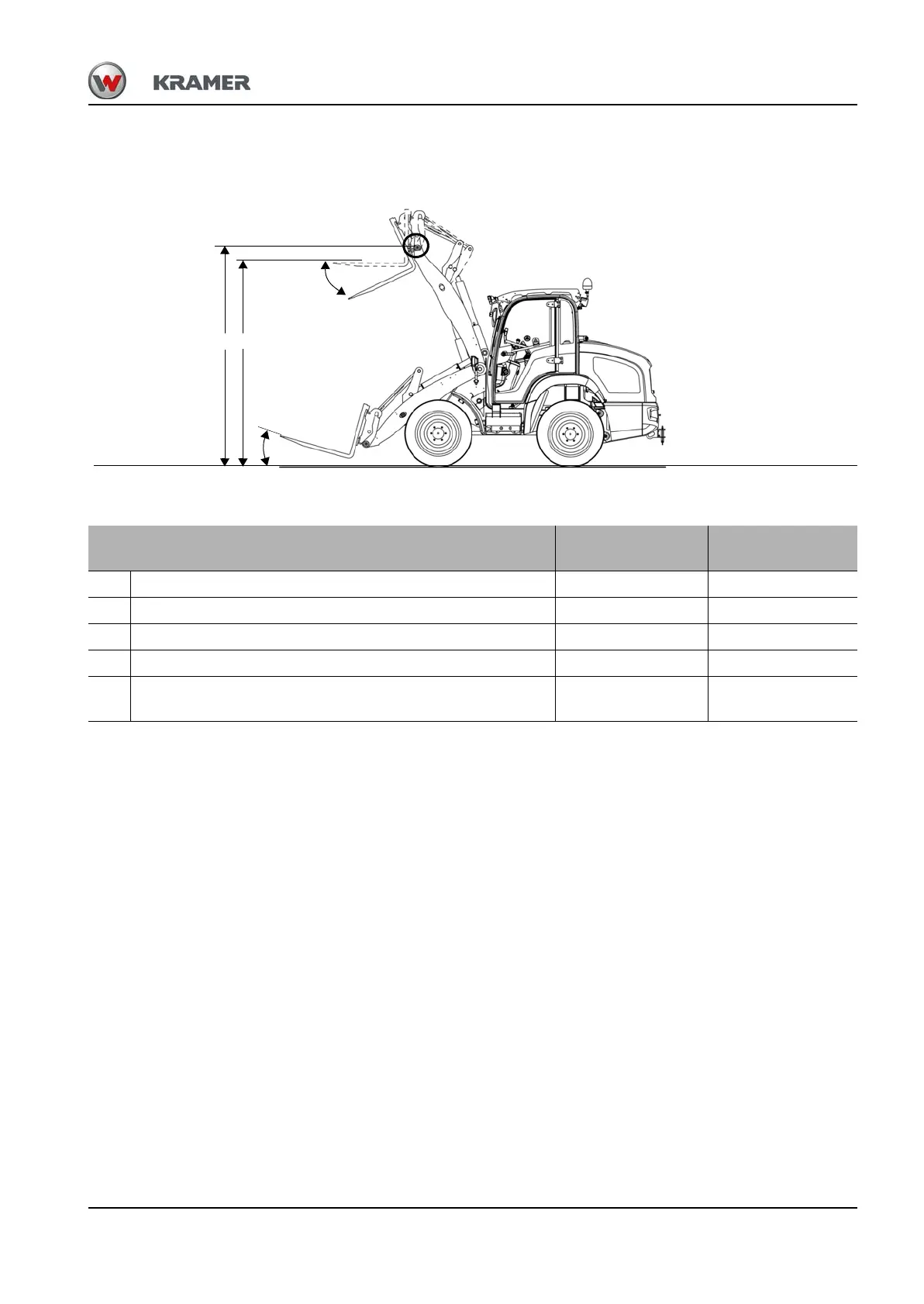

Fig. 280
D
C
AB
Dimensions with bucket (EURO)
S = standard
loader unit
L = extended
loader unit
A Pin height
1, 2
3050 mm (120 in) 3300 mm (130 in)
B Pallet height
1, 2
2950 mm (116.1 in) 3200 mm (126 in)
C Tilt-in angle in transport position 15 ° 15 °
D Tilt-out angle 68° 68°
Turning radius with pallet forks
(horizontal fork arms in transport position)
3820 mm
(150.4 in)
4050 mm
(159.5 in)
1. Measured with pallet forks 1000241148 and tires 12.0-18
2. With tires 325/70 R18 (10 mm) (0.39 in), with tires 365/70 R18 (+10 mm) (+0.39 in)/
With tires 335/80 R18 (+30 mm) (+1.81 in), with tires 340/80 R 18 (+25 mm) (+0.98 in)
