4 Putting into operation
Opening and closing the window on the right
Crushing hazard to arms and hands due to unlocked side window!
The side window can cause injury by crushing arms and
hands when it is being closed.
► Lock the side window before moving off.
► Only exit from, open or close the side window when the machine is at a
standstill.
► Ensure that the open side window is safely locked in the handle of the
window adjuster.
► Ensure that the fully open side window is engaged in the arrester.

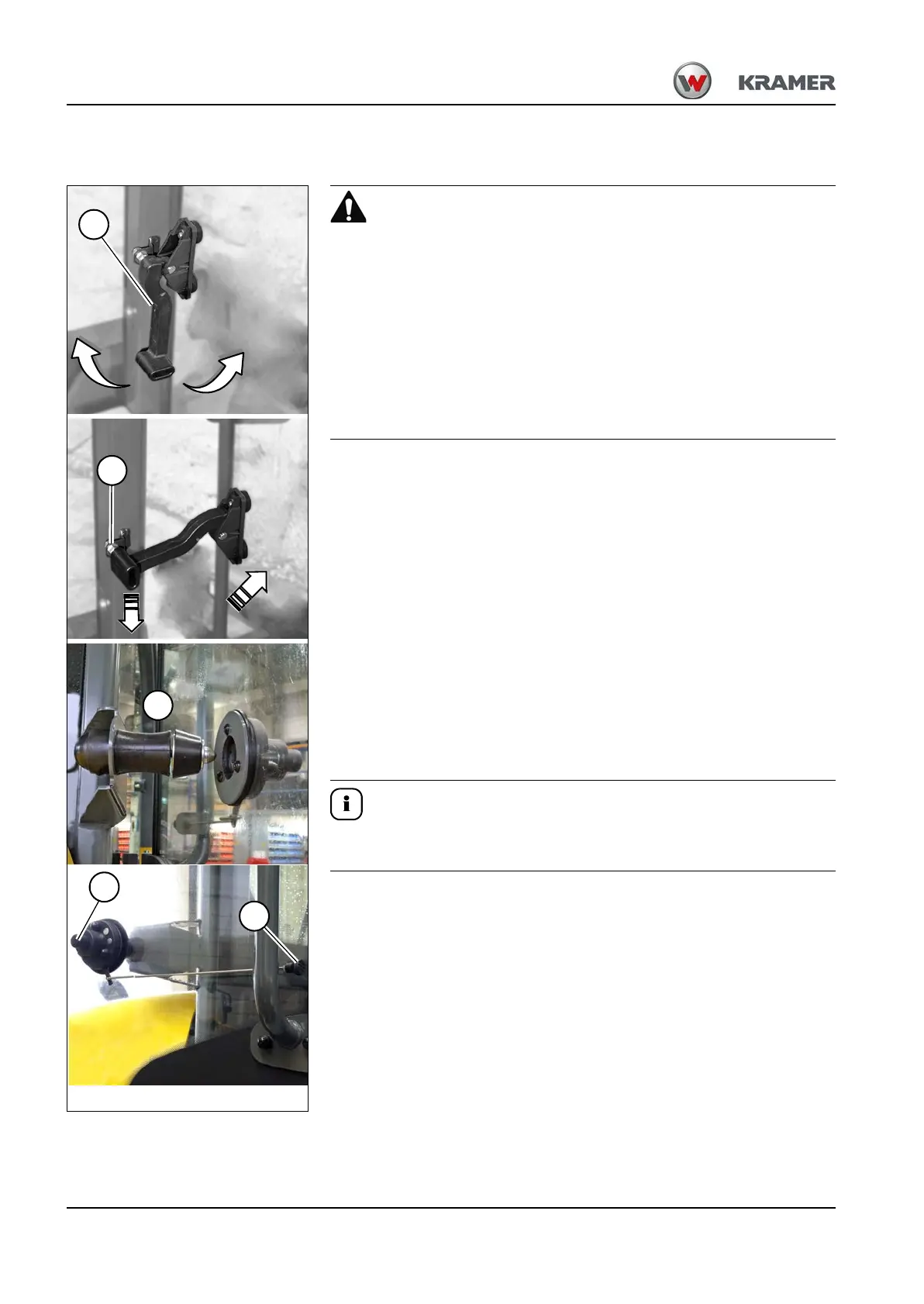

Opening the side window
1. Slide lever A upward.
2. Press the side window outward and press the end of the lever
downward in pin B.
Fully opening the side window
1. Slide lever A upward and pull it out of pin B.
2. Open the side window completely to the outside and lock into place in
the arrester C.
Closing the side window
1. If the side window is completely open: pull on button D or press on
button E and swivel back the side window.
2. Insert lever A in pin B.
3. Push down lever A.
Lubricate the arrester regularly
– see chapter 7 “Lubricate the window lock” on page 7-29!
