LTN Assembly Appendix VI—CE Racked Assembly
wc_tx001217gb.fm 105
14.3 Attaching the Tower Lock Bracket
Procedure
Follow the procedure below to Install the tower lock bracket.
1. Locate the following in hardware bag 5:
(1) tower lock bracket (M)
(3) M8 x 20 hex head mounting screws (N)
(3) M8 flat washers (O)
(3) M8 lock nuts (P)

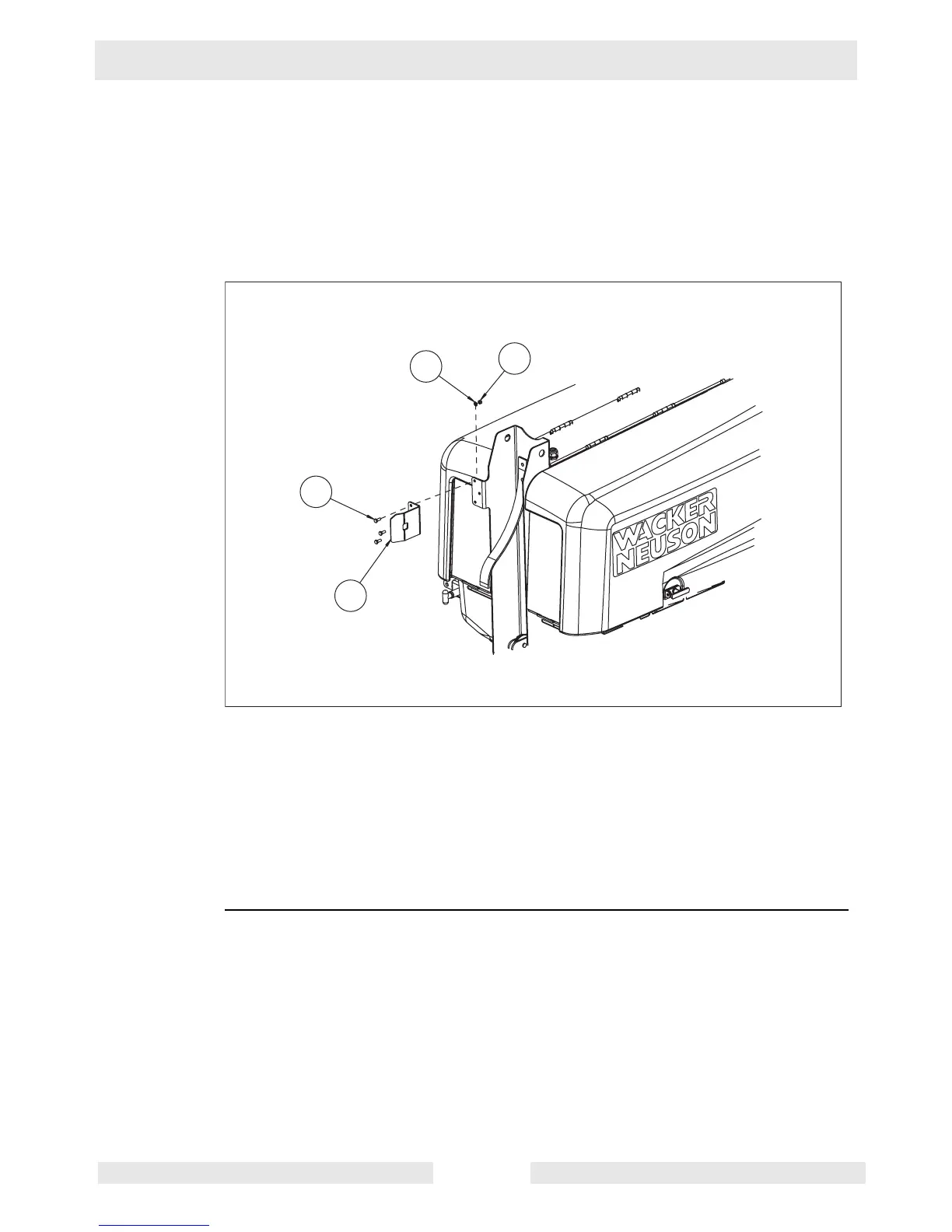

2. Install the tower lock bracket on the tower as shown.
3. Torque the mounting screws to 35 Nm (25 ft.lbs.).
14.4 Attaching the Tower Cradle
Materials
needed
Tower cradle
Hardware bag 4 (tower cradle hardware)
Procedure
Follow the procedure below to assemble the tower cradle (Y).
wc_gr006526
M
N
O
P
To Next Page
