Appendix V—Standard Racked Assembly LTN
84 wc_tx001216gb.fm
Tools and
materials
The following tools and materials are needed:
Basic hand tools (wrenches, screwdrivers, etc.)
Torque wrench
Hardware bags: 1, 2, 3, 4, 5, 6, 8, and fabricated parts
13.1 Installing the Axle
Procedure
Follow the procedure below to install the axle:
1. Lift the machine using appropriate lifting gear. Refer to topic Lifting the Machine
in the Safety Information chapter.

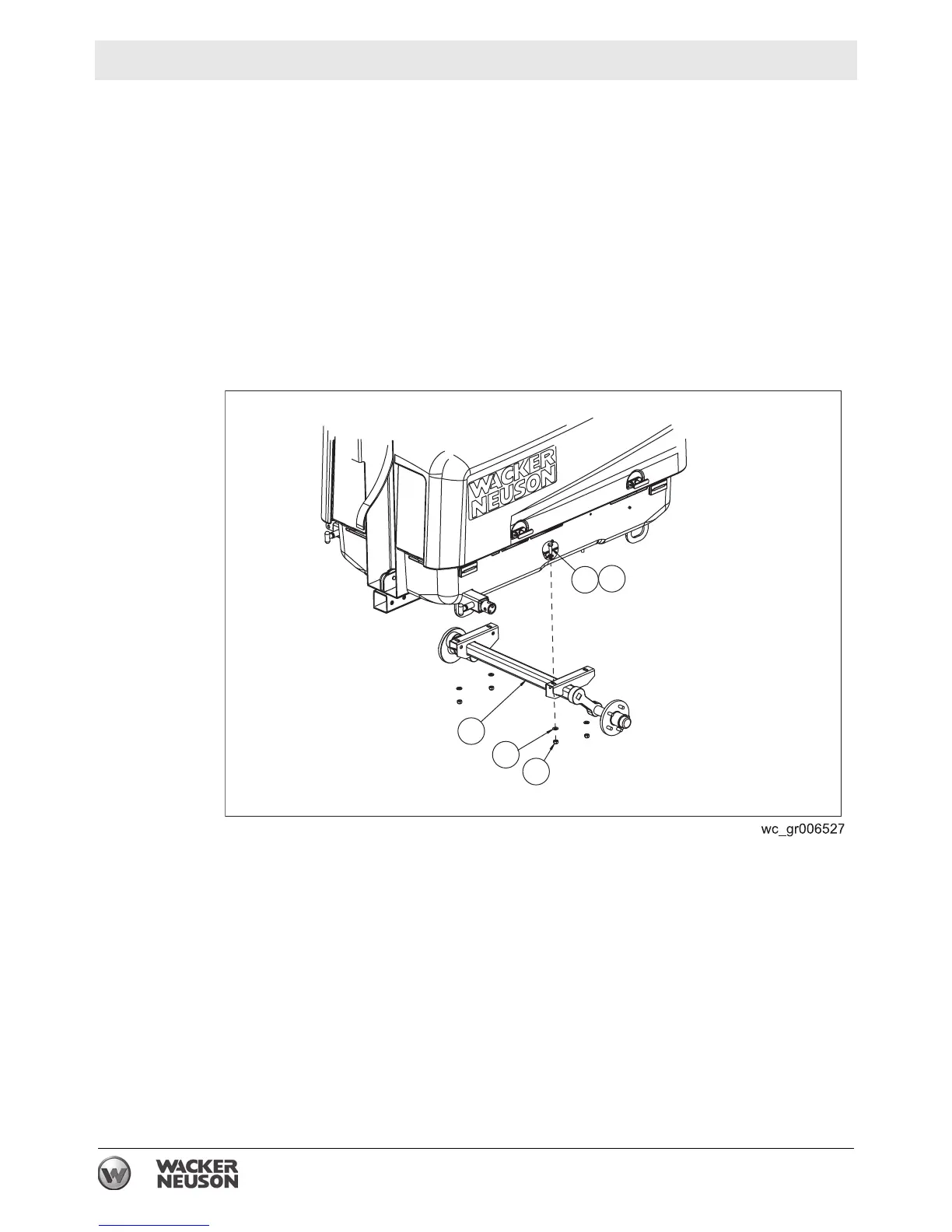

2. Locate the axle (Q) and hardware bag 1.
3. Install the axle on the trailer using the following hardware:
(4) Bolts (Q1), (8) Washers (Q2), (4) Nuts (Q3).
4. Torque the fasteners to 115 Nm (85 ft.lbs.).
Q2
Q2
Q1
Q3
Q
