LTN Appendix V—Standard Racked Assembly
wc_tx001216gb.fm 85

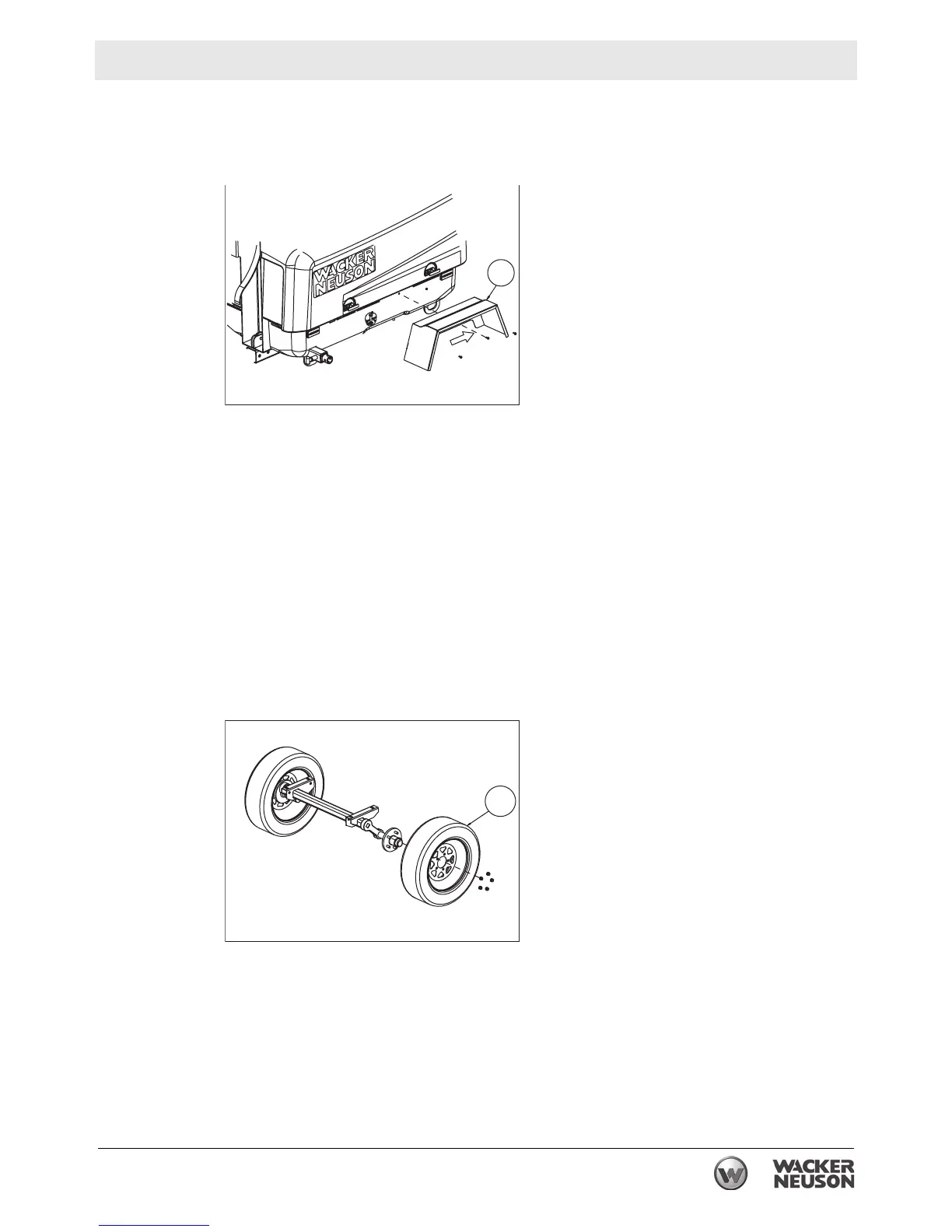

13.2 Installing the Fenders
Procedure
Follow the procedure below to Install the fenders.
1. Locate the two fenders (W) and hardware bag 2.
2. Align each fender as shown in the illustration.
3. Install each fender on the Light Tower using (3) M6 x 16 serrated flange
screws—but do not tighten the screws until the next step.
4. Slide each fender backward until the mounting screws are located at the front
end of the slots. Torque the screws to 16 Nm (11.5 ft.lbs.).
13.3 Installing the Wheels
Installing the
wheels
Follow the procedure below to Install the wheels:
1. Locate the two wheels (U) and hardware bag 3.
2. Install the wheels on the axle using five lug nuts per wheel. Torque the lug nuts
to 115 Nm (85 ft.lbs.).
W
wc_gr006528
U
wc_gr006529
