Wacker Neuson LTN 6L

LTN 6L Operation
wc_tx000766gb.fm 45

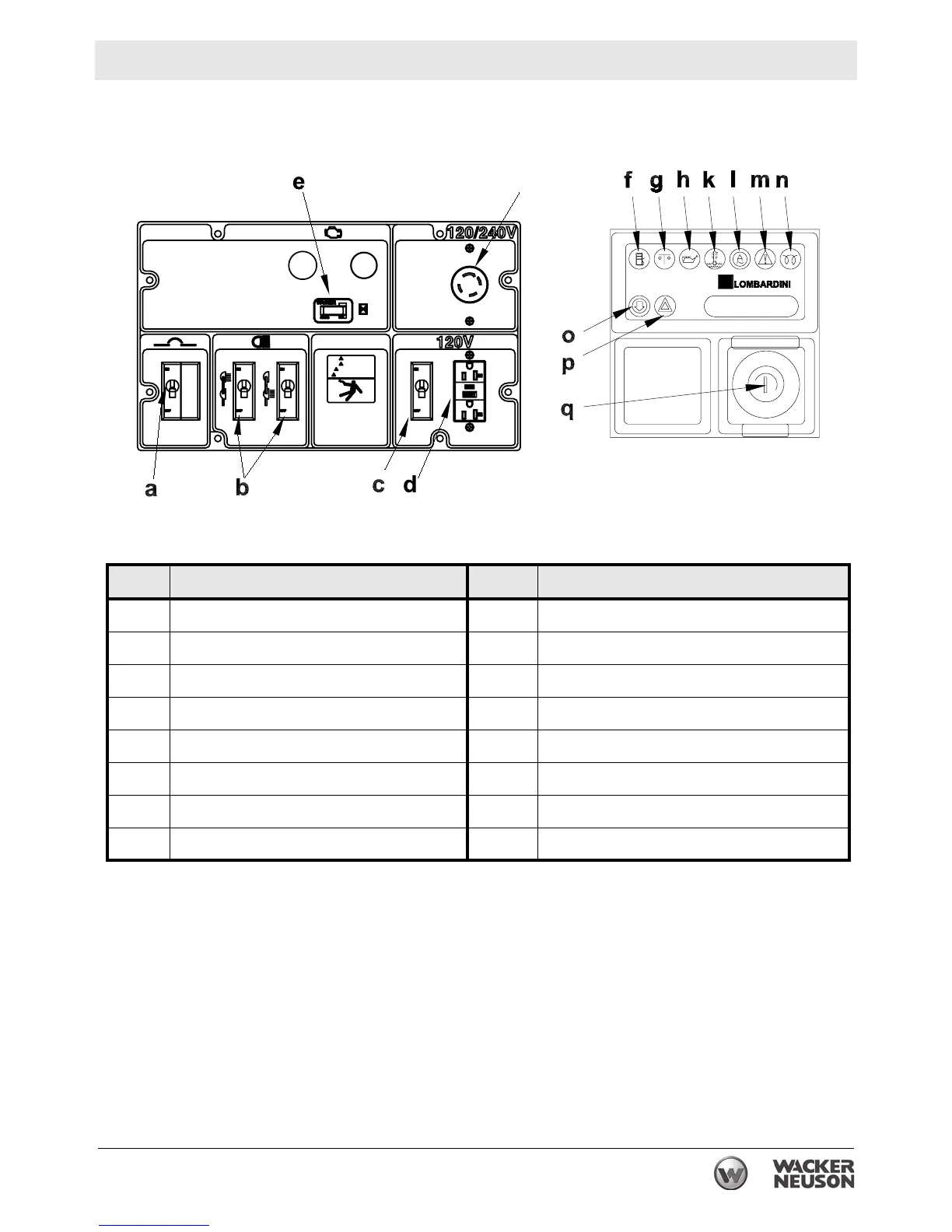

4.11 Control Panels (120/240, Manual Winch System)
Floodlight Control Panel Engine Control Panel
Ref. Description Ref. Description
a 25 Amp circuit breaker k High coolant temperature shutdown
b 30 Amp lights circuit breaker l Alternator indicator
c 20 Amp GFI circuit breaker m Auxiliary lights (not used)
d 20 Amp GFI receptacle n Glow plug indicator
e Hour meter o Air filter restriction indicator
f Low fuel indicator (not used) p Auxiliary lights (not used)
g Safety shutdown indicator q Key access door
h Low oil pressure shutdown r 30 Amp receptacle
wc_gr006329
r
WARNING
WARNING
WARNUNG
WARNUNG
ADVERTENCIA
ADVERTENCIA
AVERTISSEMENT
AVERTISSEMENT
NEUTRAL BONDED TO FRAME
NEUTRAL BONDED TO FRAME
CONDUCTOR NEUTRO
CONDUCTOR NEUTRO
CONECTADO AL CHASIS
CONECTADO AL CHASIS
CONDUCTEUR NEUTRE MIS
CONDUCTEUR NEUTRE MIS
A LA MASSE DU CHASSIS
A LA MASSE DU CHASSIS
NULL-LEITER AM RAHMEN
NULL-LEITER AM RAHMEN
ANGESCHLOSSEN
ANGESCHLOSSEN
