LTN Appendix III—Standard Pallet Assembly
wc_tx001214gb.fm 77
11.4 Installing the Upper Light Fixtures
Materials
needed
Light fixtures (2)
Hardware bag 6 (tower lights hardware)
Procedure
Follow the procedure below to install the upper light fixtures.

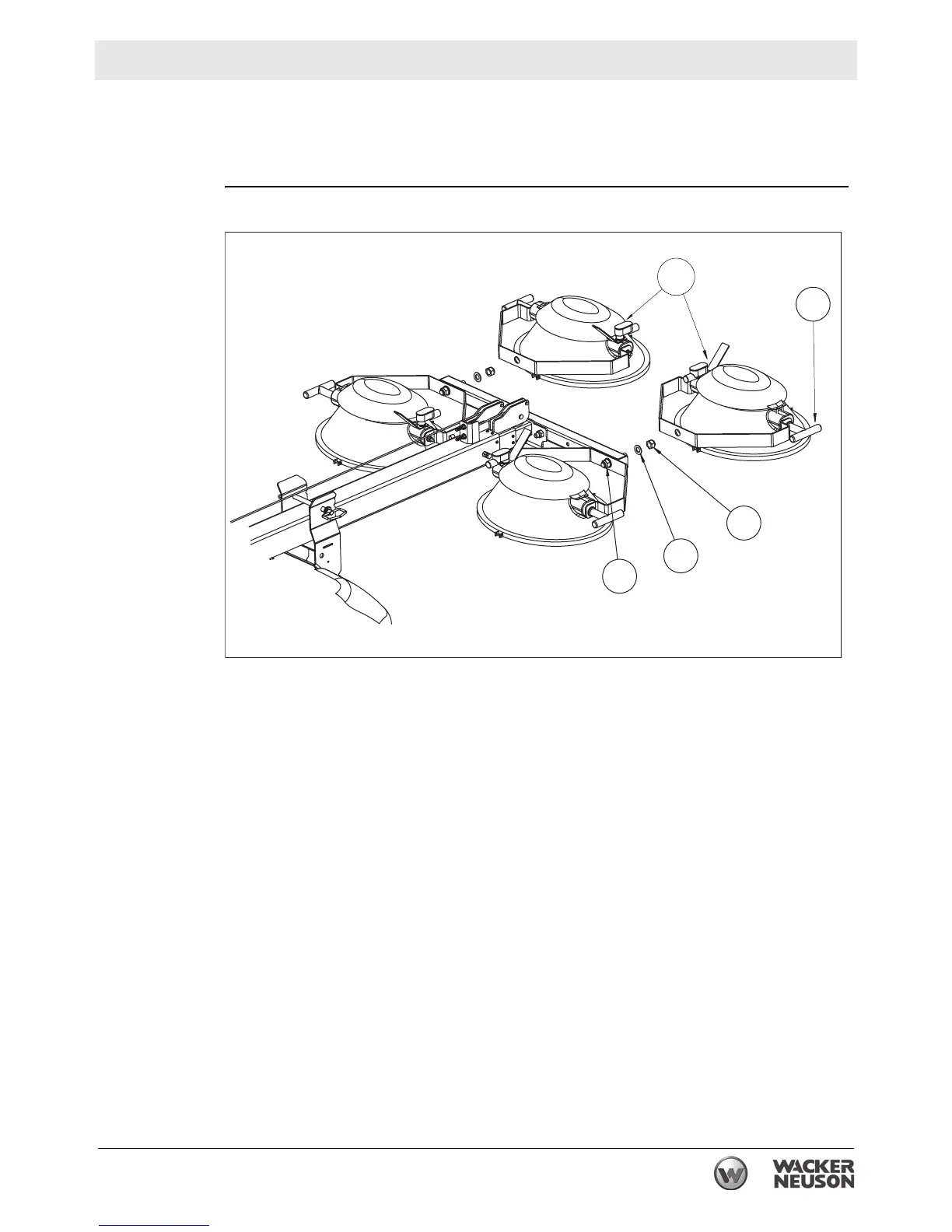

Install the two upper light fixtures (CC) on the light tube as follows:
1. Position each light fixture on the mounting bolt (CC1) so that the lamp is facing
downward. Make sure that the “T” handle (CC4) faces outward.
2. Fasten each light fixture to the light tube using an M18 lock nut (CC3) and a B19
flat washer (CC2).
wc_gr007981
CC3
CC4
CC1
CC2
CC
To Next Page
