Appendix III—Standard Pallet Assembly LTN
76 wc_tx001214gb.fm

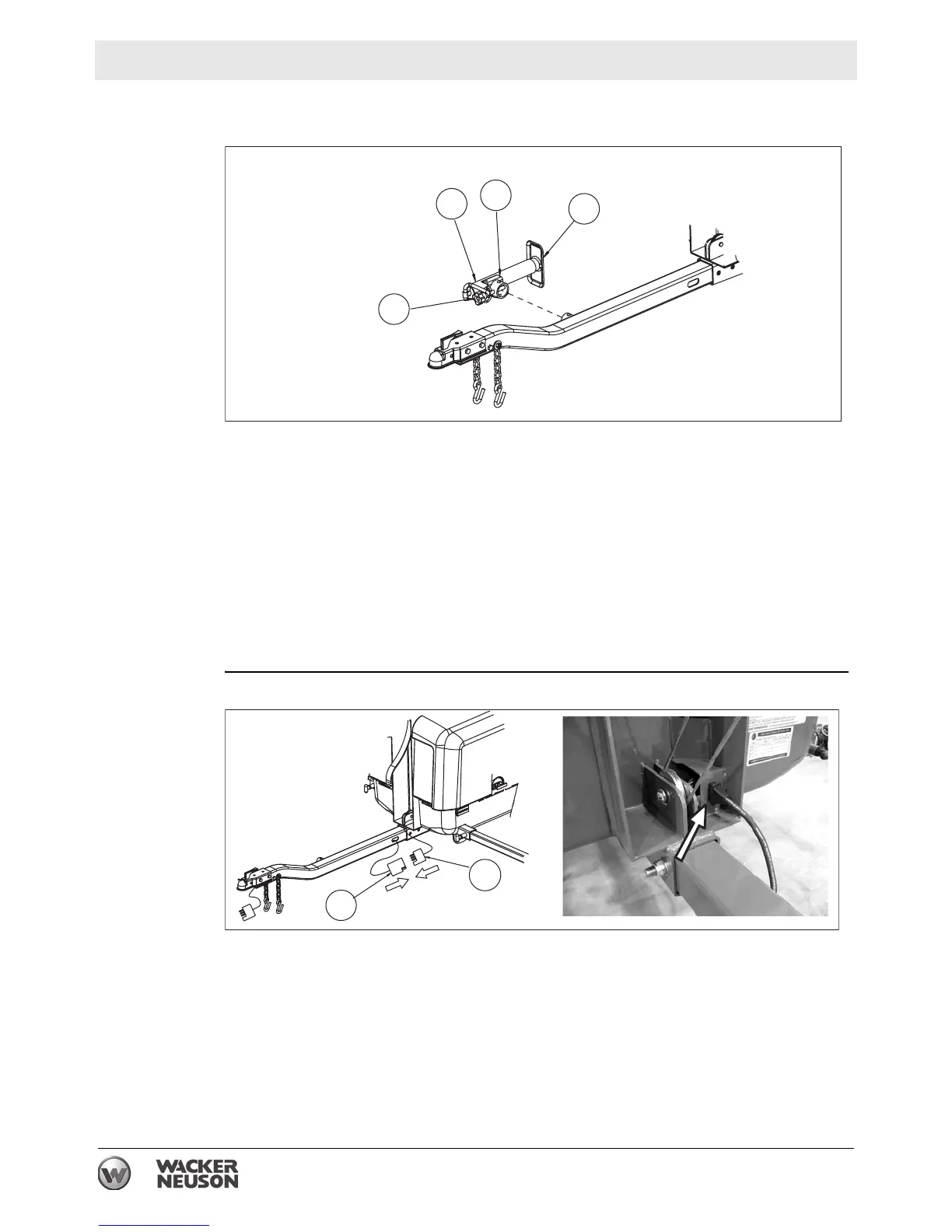

Installing the
tongue jack
Follow the procedure below to Install the tongue jack.
1. Locate the 2000 lb. 10-inch travel jack (“tongue jack”) (J).
2. If necessary, remove the locking pin (J3) from the holes in the tongue jack.
3. Fit the socket (J1) over the circular boss on the tongue assembly.
4. Rotate the tongue jack so that the foot (J2) rests on the ground.
5. Align the top hole in the socket with the top hole on the circular boss.
6. Insert the locking pin into the holes. Push the locking pin through both sets of
holes (top and bottom) to fasten the tongue jack in place.
Connecting
the trailer
wiring
1. Locate connectors (K) and (L).
2. Plug the tongue wiring harness connector (K) into tongue wiring harness
connector (L).
3. Insert connector plug body into the hole on the skid bracket. (See arrow.)
wc_gr006524
J3
J
J1
J2
K
wc_gr006525
L
