Operation LTN 6L
46 wc_tx000766gb.fm

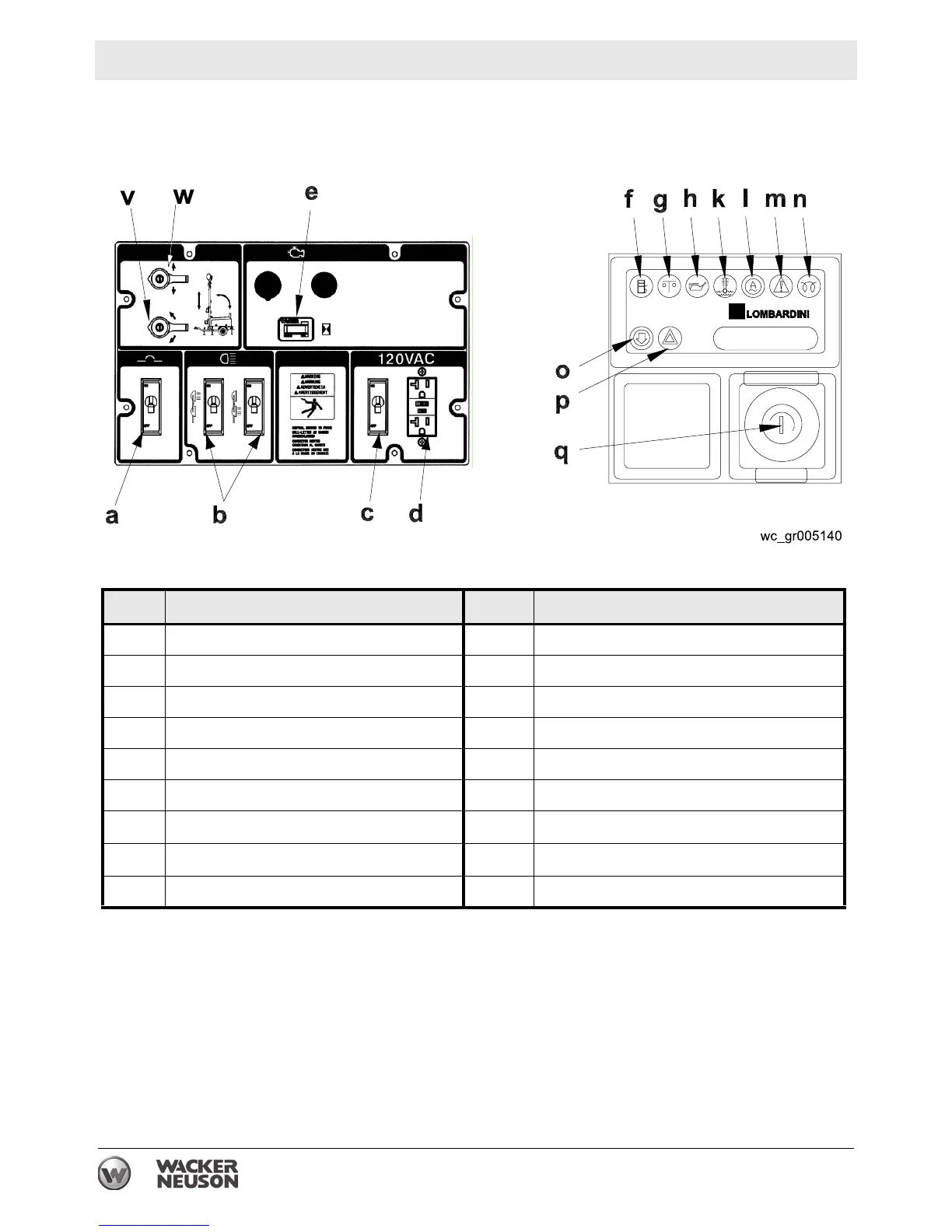

4.12 Control Panels (Power Winch System)
Floodlight Control Panel Engine Control Panel
Ref. Description Ref. Description
a 50 Amp circuit breaker l Alternator indicator
b 30 Amp lights circuit breaker m Auxiliary light (not used)
c 20 Amp GFI circuit breaker n Glow plug indicator
d 20 Amp GFI receptacle o Air filter restriction indicator
e Hour meter p Auxiliary light (not used)
f Low fuel indicator (not used) q Key access door
g Safety shutdown indicator v
Tilt rotary switch
h Low oil pressure shutdown w
Telescope rotary switch
k High coolant temperature shutdown
