13.7 Installing the Tower Lock Bracket
Procedure
Follow the procedure below to Install the tower lock bracket.
1. Locate the following in hardware bag 5:
(1) tower lock bracket (M)
(3) M8 x 20 hex head mounting screws (N)
(3) M8 flat washers (O)
(3) M8 lock nuts (P)

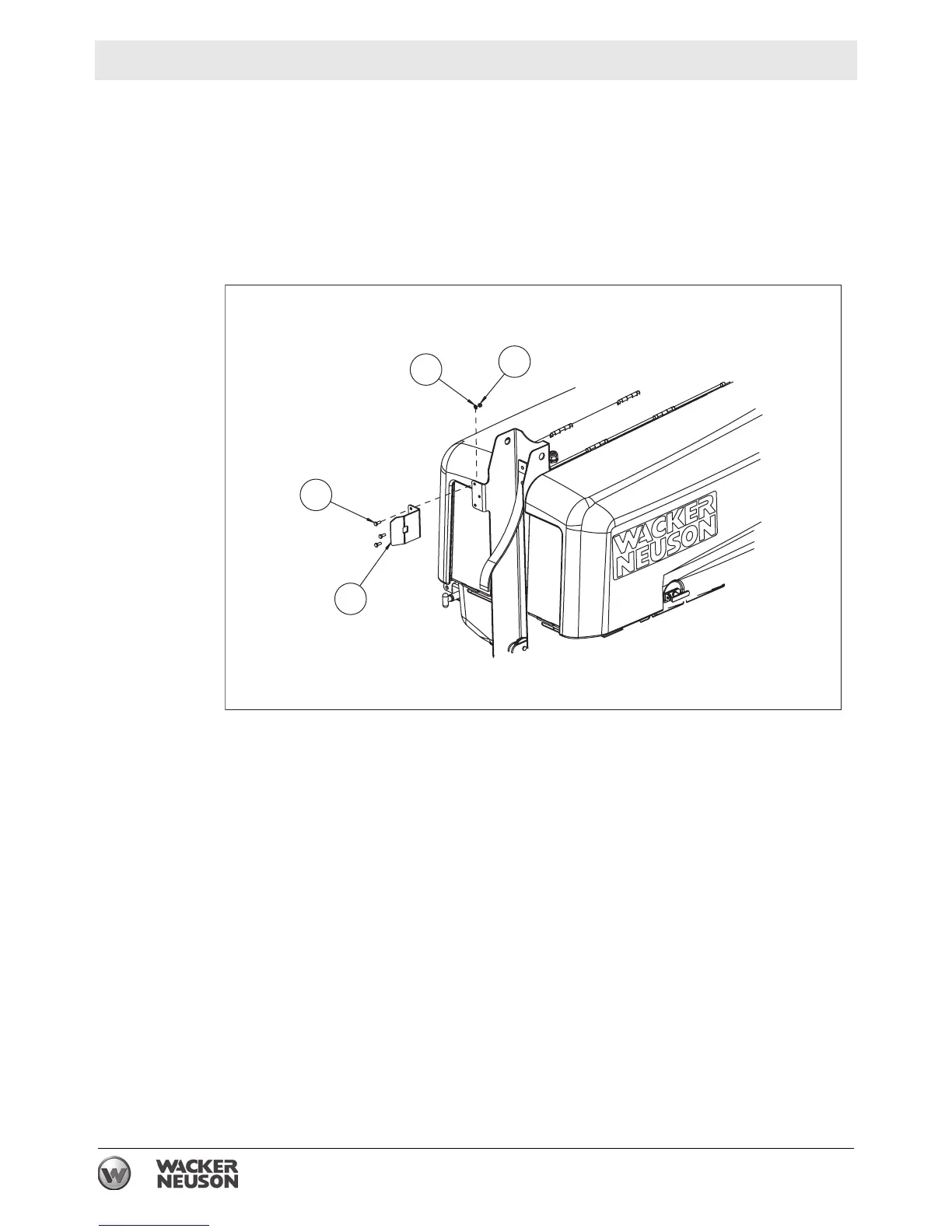

2. Install the tower lock bracket on the tower as shown.
3. Torque the mounting screws to 35 Nm (25 ft.lbs.).
wc_gr006526
M
N
O
P
To Next Page
