LTN Assembly Appendix VI—CE Racked Assembly
wc_tx001217gb.fm 109
14.7 Attaching the Light Mount Bracket and Light Bar
Materials
needed
Light mount bracket (HH)
Light bar (BB)
Hardware Bag 6 (Tower Lights Hardware)
Procedure
Follow the procedure below to attach the light mount bracket and light bar to the
tower.
Attaching the
light mount
bracket
1. Attach the light mount bracket to the tower using the following hardware:
(2) M16 x 40 hex head screws (JJ)
(2) M16 hex nuts (KK)
(2) M8 x 20 hex head screws (NN)
(2) B8.4 flat washers (OO)
M8 lock nuts (MM)
Torque the M16 screws to 83 Nm (60 ft.lbs.). Torque the M8 screws to 24 Nm
(18 ft.lbs.).
Attaching the
light bar
2. Attach the light bar to the light mount bracket using (2) M16 x 90 screws (BB1),
(2) B17 flat washers (BB2), and (2) M16 lock nuts (BB3). Torque the screws to
83 Nm (60 ft.lbs.)

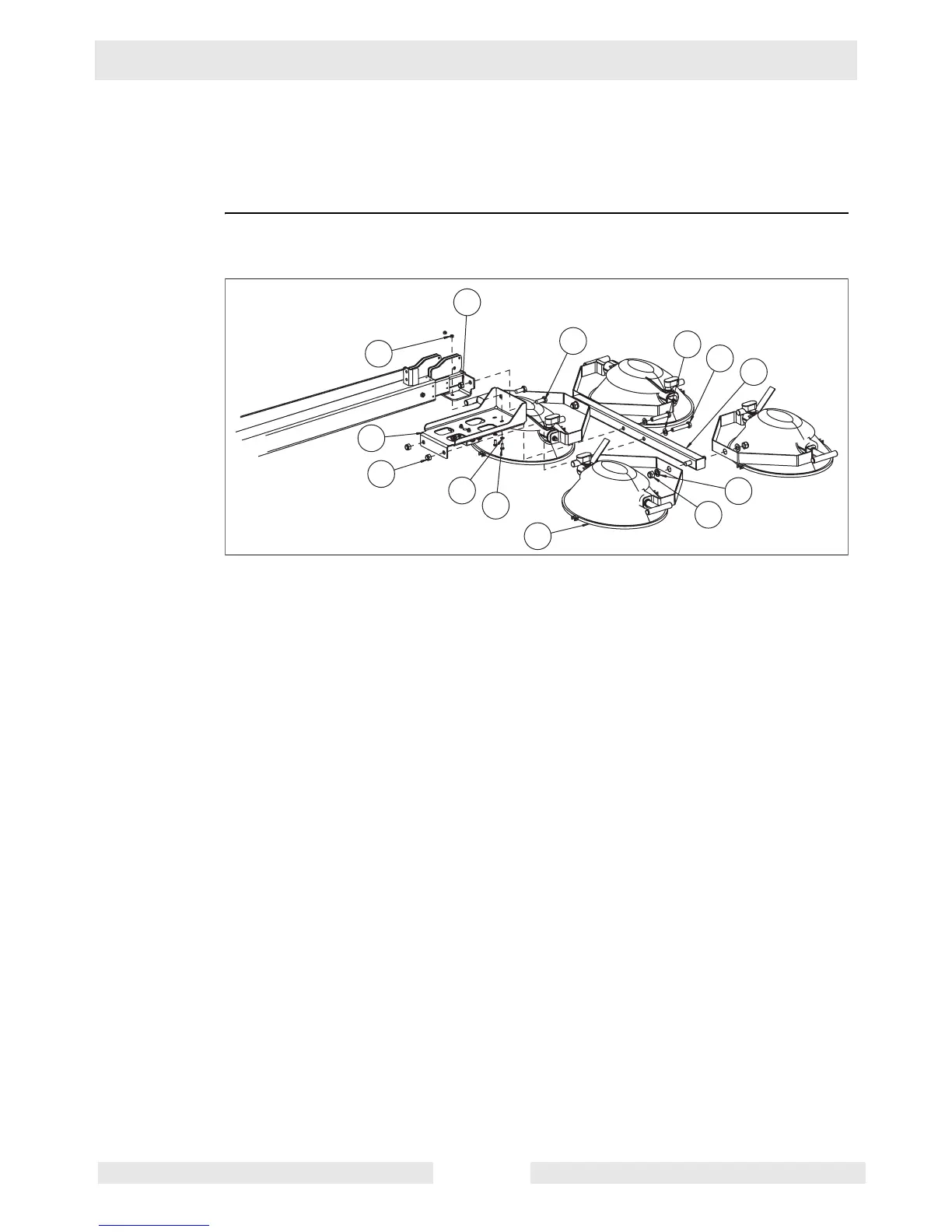

wc_gr006539
BB
CC
NN
OO
LL
HH
MM
KK
JJ
BB1
BB2
CC2
CC1
To Next Page
