Appendix III—Standard Pallet Assembly LTN
72 wc_tx001214gb.fm

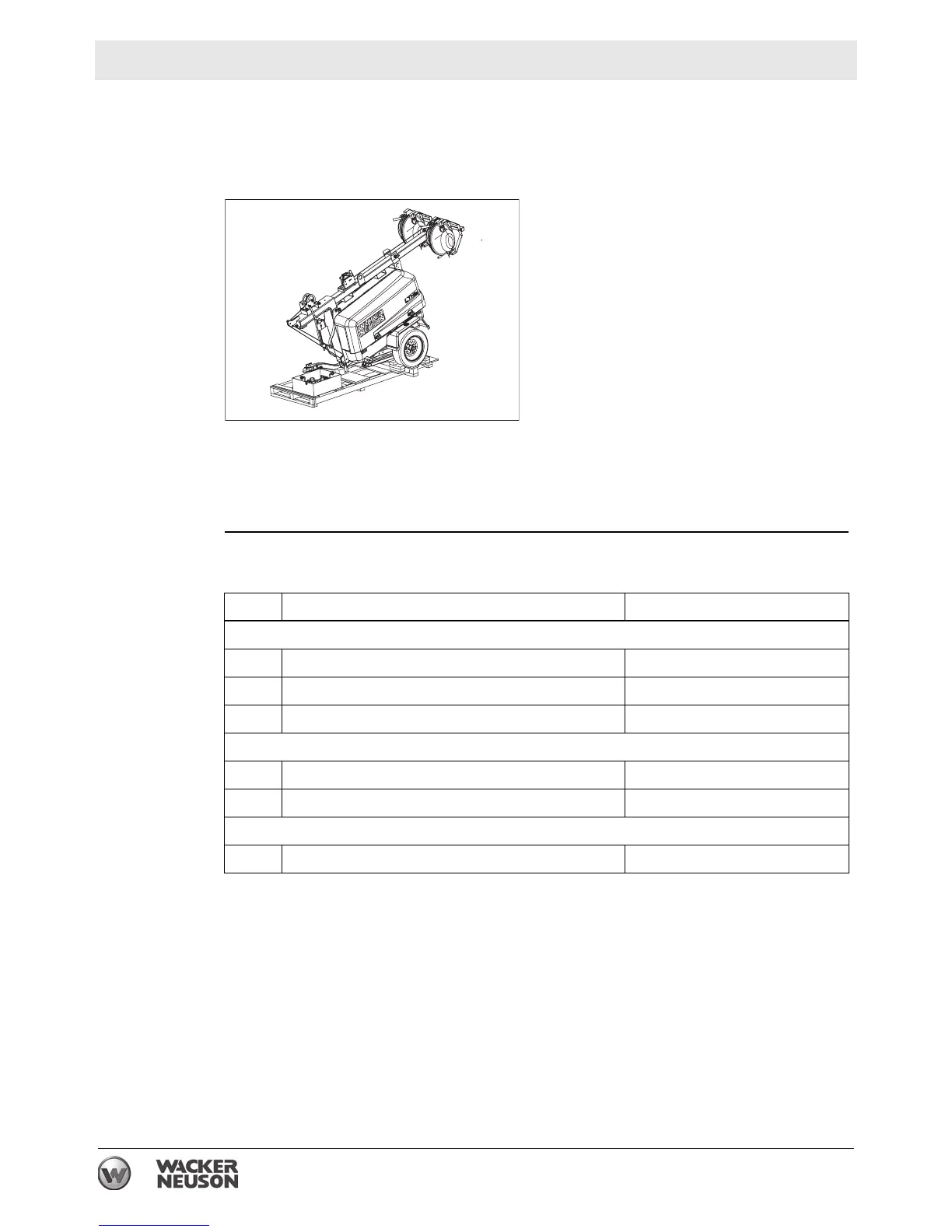

11 Appendix III—Standard Pallet Assembly
Scope
This set of assembly instructions applies to standard machines shipped on a pallet
as shown below.
If your machine does not look like the one shown in the illustration, refer to Machine
Identification in the Introduction chapter to identify the appropriate set of assembly
instructions.
Tasks
To complete the assembly of your Light Tower, the following tasks must be
performed in the order listed:
Tools and
materials
The following tools and materials are needed:
Basic hand tools (wrenches, screwdrivers, etc.)
Torque wrench
Hardware bag: 7
wc_gr006467
Task Description See topic
Outriggers and jacks assembly
1 Install the outriggers 11.1
2 Install the outrigger jacks 11.1
3 Install the rear jack 11.2
Tongue assembly
4 Install the tongue 11.3
5 Install the tongue jack 11.3
Upper light installation
6 Install the upper light fixtures 11.4
