LTN 6L Operation
wc_tx000766gb.fm 31
4 Operation
4.1 Locating Trailer

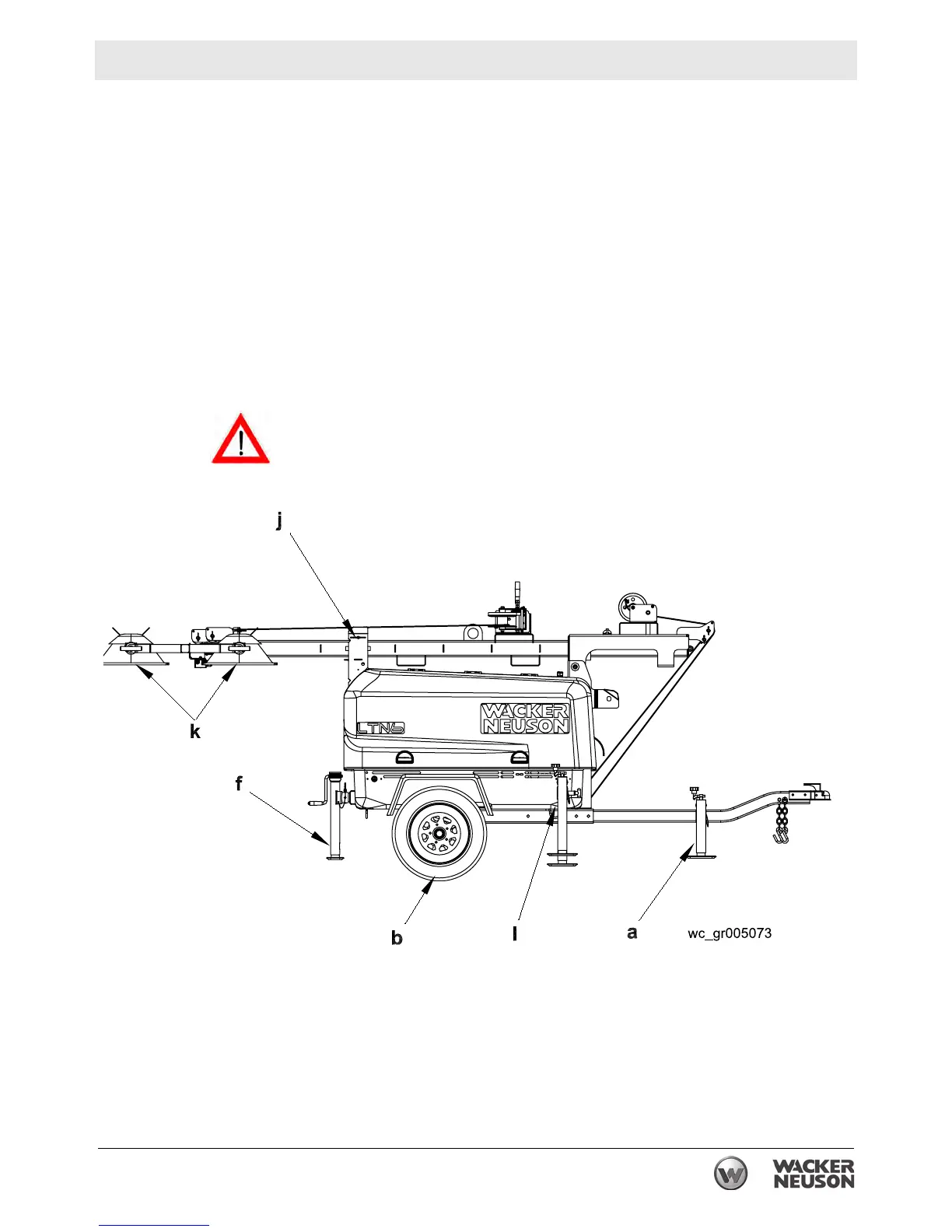

See Graphic: wc_gr005073
4.1.1 For maximum light coverage locate the Light Tower at ground level or
in a spot higher than the area being lighted.
4.1.2 Position the trailer on a firm, flat surface clear of overhead wires and
obstructions. Be sure that there is enough area for outrigger
extensions to be fully extended.
4.1.3 Connect the ground stud (l) located on the trailer frame to a good
earthen ground. Consult local codes for proper grounding techniques.
The tower extends up to 9 m (30 ft.). Make sure the area above the
trailer is open and clear of overhead wires and obstructions.
WARNING
