LTN 6L Maintenance
wc_tx000767gb.fm 53

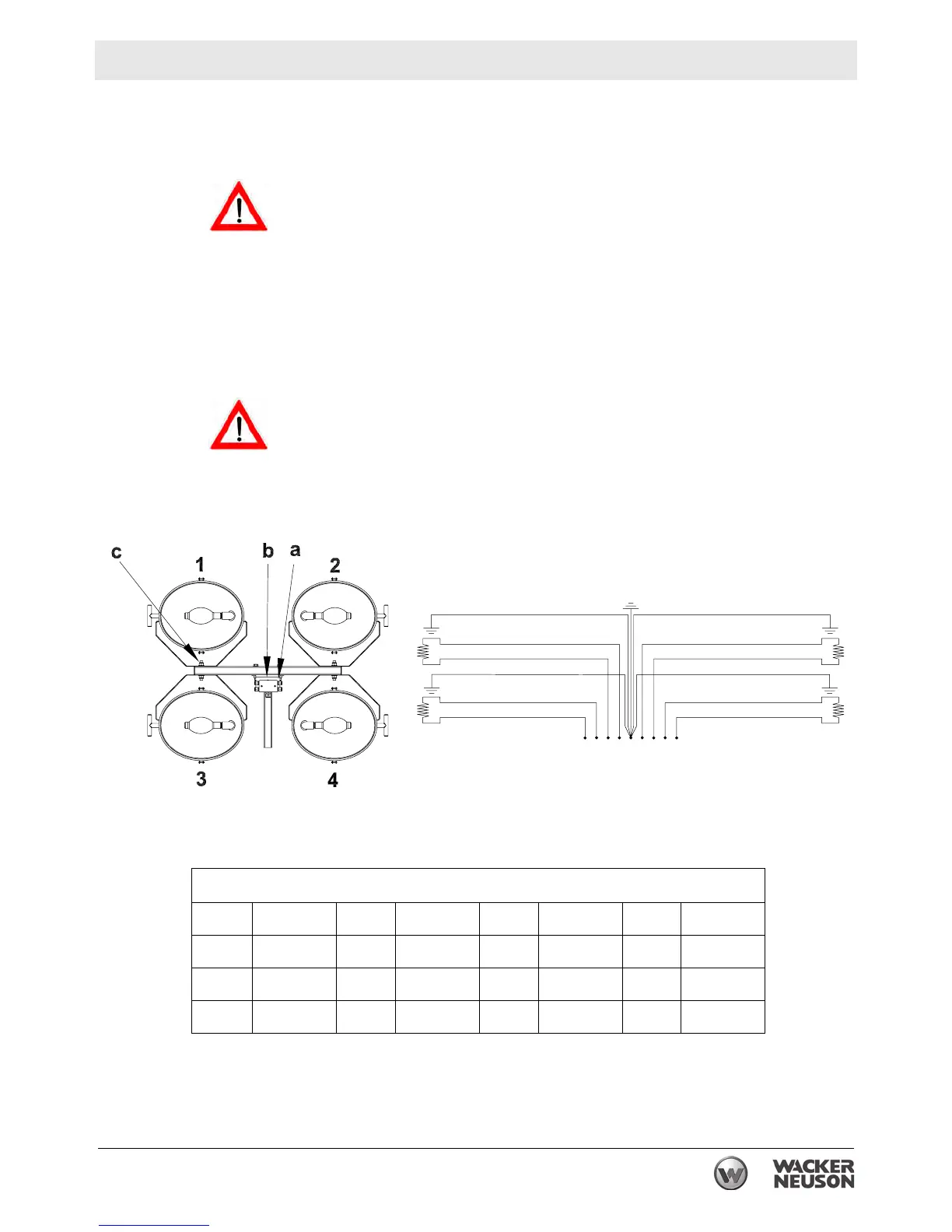

6.2 Installing / Removing Light Fixtures
See Graphic: wc_gr005376
Always turn off light circuit breakers and shut down engine before
disconnecting light fixtures or changing lamps.
Remove fixtures by disconnecting electrical cords at the junction box
(b). Remove nuts (c) from fixture mounting brackets and remove both
fixture and bracket off stud.
NOTICE: Only a trained technician should be allowed to install and
remove fixture wiring.
.
Lamps become extremely hot in use! Allow lamp and fixture to cool
10-15 minutes before handling.
Numbering Sequence of Floodlights Junction Box Wiring for Floodlights
Wire Colors
BK Black RD Red YL Yellow OR Orange
GN Green TN Tan BR Brown PU Purple
BU Blue VIO Violet CL Clear SH Shield
PK Pink WH White GY Gray LB Lt. blue
WARNING
WARNING
wc_gr005376
2
GN
WH
GN
BL
4
WH
BL
GN
WH
GN
BL
1
WH
3
BL
