Appendix V—Standard Racked Assembly LTN
88 wc_tx001216gb.fm
13.6 Installing the Tongue Assembly
Scope
Installing the tongue assembly consists of installing the tongue and the tongue
jack, and connecting the trailer wiring.
Installing the
tongue
Follow the procedure below to Install the tongue.

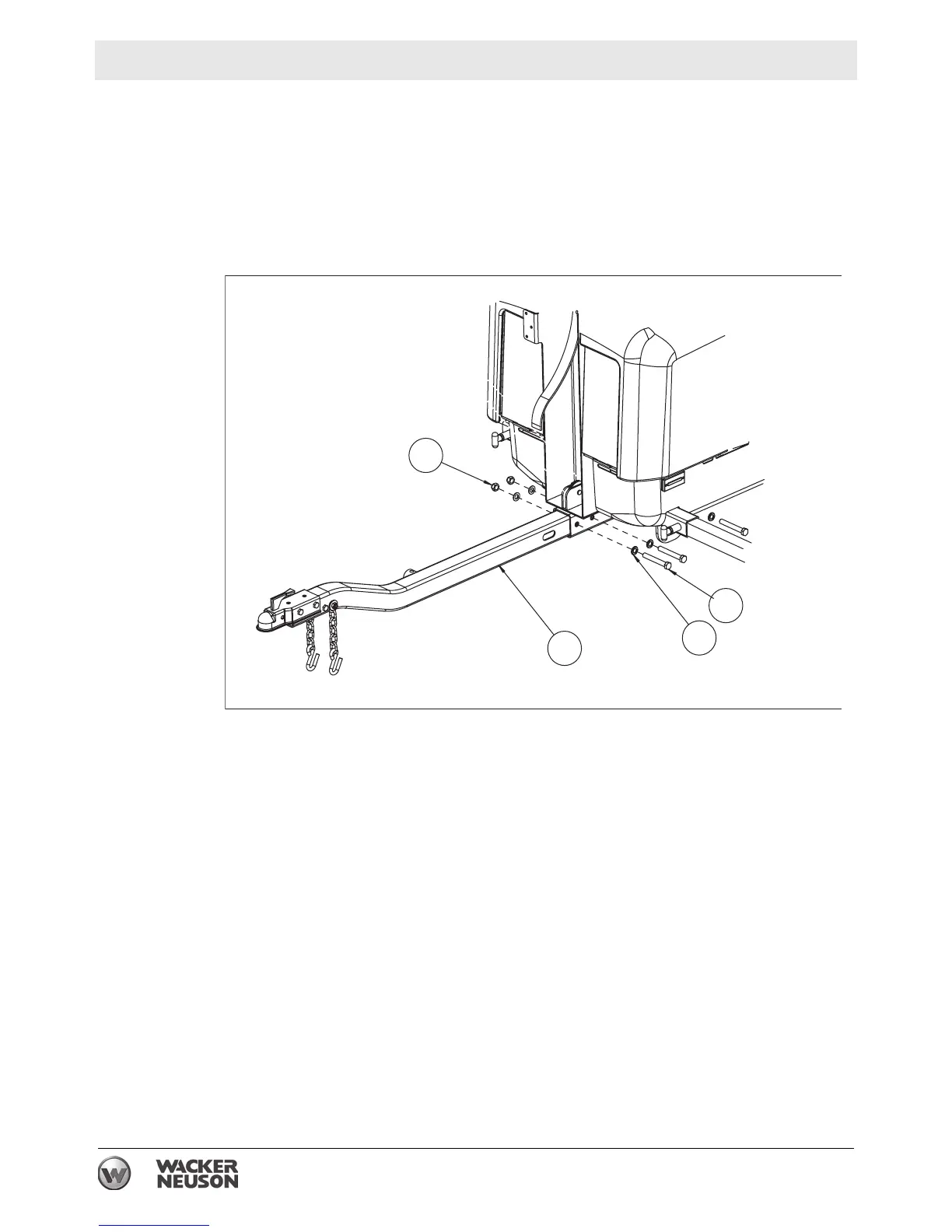

1. Insert the tongue (H) into the sleeve at the front of the trailer.
2. Fasten the tongue to the sleeve using the following hardware from Bag 7:
(3) M16 x 120 screws (E)
(6) B17 flat washers (F)
(3) M16 lock nuts (G)
Torque the fasteners to 200 Nm (145 ft.lbs.)
H
F
G
E
wc_gr006523
