Lifting the Machine LTN 6L
30 wc_tx001375gb.fm
3 Lifting the Machine
3.1 Procedure

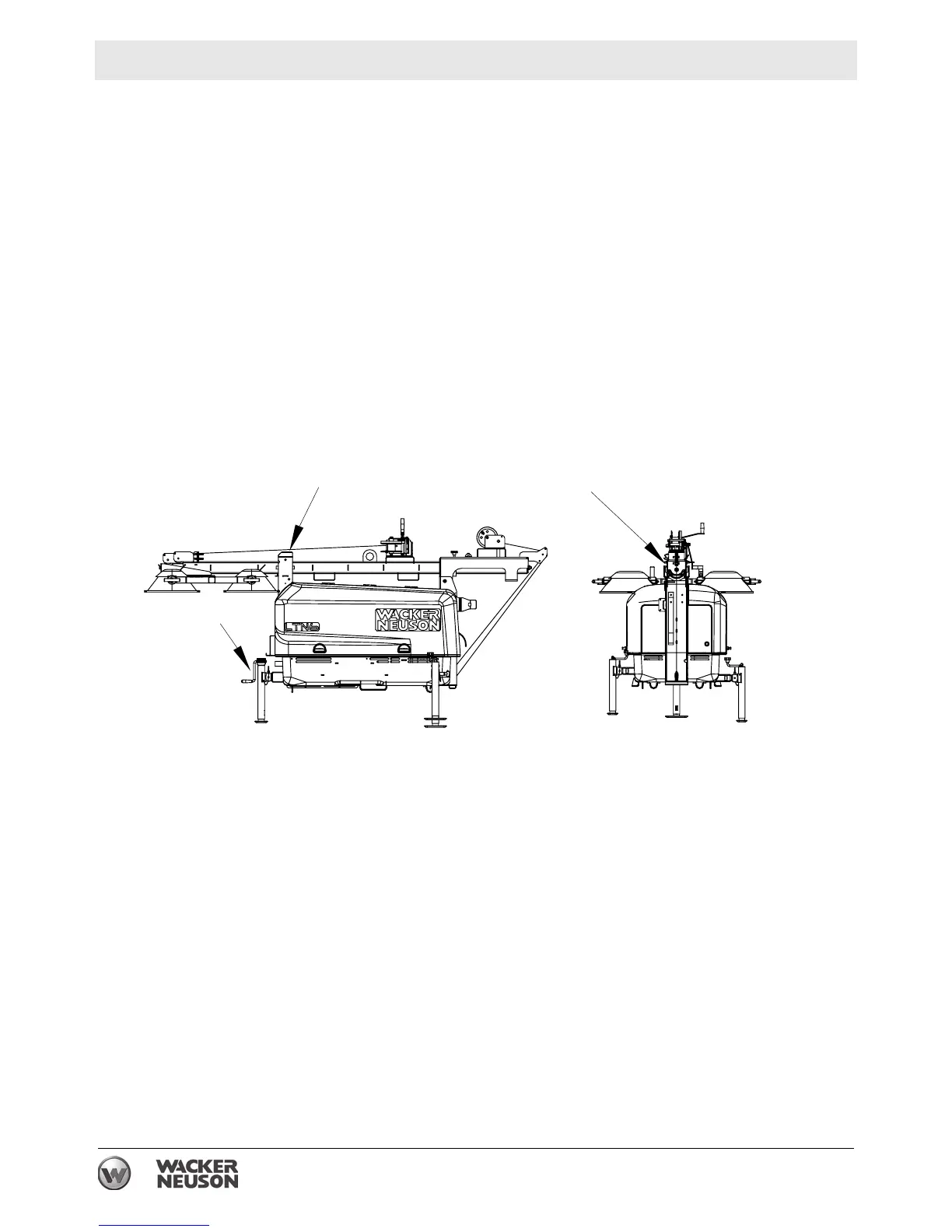

See Graphic: wc_gr005415
3.1.1 Check that the tower cradle lock pin (a) is in place and secured with
the safety pin.
3.1.2 Ensure that the tower is completely nested inside the transport cradle
and the pin (b) is secure.
3.1.3 Make sure the doors are properly latched.
3.1.4 Return the outriggers to their travel position. Check that the outrigger
bars and jacks are locked in place.
3.1.5 Crank the rear jack (c) all the way in and rotate it 90°.
The Light Tower is now ready to lift.
