LTN Assembly Appendix VI—CE Racked Assembly
wc_tx001217gb.fm 115
Terminal strip “A” (right side of machine)
Terminal strip “B” (left side of machine)
Position Wire description
A–F Not used
G Black / yellow from ballasts #1 and #2
H Black (#7) from control box
I Yellows (2) from ballast #1
J Yellows (2) from ballast #2
K White (#9) from control box
L Brown and orange from coil cord
Position Wire description
A Black / yellow from ballasts #3 and #4
B Black (#6) from control box
C Yellows (2) from ballast #3
D Yellows (2) from ballast #4
E White (#8) from control box
F White and purple from coil cord
G–L Not used

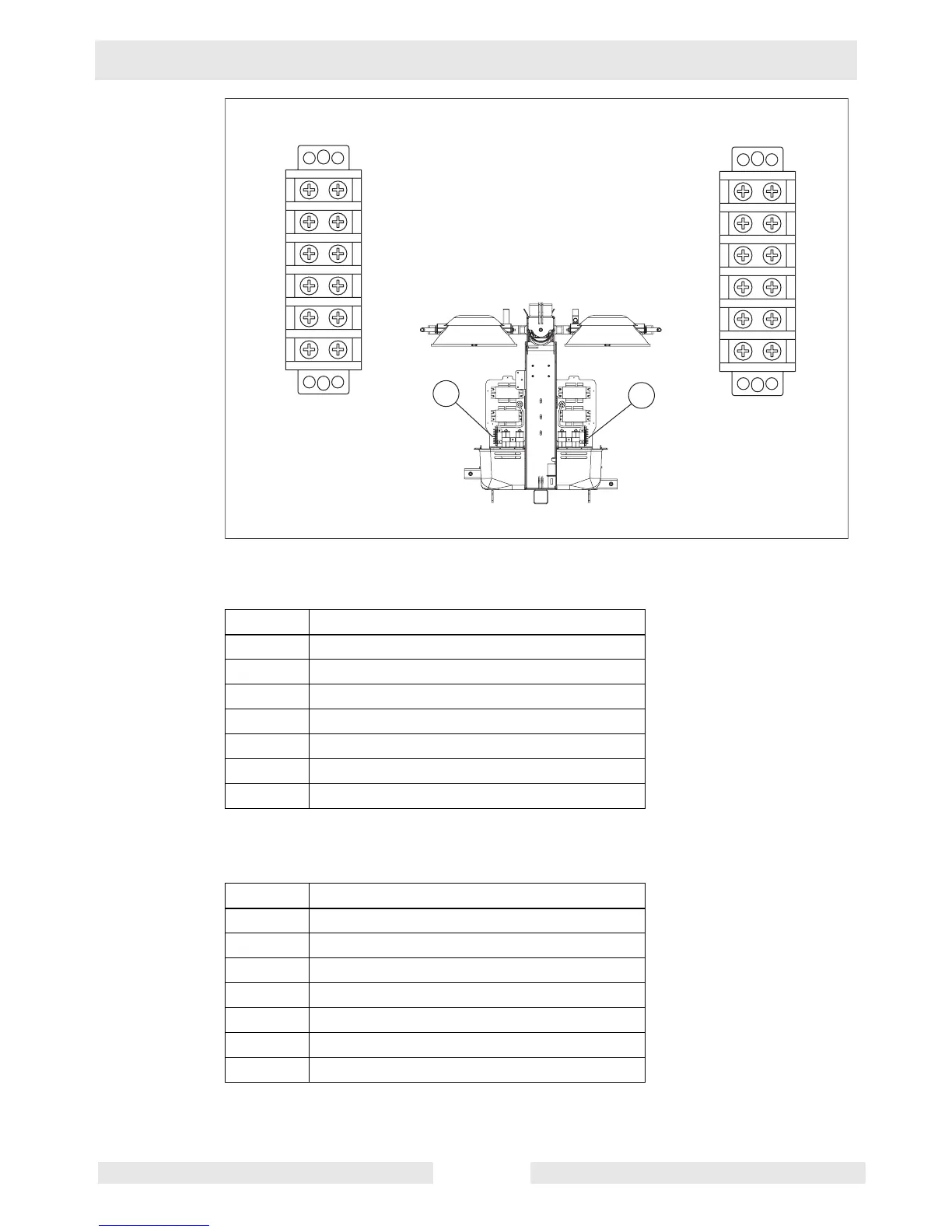

wc_gr006538
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
I
I
J
J
K
K
L
L
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
I
I
J
J
K
K
L
L
A
“A” “B”
B
