Operation
Auto Mode (Auto Start/Stop) (if equipped) 7.13
73
[en-US] | 02/2023 | 5100065071 | LTV 4L/6L | Operator’s Manual
Operator Editor Parameters for Auto Start by Scheduler
923 Start Time #4 Scheduler 00:00:00 (Hr:Mins:Sec, 24 hr format)
924 Start Day #4 Scheduler (1) M, (2) TU, (3) W, (4) TH, (5) FR, (6) SA, (7) SU
925 Start Week #4 Scheduler (1), (2), (3), (4) (2, 3, 4 are for Monthly mode only)
926 Run Duration #4 Scheduler 00:00:00 (Hrs:Mins:Sec)
927 Auto Mode #5 Scheduler (0) = Scheduler, (1) = Location ((1) Clears all Scheduler entries)
928 Load Mode #5 Scheduler (0) Run, No-Lamps, (1) Run w-Lamps, (2) No Run, Lamps Op Only
929 Start Time #5 Scheduler 00:00:00 (Hr:Mins:Sec, 24 hr format)
930 Start Day #5 Scheduler (1) M, (2) TU, (3) W, (4) TH, (5) FR, (6) SA, (7) SU
931 Start Week #5 Scheduler (1), (2), (3), (4) (2, 3, 4 are for Monthly mode only)
932 Run Duration #5 Scheduler 00:00:00 (Hrs:Mins:Sec)
933 Auto Mode #6 Scheduler (0) = Scheduler, (1) = Location ((1) Clears all Scheduler entries)
934 Load Mode #6 Scheduler (0) Run, No-Lamps, (1) Run w-Lamps, (2) No Run, Lamps Op Only
935 Start Time #6 Scheduler 00:00:00 (Hr:Mins:Sec, 24 hr format)
936 Start Day #6 Scheduler (1) M, (2) TU, (3) W, (4) TH, (5) FR, (6) SA, (7) SU
937 Start Week #6 Scheduler (1), (2), (3), (4) (2, 3, 4 are for Monthly mode only)
938 Run Duration #6 Scheduler 00:00:00 (Hrs:Mins:Sec)
939 Auto Mode #7 Scheduler (0) = Scheduler, (1) = Location ((1) Clears all Scheduler entries)
940 Load Mode #7 Scheduler (0) Run, No-Lamps, (1) Run w-Lamps, (2) No Run, Lamps Op Only
941 Start Time #7 Scheduler 00:00:00 (Hr:Mins:Sec, 24 hr format)
942 Start Day #7 Scheduler (1) M, (2) TU, (3) W, (4) TH, (5) FR, (6) SA, (7) SU
943 Start Week #7 Scheduler (1), (2), (3), (4) (2, 3, 4 are for Monthly mode only)
944 Run Duration #7 Scheduler 00:00:00 (Hrs:Mins:Sec)
945 Auto Mode #8 Scheduler (0) = Scheduler, (1) = Location ((1) Clears all Scheduler entries)
946 Load Mode #8 Scheduler (0) Run, No-Lamps, (1) Run w-Lamps, (2) No Run, Lamps Op Only
947 Start Time #8 Scheduler 00:00:00 (Hr:Mins:Sec, 24 hr format)
948 Start Day #8 Scheduler (1) M, (2) TU, (3) W, (4) TH, (5) FR, (6) SA, (7) SU
949 Start Week #8 Scheduler (1), (2), (3), (4) (2, 3, 4 are for Monthly mode only)
950 Run Duration #8 Scheduler 00:00:00 (Hrs:Mins:Sec)
Auto-run with photo cell
1. Enter the editor mode.
2. Press and hold the Stop (3) and Auto (4) buttons simultaneously.

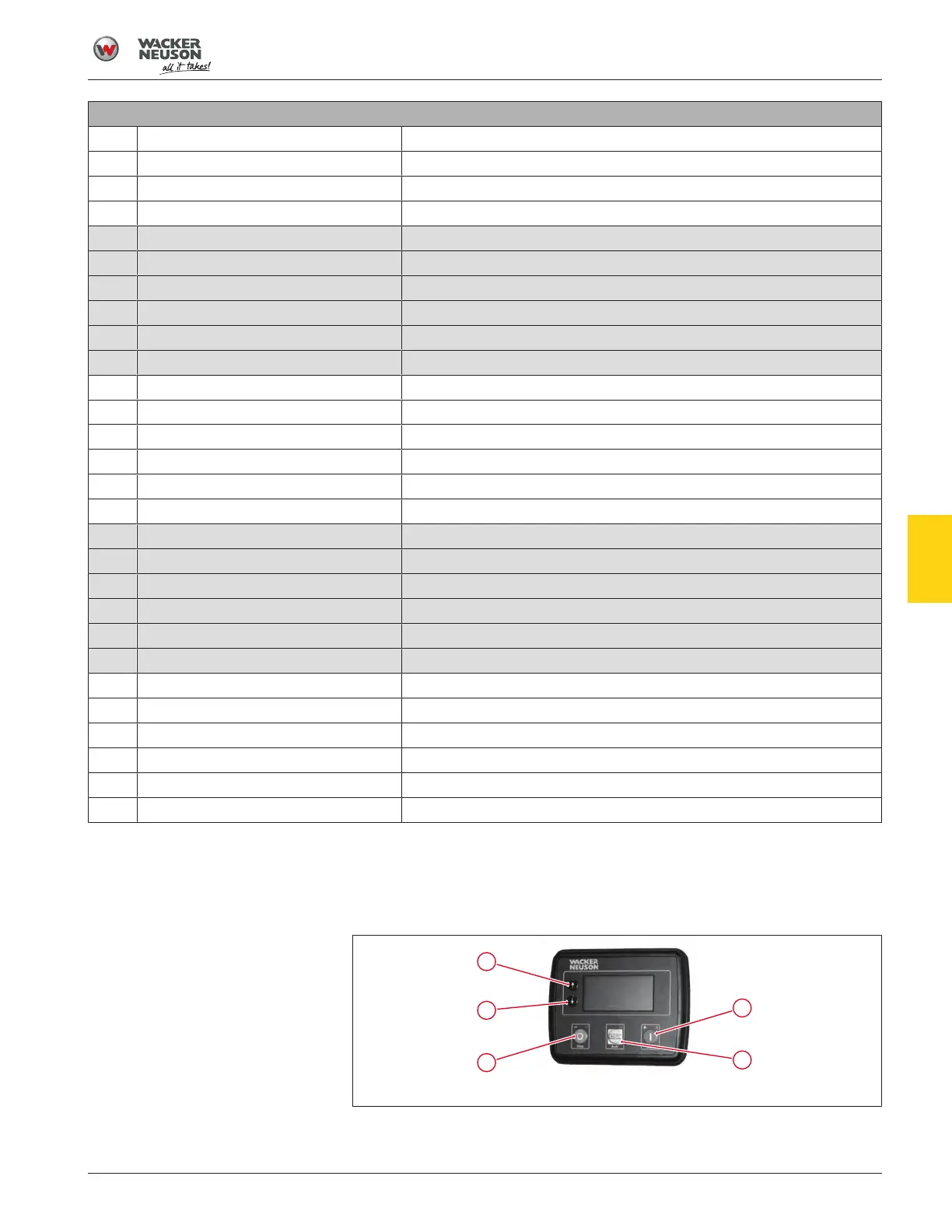

Fig.43: Controller buttons
3. Press the up (1) or down (2) arrows to select the Configuration Editor
(wrench icon). Refer to the following table.
