Wacker Neuson RD24 User Manual

Maintenance
Transmission
156
BA RD24_RD27 en 04
7
3
4 5 6
2
1

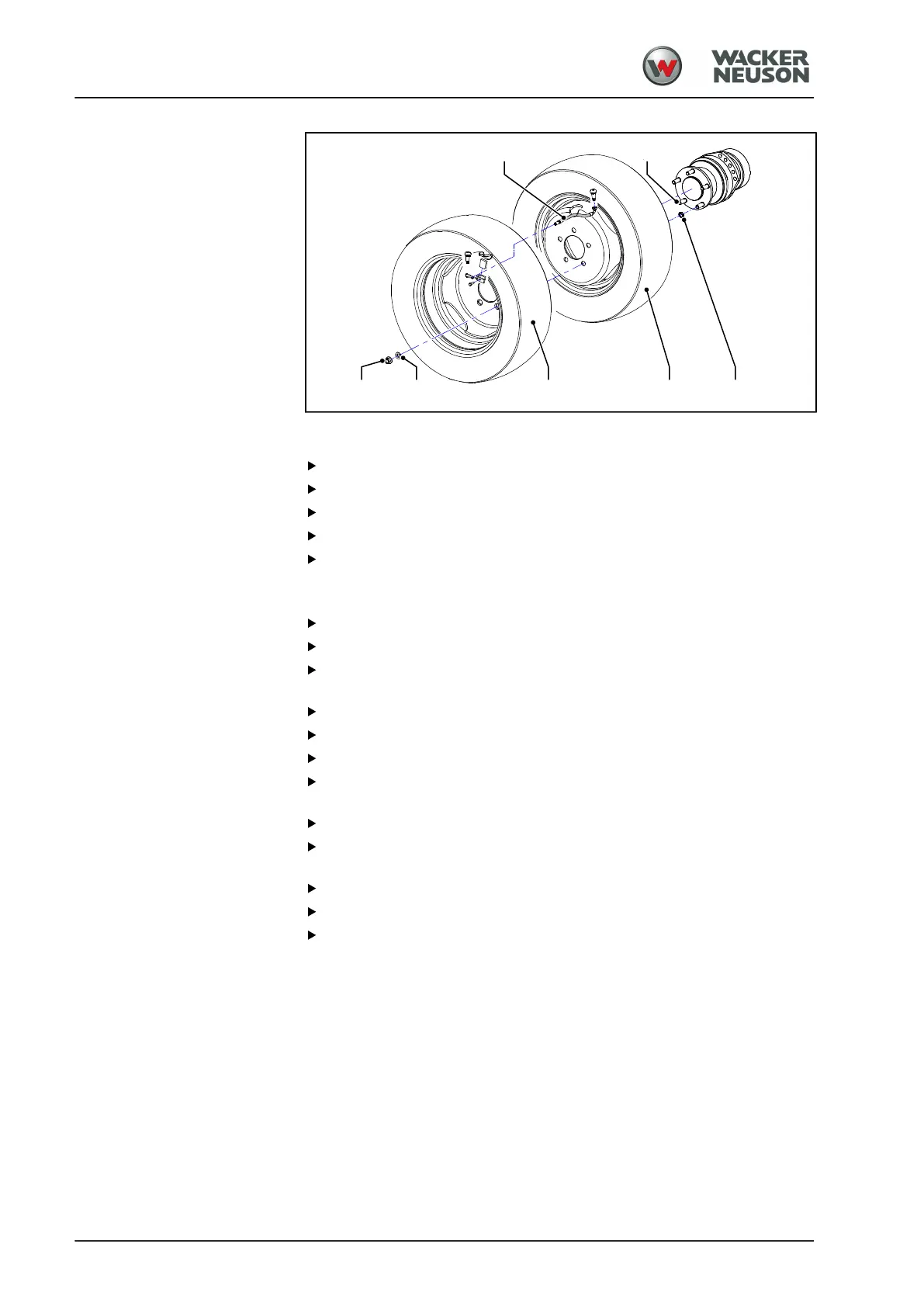

Disassembly
Press the valve extension hose [1] out of the fixing device.
Loosen and unscrew the wheel nuts [2].
Remove the circlips [3].
Remove the wheels [4, 5] from the wheel hub.
Remove the centring rings [6] from the tyre bolt [7].
Assembly
Clean/derust the contact surfaces between the wheel and hub.
Clean/derust wheel nuts [2], retaining rings [3] and centring rings [6].
Lead the valve extension hose [1] through the cutout of the rim
outwards.
Put the centring rings [6] on the tyre bolts [7].
Put the inner wheel [5] to the tyre bolts [7] on the wheel hub.
Put the outer wheel [4] on the tyre bolt [7] so that both valves align.
Lead the valve extension hose [1] through the cutout of the rim
outwards.
Put the circlip [3] on the tyre bolt [7].
Screw the wheel nuts [2] onto the tyre bolts [7] and tighten them by
applying the specified torque.
Press the valve extension hose [1] back in the fixing device.
Lift the machine and remove the liners.
Put machine down, so that wheels may be in contact with the ground.
