Operating manual Manual powder spray gun PEM-X1
5 Description
18 Order number 2326020 | Edition 10/2022
5 DESCRIPTION

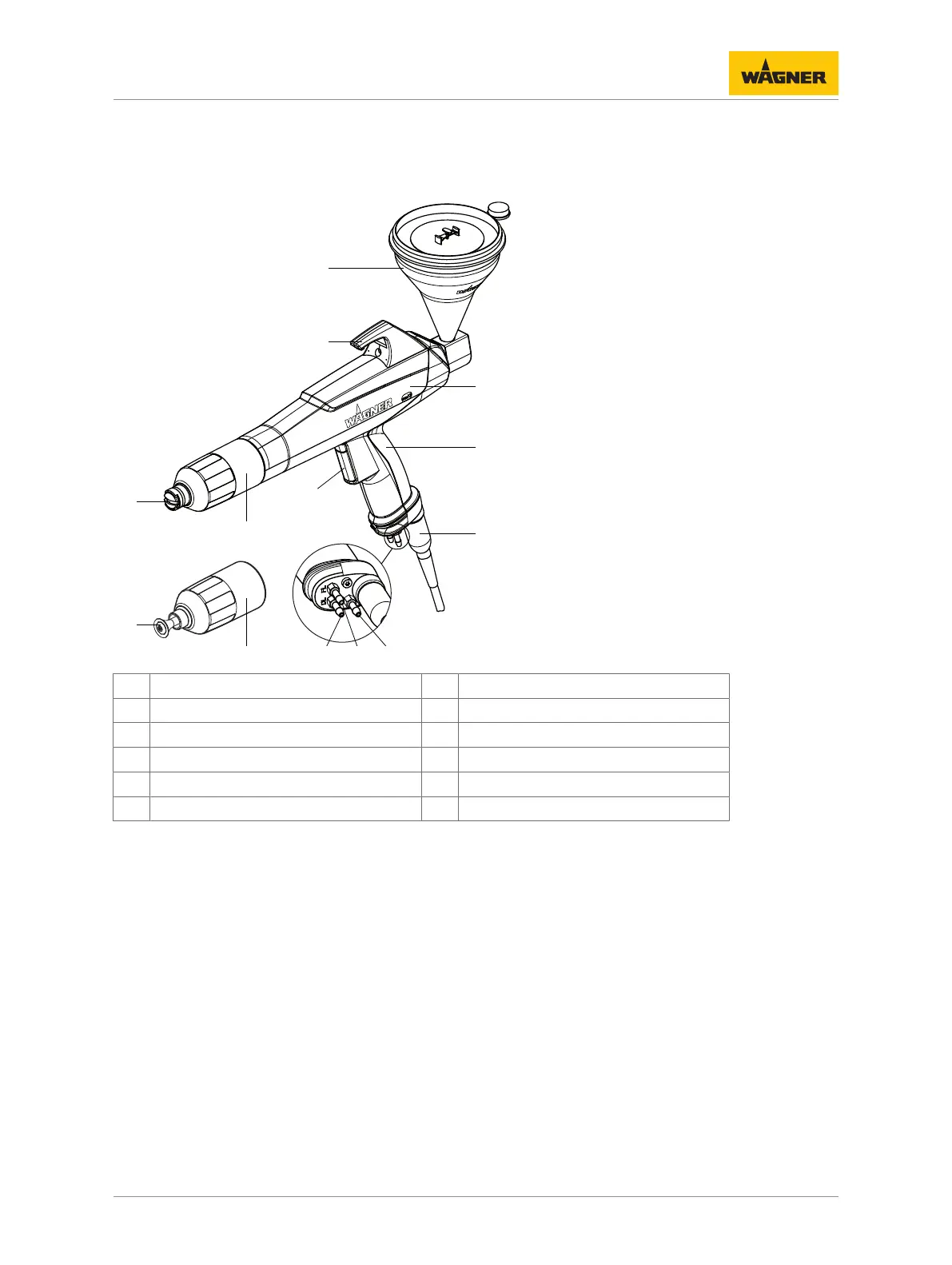

5.1 DESIGN OF THE MANUAL GUN
1
2
3
10
9
6
P_01663
5
4
7
6
11
8
1 Suspension hook 7 Round jet nozzle
2 Handle 8 Atomizer air connection
3 Electrical Connection Cable 9 Flat jet nozzle
4 Powder hose connection 10 Buttons to adjust the powder quantity
5 Trigger lever 11 Spray gun body
6 Union nut
5.2 MODE OF OPERATION OF THE MANUAL GUN
High voltage is activated in the manual gun when the trigger is actuated!
The powder supply and air supply to the gun are activated at the same time.
To secure the manual gun, the control unit must be switched off. To prevent electrostatic
flashover, the union nut for securing the nozzles is designed with a labyrinth.
5.3 EXTENT OF DELIVERY
Stk Order no. Designation
1 2322587 PEM-X1 manual gun with flat jet nozzle
1 2335844 PEM-X1 manual gun with a round jet nozzle
-- Nozzle set
The standard equipment includes:
1 2326024 Declaration of Conformity
1 2326019 Operating manual, in German
1 see Chapter Languages [87] Operating manual in local language
