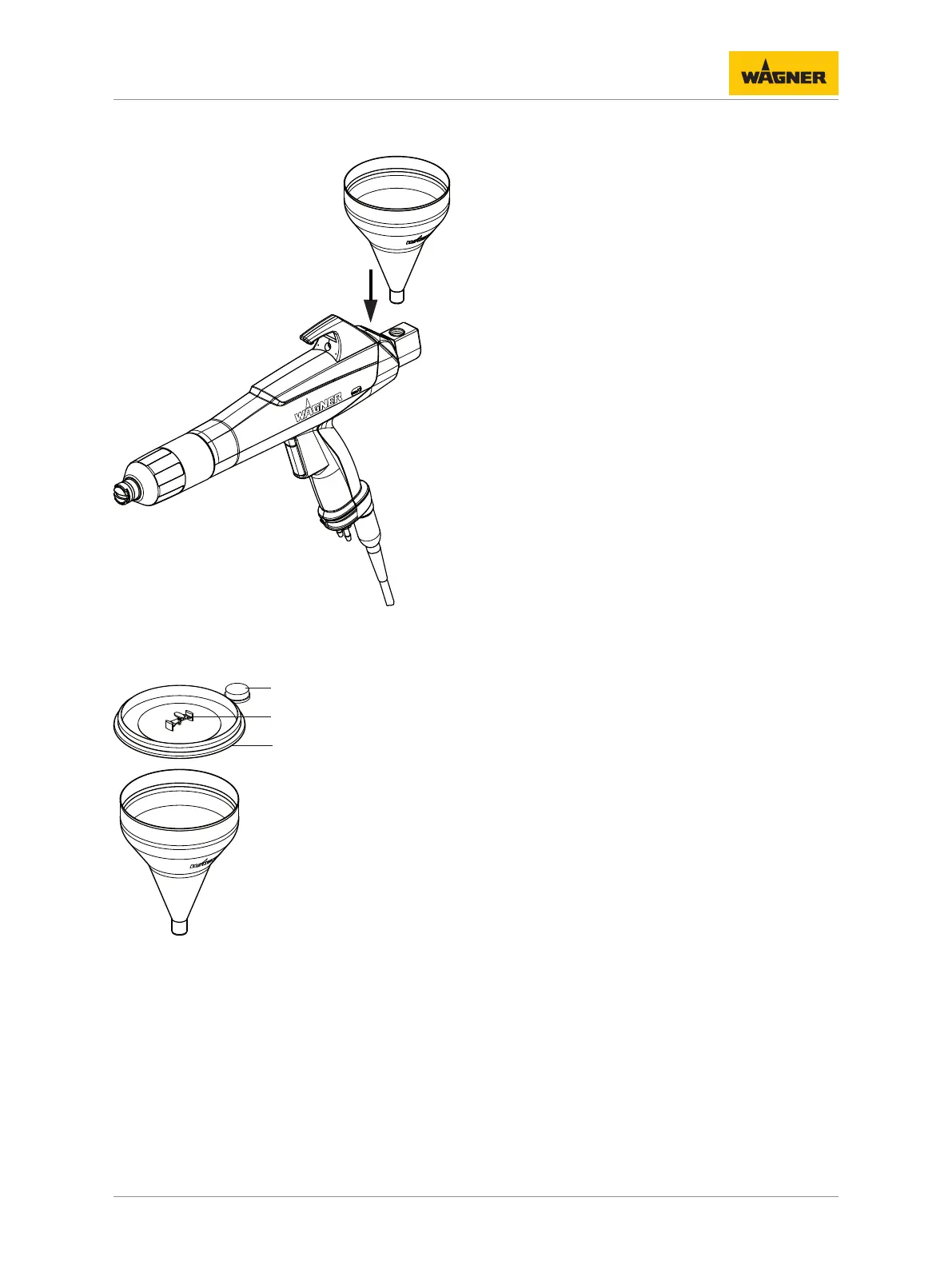

WAGNER PEM-X1 - Connecting the Spray Gun

Operating manual Manual powder spray gun PEM-X1
6 Assembly and Commissioning
24 Order number 2326020 | Edition 10/2022
6.5 CONNECTING THE MANUAL GUN
P_03824
I
O
1
2
3
4
6
5
8
7
1 Manual powder spray gun 5 Dosing air hose (blue)
2 Electrical Connection Cable 6 Atomizing air hose (black)
3 Control unit 7 Powder injector
4 Feed air hose (red) 8 Powder feed hose (transparent)
1. Switch off the high-voltage generation on the control unit.
2. Before connecting the manual gun, check that all components, such as the nozzle
system and union nut, are correctly fitted.
3. Connect the manual gun's electrical cable to the control unit.
4. Connect the powder feed hose to the manual gun and to the powder injector.
5. Connect the atomizing air hose to the manual gun and to the control unit.
