Operating manual Powder Cup Gun PEM-X1 CG
8 Cleaning and Maintenance
36 Order number 2326960 | Edition 10/2022

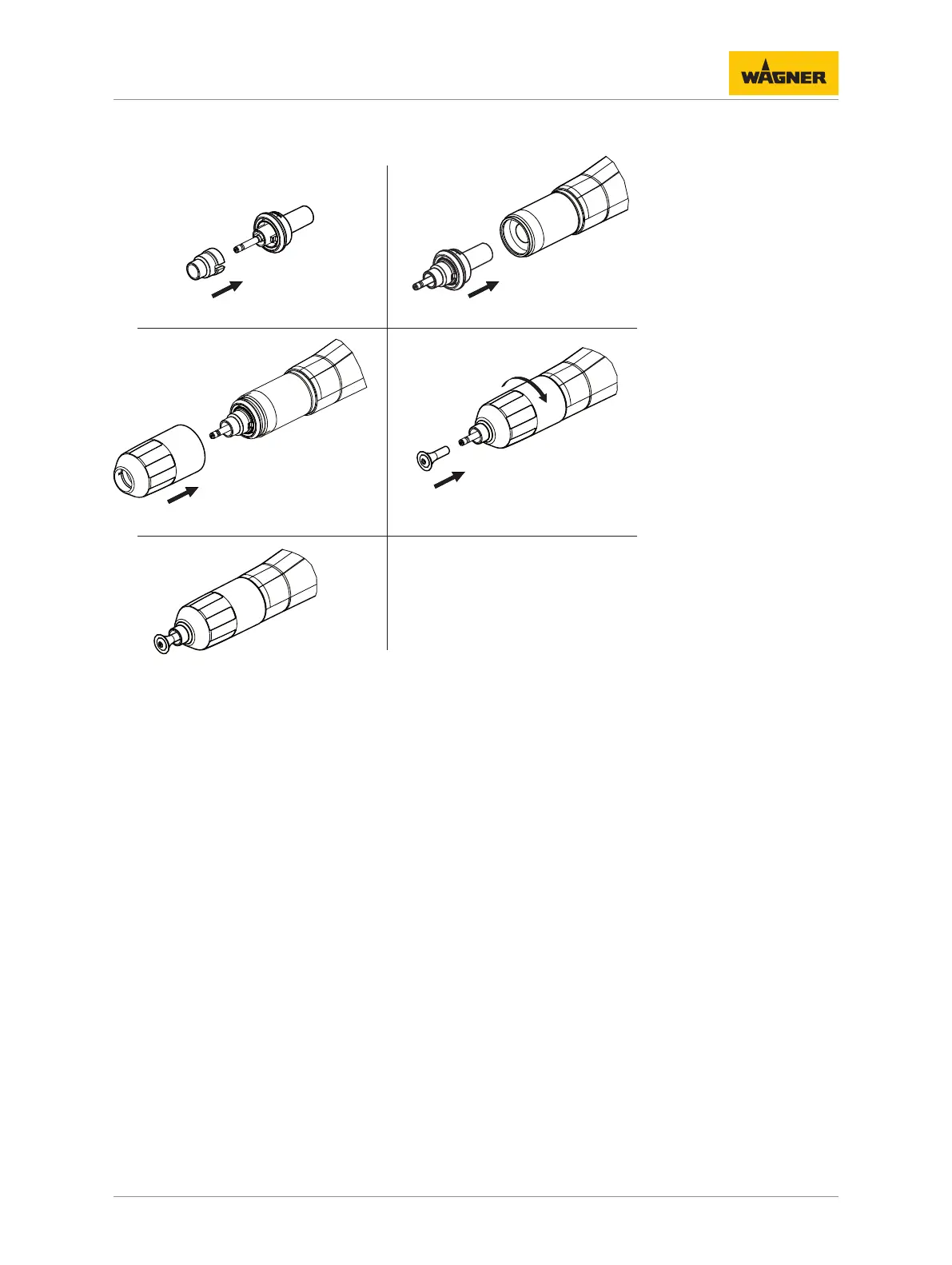

8.5.2 Fitting the Round Jet Nozzle
1. Before inserting the electrode holder, the spring contact of the gun body and contact
surface of the electrode holder should be checked.
The spring contact must be clean and move easily, the gun body must also be clean
and free of powder deposits.
2. Attach deflector cone sleeve onto electrode holder.
3. Insert electrode holder into gun housing.
4. Slide union nut onto gun housing.
5. Screw union nut onto gun housing (hand-tight).
6. Slide deflector cone over deflector cone sleeve.
8.6 REPLACING THE PROTECTIVE WEDGE
8.6.1 Removing the Protective Wedge
Note:
A wedge tool is available to prevent the protective wedge from being damaged when
dismantling and inserting.
The wedge tool has a removal side (E) and an attachment side (A). Use the right side for the
corresponding procedure!
You will find the necessary spare parts and wearing parts in Chapter Spare Parts [856] of
this operating manual.
